ENGINE OVERHAUL GASKET KIT

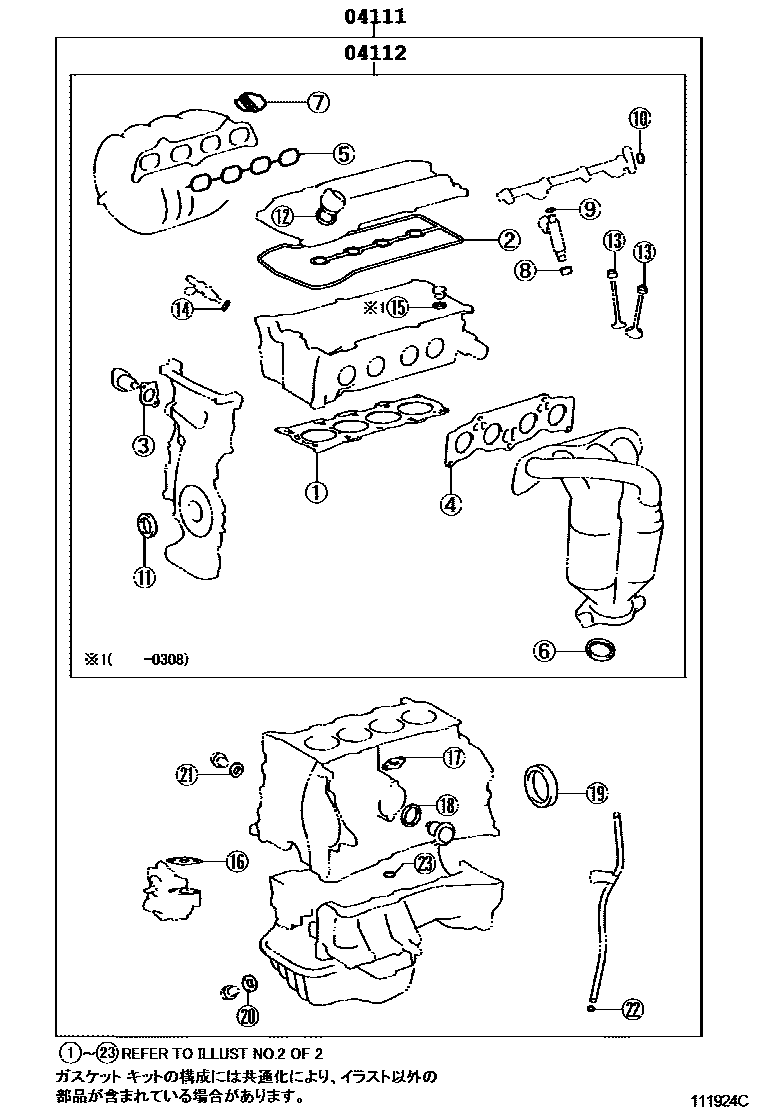

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-20160i200011-200304
sub04111-20161
main04111-20161i200304-200308
sub04111-20441
main04111-20610i200308
main04111-28100i200011-200104
sub04111-28101
main04111-28101i200104-200211
sub04111-28102
main04111-28102i200211-200212
sub04111-28103
main04111-28103i200212-200304
sub04111-28104
main04111-28104i200304-200308
main04111-28190i200308-200508
sub04111-28191
main04111-28193i200511-200705
sub04111-28930
main04111-28511i200508-200511
sub04111-28512
04112GASKET KIT, ENGINE VALVE GRIND
main04112-20150i200011-200304
sub04112-20151
main04112-20151i200304-200308
sub04112-20401
main04112-20530i200308
main04112-28057i200508-200511
sub04112-28058
main04112-28100i200011-200104
sub04112-28101
main04112-28101i200104-200211
sub04112-28102
main04112-28102i200211-200212
sub04112-28103
main04112-28103i200212-200304
sub04112-28104
main04112-28104i200304-200308
main04112-28190i200308-200508
sub04112-28192
main04112-28192i200511-200705
sub04112-28193

2 parts on this diagram · 6 diagrams in section
