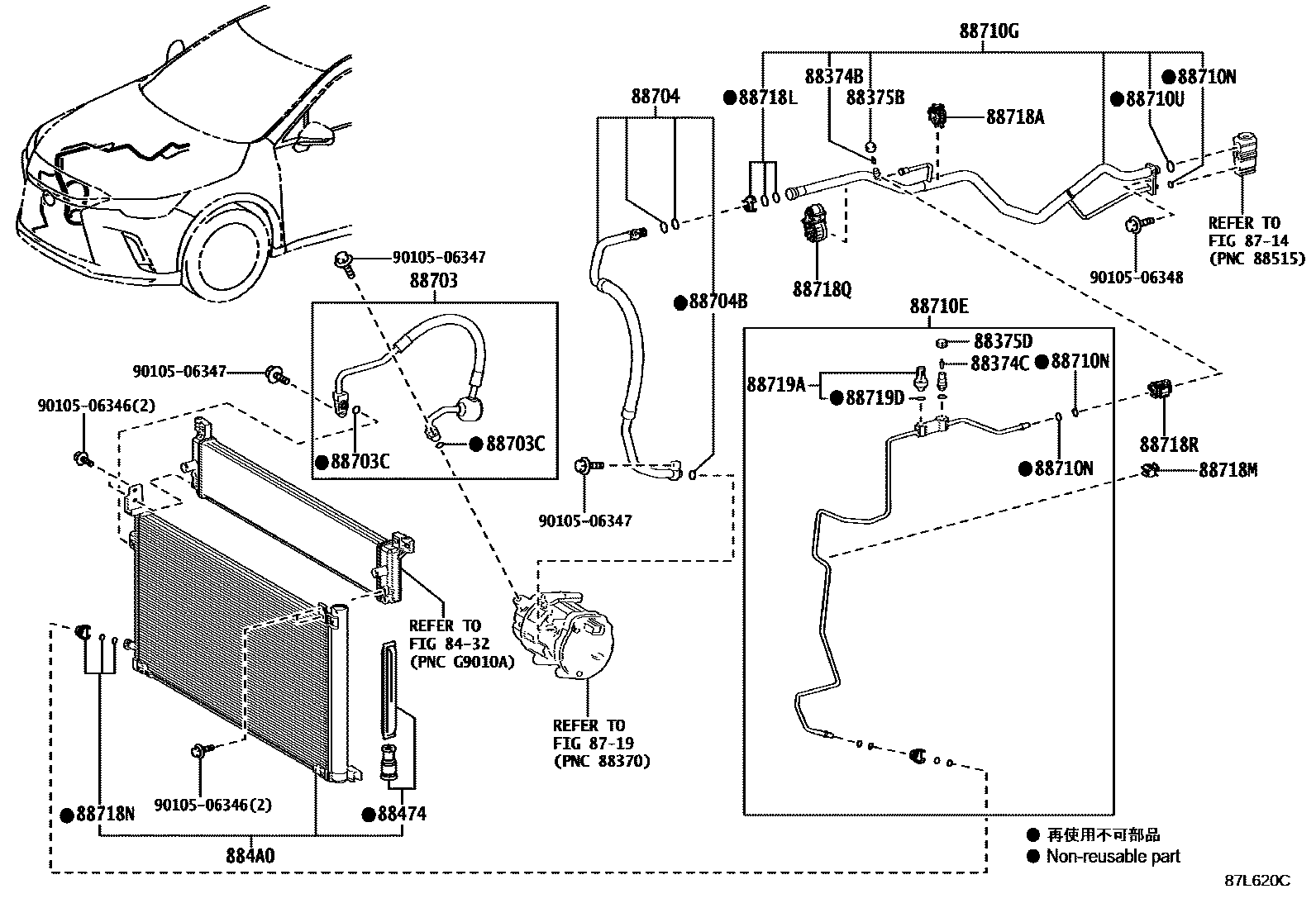

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAALH10,15,TALA1#,TALH17202211

88374CVALVE, SERVICE, NO.2

main88374-30010iAALH10,15,TALA1#,TALH17202211

main88374-74010iAALH16202211

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iAALH10,15,TALA1#,TALH17202211

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iAALH16202211

main88375-30320iAALH10,15,TALA1#,TALH17202211

88474DRYER, COOLER

main88474-12010iTALA1#,TALH17202211

main88474-47020iAALH10,15202211

884A0CONDENSER ASSY, COOLER

main884A0-48010iAALH10,15202211

main884A0-48020iTALA1#202211

main884A0-48040iTALH17202211

main884A0-48070iAALH16202211

88703HOSE SUB-ASSY, DISCHARGE

main88703-48370iAALH16202211

main88711-48270iTALA1#202211

main88711-48280iAALH10,15202211

main88711-48290iTALH17202211

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iAALH1#,TALA1#,TALH17202211

88704HOSE SUB-ASSY, SUCTION

main88704-48340iTALA1#202211

main88704-48350iAALH10,15202211

main88704-48360iTALH17202211

main88704-48370iAALH16202211

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iAALH10,15,TALA1#,TALH17202211

main90099-14157iAALH16202211

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-48860iTALA1#,TALH17202211

main88710-48A00iAALH10,15202211

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-48A10iTALA1#202211

main88710-48A80iTALH17202211

main88710-48B50iAALH10,15202211

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iAALH10,15,TALA1#,TALH17202211

88710URING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14121iAALH10,15,TALA1#,TALH17202211

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-33540iAALH10,15,TALA1#,TALH17202211

88718LCLAMP, PIPING

main88718-48880iAALH16202211

main88718-52280iAALH10,15,TALA1#,TALH17202211

88718MCLAMP, PIPING

main88718-2F110iAALH10,15,TALA1#,TALH17202211

88718NCLAMP, PIPING

main88718-1E150iAALH10,15,TALA1#,TALH17202211

main88718-48830iAALH16202211

88718QCLAMP, PIPING

main88718-42120iAALH10,15,TALA1#,TALH17202211

main88718-48870iAALH16202211

88718RCLAMP, PIPING

main88718-2D150iAALH10,15,TALA1#,TALH17202211

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAALH1#,TALA1#,TALH17202211

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iAALH1#,TALA1#,TALH17202211

9010506346

main90105-06346

9010506347

main90105-06347

9010506348

main90105-06348

28 parts on this diagram · 6 diagrams in section
