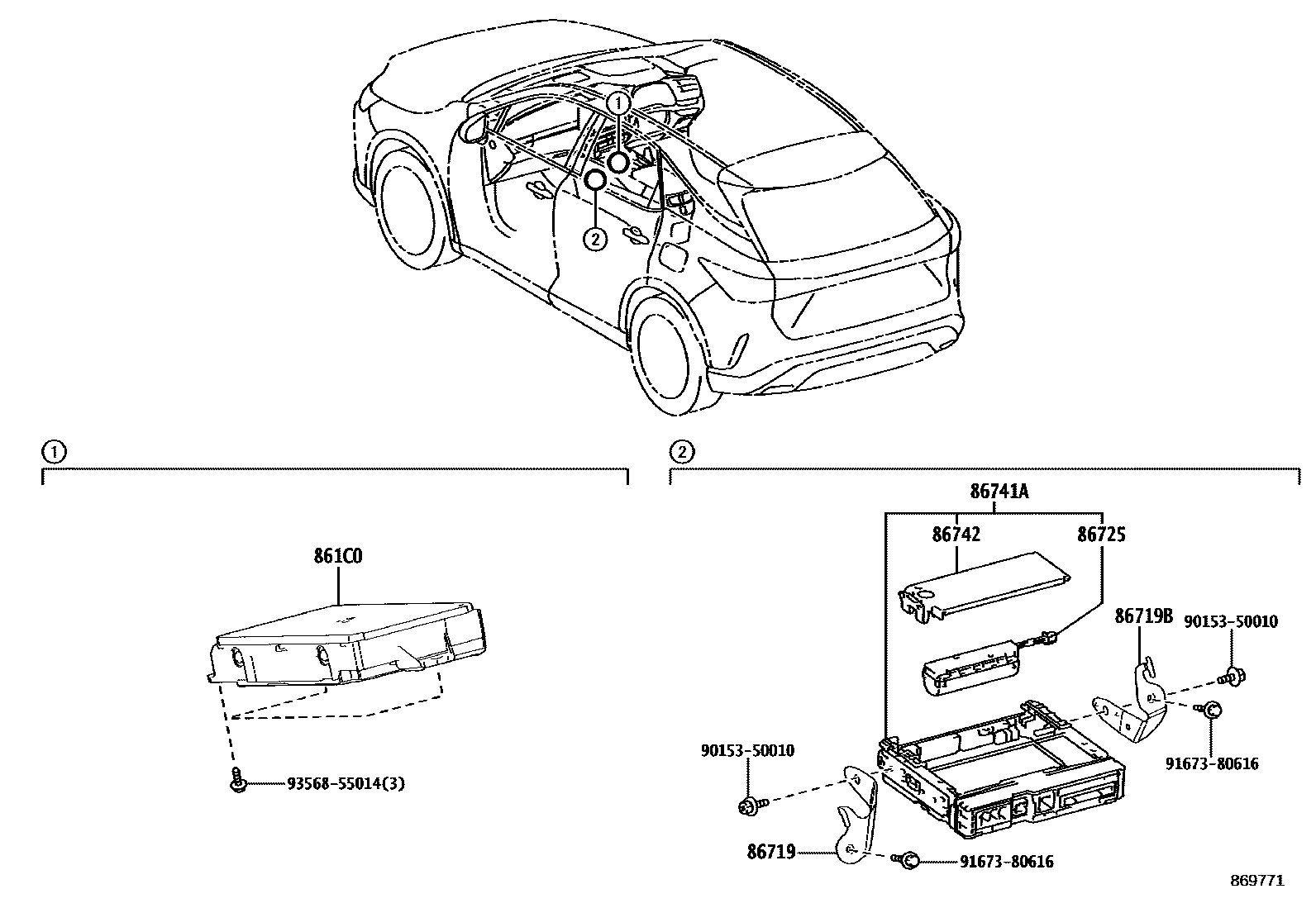

TELEPHONE & MAYDAY

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-48110iAALH1#,TALA1#,TALH17202211-202308

sub861C0-48111

main861C0-58040iAALH1#,TALA1#,TALH17202308

86719BRACKET, TELEPHONE

main86719-48240iAALH1#,TALA1#,TALH17202211

86719BBRACKET, TELEPHONE NO.2

main86719-48250iAALH1#,TALA1#,TALH17202211

86725BATTERY, MOBILEPHONE

main86725-78020iAALH1#,TALA1#,TALH17202211

86741ATRANSCEIVER, TELEMATICS

main86741-42220iAALH1#,TALA1#,TALH17202211-202402

main86741-42221iAALH1#,TALA1#,TALH17202403

86742COVER, TRANSCEIVER

main86742-26010iAALH1#,TALA1#,TALH17202211

9015350010

main90153-50010

9167380616

main91673-80616

9356855014

main93568-55014

9 parts on this diagram · 1 diagram in section
