DC/DC CONVERTER & CHARGER(BEV OR FCEV)

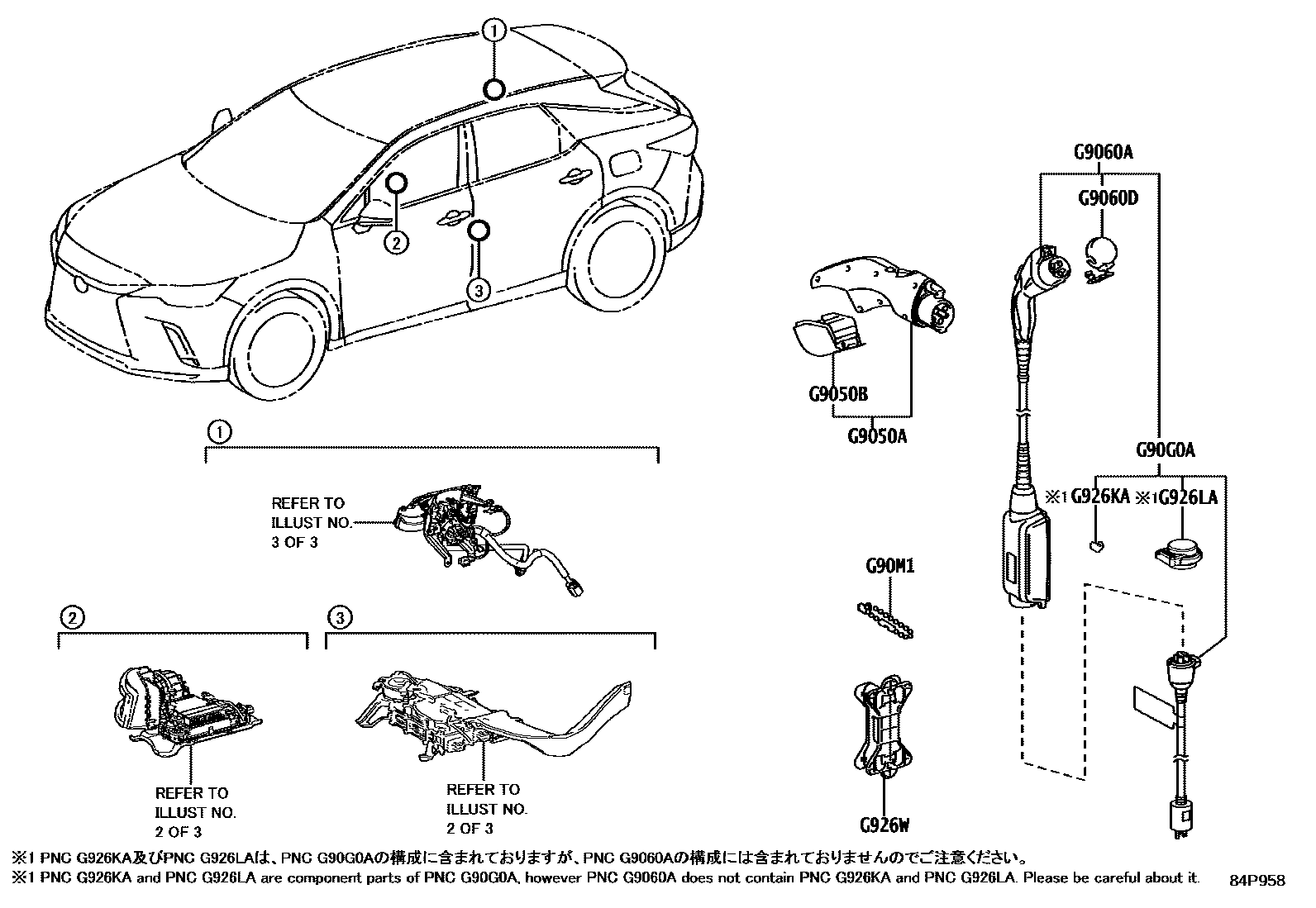

Parts diagram

G9050ACONNECTOR, VEHICLE POWER

mainG905047012i202211

G9050BCOVER, CONNECTOR

main82821-47280i202211

G9060ACABLE ASSY, ELECTRIC VEHICLE CHARGER

mainG906076020supersedes G906076010i202211

G9060DCOVER, EV CHARGER CABLE

main82821-47650i202211

G90G0APLUG ASSY, CABLE EV CHARGER

mainG90G047070i202211

mainG90G047080i202211

G90M1KEY SET, PLUG CABLE EV CHARGER

mainG90M147010i202211

G926KAKEY, PLUG CABLE EV CHARGER

mainG926K47020i202211

G926LACOVER, PLUG CABLE EV CHARGER

mainG926L47020i202211

G926WHOLDER, CABLE EV CHARGER

mainG926W47010i202211

9 parts on this diagram · 3 diagrams in section
