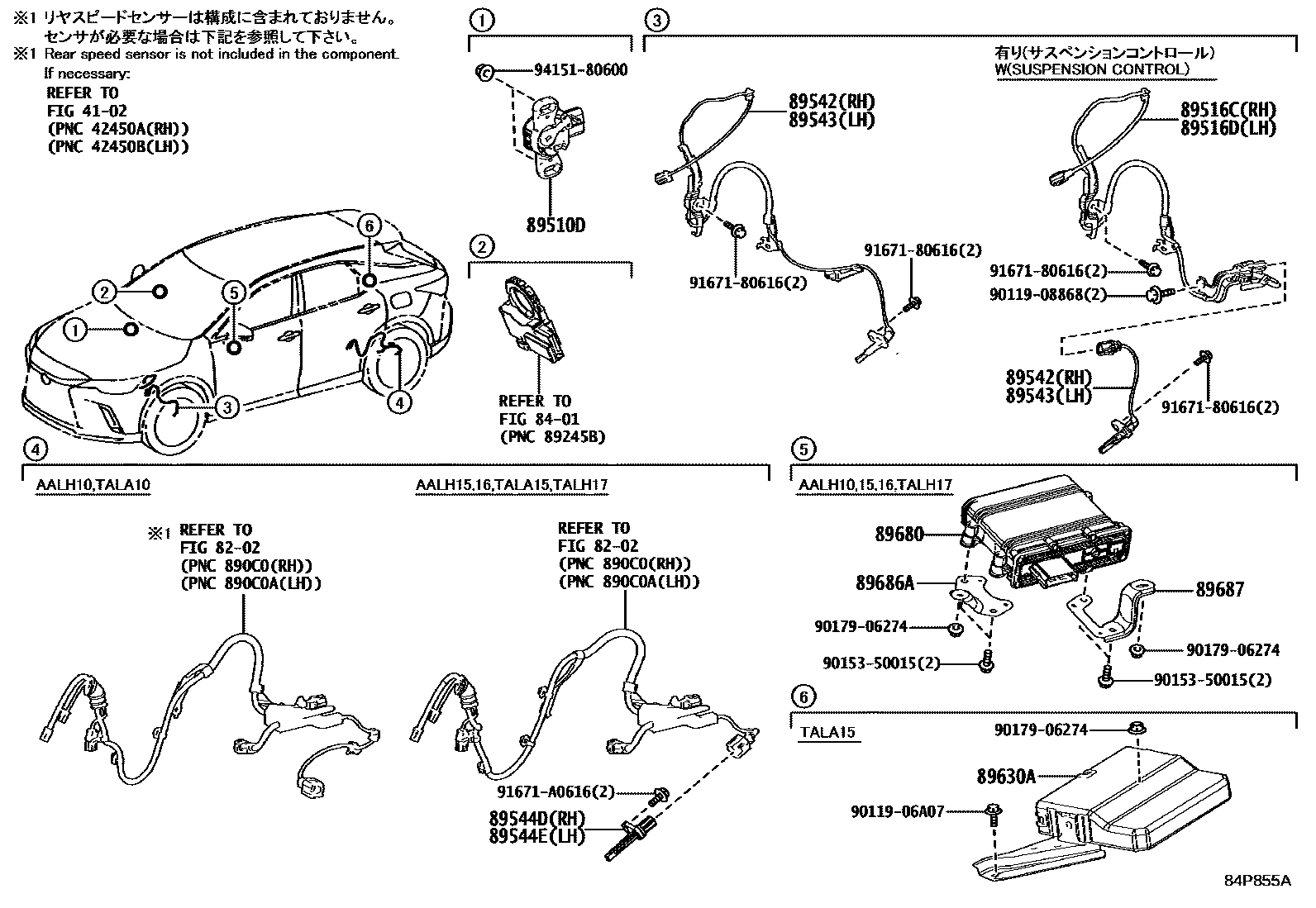

ABS & VSC

4102

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iAALH1#,TALH17202211

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-48211iAALH16,TALH17202211

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-48221iAALH16,TALH17202211

89542SENSOR, SPEED, FRONT RH

main89542-48091iAALH15,TALA15202211-202410

main89542-78040iAALH16,TALH17202211

89543SENSOR, SPEED, FRONT LH

main89543-48091iAALH15,TALA15202211-202410

main89543-78040iAALH16,TALH17202211

89544DSENSOR, SKID CONTROL, REAR RH

main89544-48050iAALH15,16,TALA15,TALH17202211

89544ESENSOR, SKID CONTROL, REAR LH

main89544-48050iAALH15,16,TALA15,TALH17202211

89630ACOMPUTER ASSY, 4WD

main89630-48100iTALA15202211-202302

main89630-48101iTALA15202302

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48020iAALH10,15,TALH17202211

main89680-48030iAALH10,15,TALH17202211-202410

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-48100iAALH1#,TALH17202211

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-48060iAALH1#,TALH17202211

9011906A07

main90119-06A07

9011908868

main90119-08868

9015350015

main90153-50015

9017906274

main90179-06274

9167180616

main91671-80616

91671A0616

main91671-A0616

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
