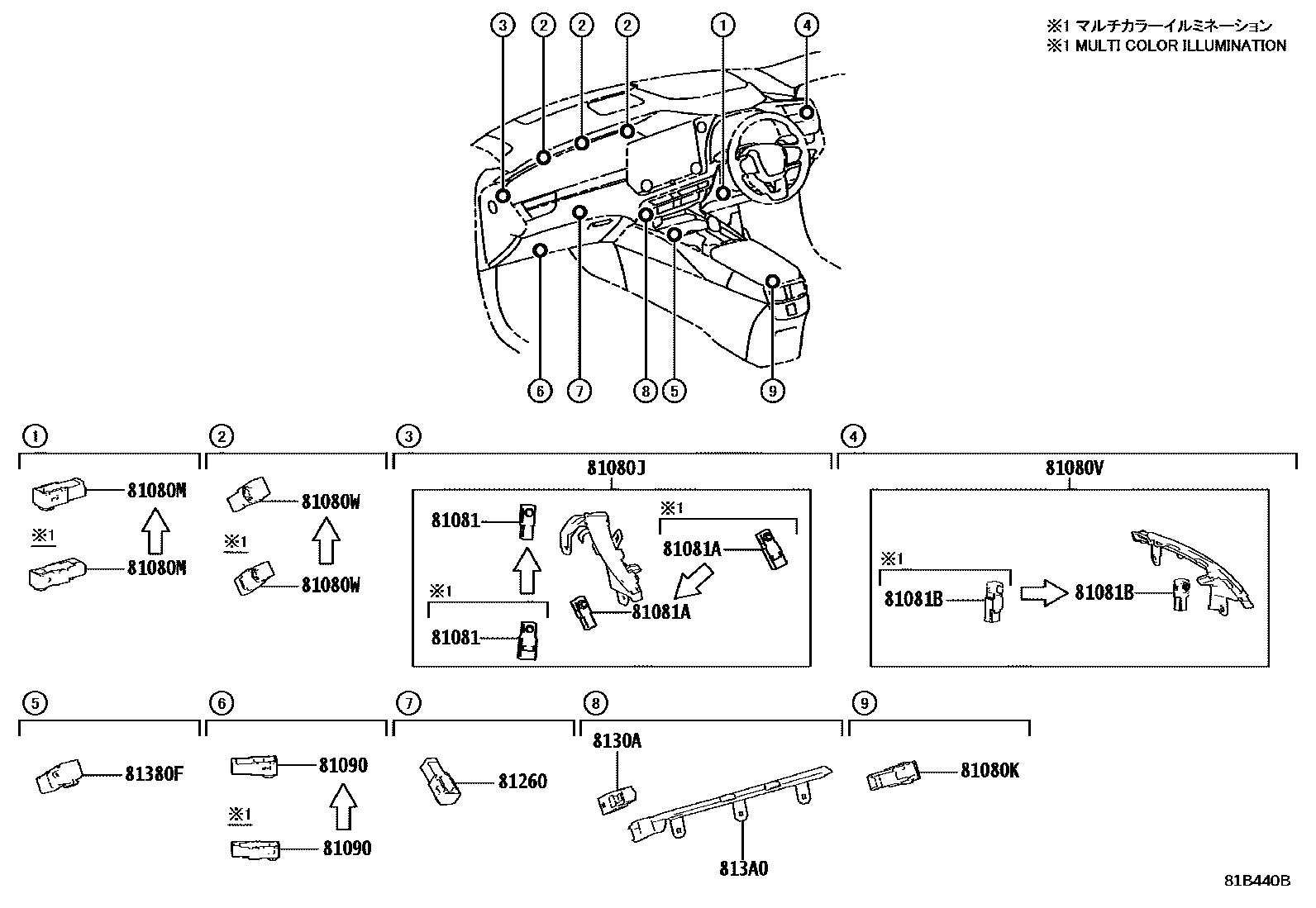

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81081BLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81260LAMP ASSY, GLOVE BOX
8130ALAMP SUB-ASSY, INSTRUMENT PANEL, NO.1
81380FLAMP ASSY, CONSOLE BOX
813A0LAMP ASSY, INSTRUMENT PANEL
13 parts on this diagram · 3 diagrams in section
