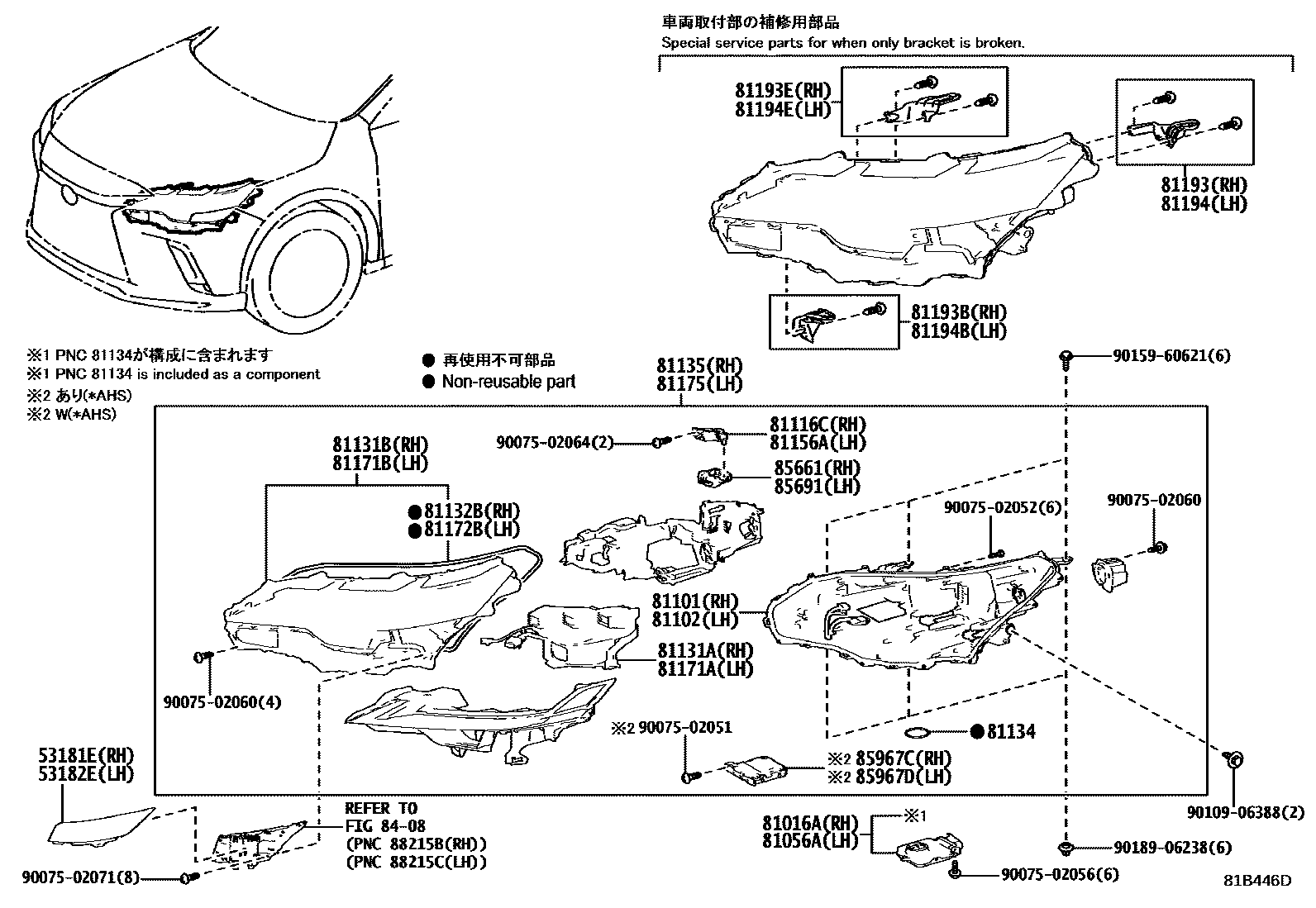

HEADLAMP
53181ECOVER, HEADLAMP, RH
53182ECOVER, HEADLAMP, LH
81016ACOMPUTER SUB-ASSY, HEADLAMP, RH
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
81116CBRACKET, HEADLAMP, RH
81131AUNIT, HEADLAMP, RH
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81156ABRACKET, HEADLAMP, LH
81171AUNIT, HEADLAMP, LH
81171BHEAD LAMP LENS, LH
81172BGASKET, HEADLAMP LENS
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
8408
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502056
main90075-02056
9007502060
main90075-02060
9007502064
main90075-02064
9007502071
main90075-02071
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
37 parts on this diagram · 1 diagram in section
