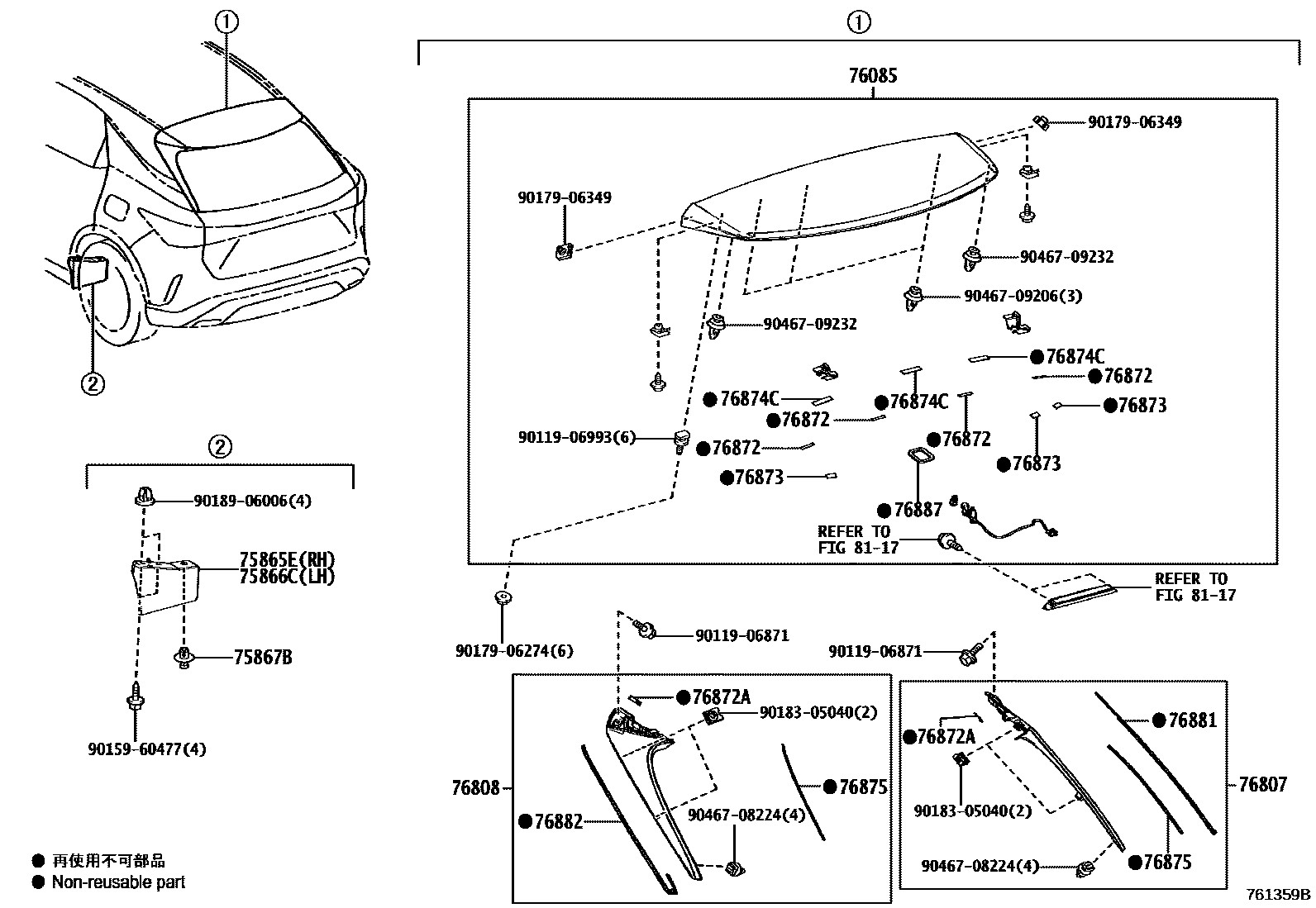

MUDGUARD & SPOILER
75865EPROTECTOR, ROCKER PANEL MOULDING, RH
75866CRETAINER, ROCKER PANEL MOULDING, LH
75867BCLIP, ROCKER PANEL MOULDING
76085SPOILER SUB-ASSY, REAR
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC IRIDIUM,1L2
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC CHROME,223
RED MC.CS.,3R1
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
HEAT BLUE CONTRAST LAYERI,8X1
76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH
76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874CPROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76887SEAL, REAR SPOILER
8117
9011906871
main90119-06871
9011906993
main90119-06993
9015960477
main90159-60477
9017906274
main90179-06274
9017906349
main90179-06349
9018305040
main90183-05040
9018906006
main90189-06006
9046708224
main90467-08224
9046709206
main90467-09206
9046709232
main90467-09232
25 parts on this diagram · 1 diagram in section
