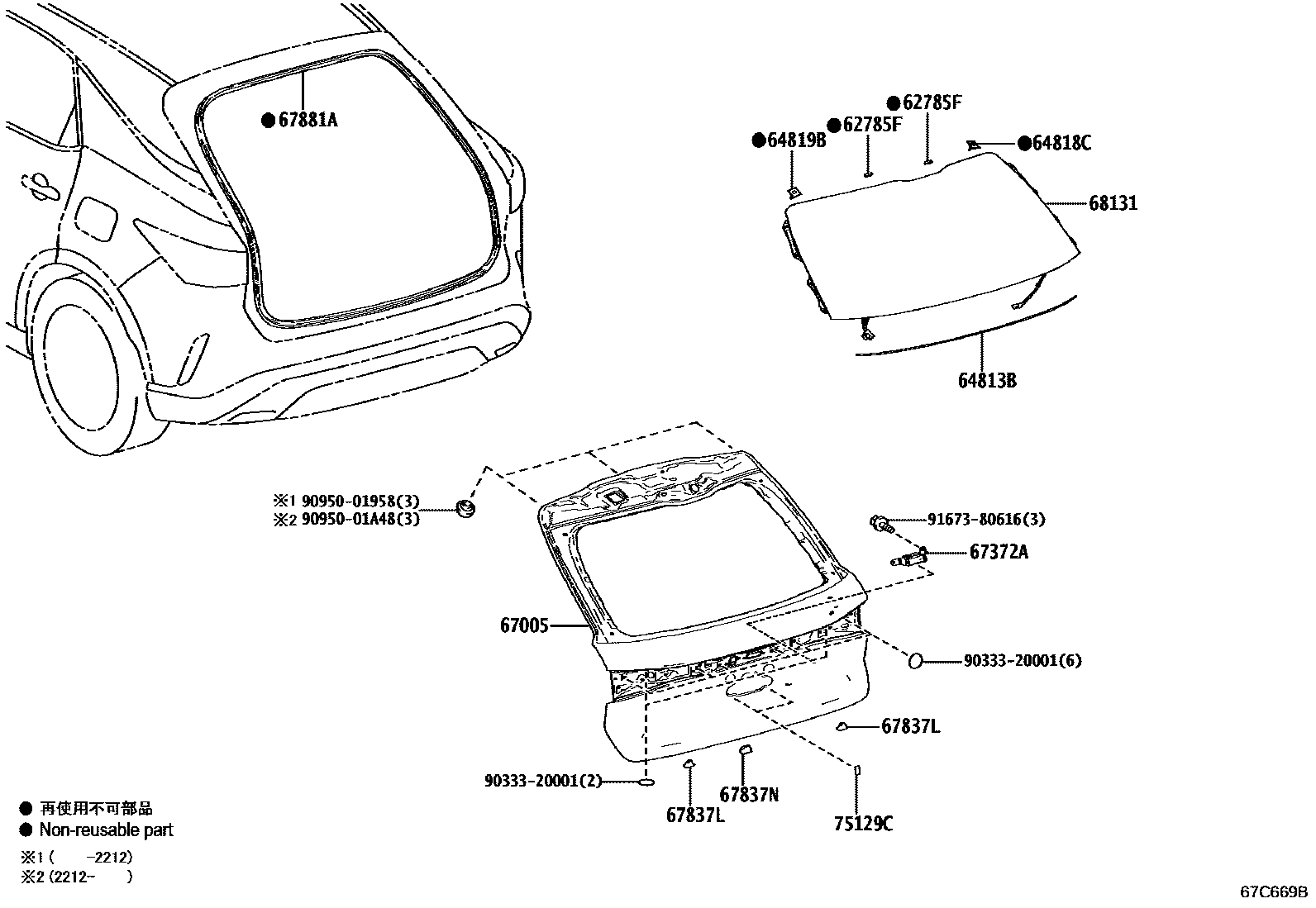

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

62785FSPACER, BACK DOOR GLASS

main62785-60030iAALH1#,TALA1#,TALH17¥200202211

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iAALH1#,TALA1#,TALH17¥870202211

L=1172

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-48100iAALH1#,TALA1#,TALH17¥230202211

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-48090iAALH1#,TALA1#,TALH17¥230202211

67005PANEL SUB-ASSY, BACK DOOR

main67005-48B60iAALH1#,TALA1#,TALH17¥60,900202211

67372AWEIGHT, BACK DOOR

main67372-48090iAALH1#,TALA1#,TALH17¥2,790202211

67837LSEAL, DOOR DUST PROOF

main67837-48110iAALH1#,TALA1#,TALH17¥80202211

67837NSEAL, BACK DOOR DUST PROOF

main67837-48120iAALH1#,TALA1#,TALH17¥80202211

67881AWEATHERSTRIP, BACK DOOR

main67881-48110iAALH1#,TALA1#,TALH17¥8,100202211

68131GLASS, BACK DOOR

main68105-48926iAALH1#,TALA1#,TALH17¥63,000202211

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iAALH1#,TALA1#,TALH17¥190202211

9033320001

main90333-20001¥70

9095001958

main90950-01958¥120

9095001A48

main90950-01A48¥100

9167380616

main91673-80616¥60

15 parts on this diagram · 2 diagrams in section
