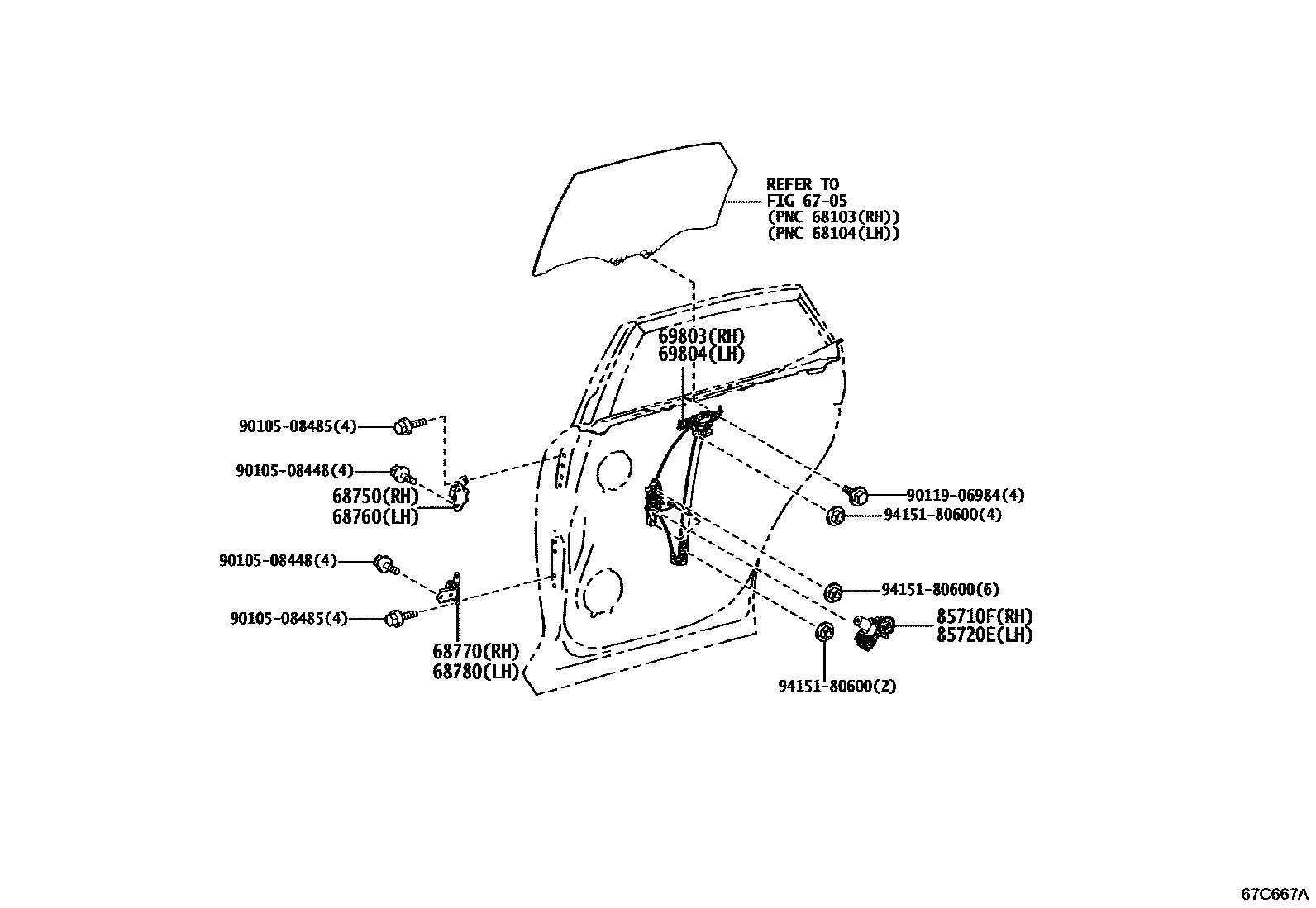

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iAALH1#,TALA1#,TALH17¥1,850202211

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iAALH1#,TALA1#,TALH17¥1,850202211

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iAALH1#,TALA1#,TALH17¥2,030202211

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iAALH1#,TALA1#,TALH17¥2,030202211

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-48070iAALH1#,TALA1#,TALH17¥4,560202211

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-48070iAALH1#,TALA1#,TALH17¥4,560202211

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-48170iAALH1#,TALA1#,TALH17¥12,600202211

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-48180iAALH1#,TALA1#,TALH17¥12,600202211

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9415180600

main94151-80600¥60

13 parts on this diagram · 1 diagram in section
