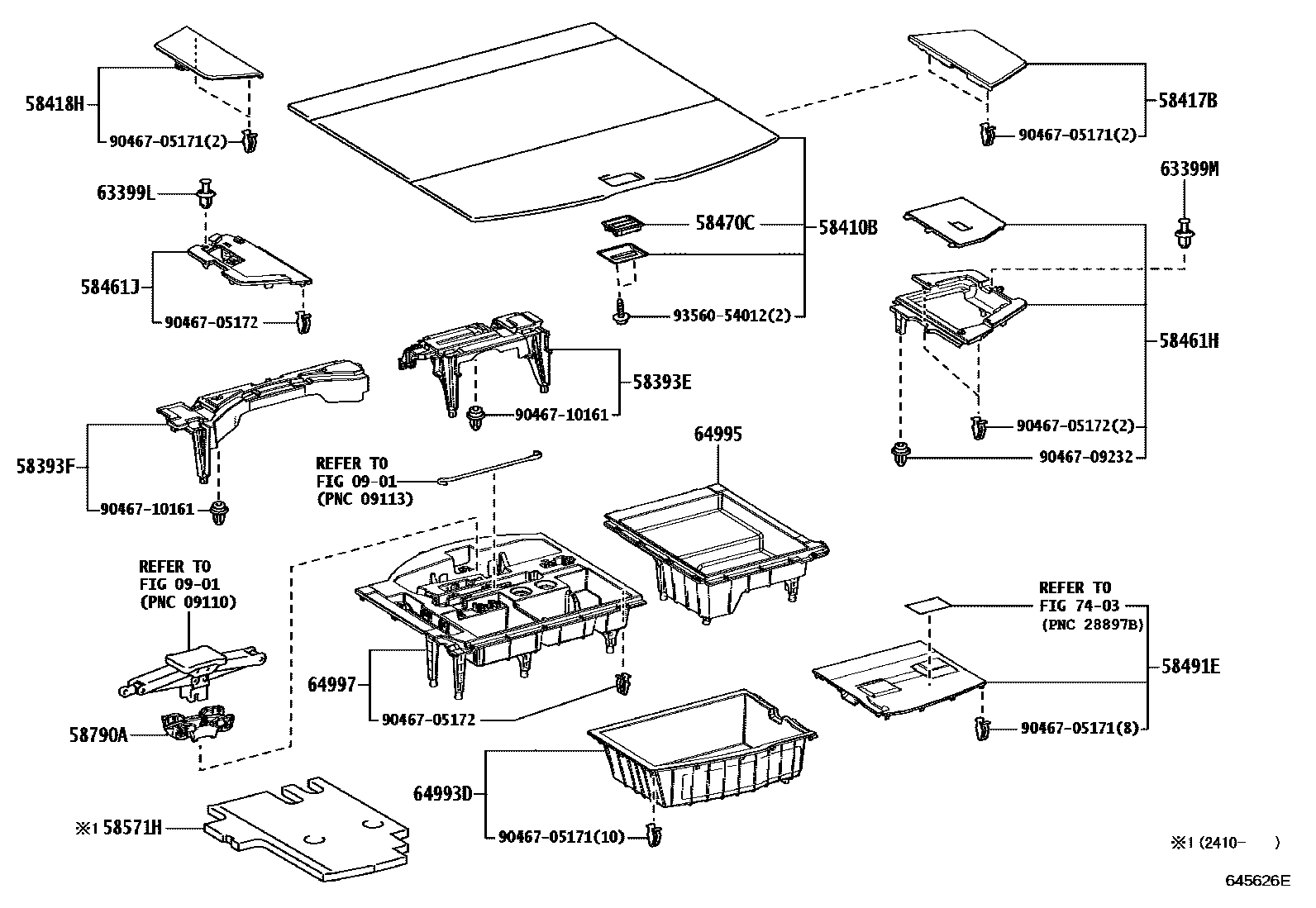

DECK BOARD & DECK TRIM COVER

0001 1��������� 0002 1��������� 0003 1��������� 0004 1����������� 0005 1�����������

0901

58393ESUPPORT, DECK BOARD SET

main58393-48020iAALH1#,TALA1#,TALH17202211

58393FSUPPORT, DECK BOARD SET, LH

main58393-48030iAALH1#,TALA1#,TALH17202211

58410BBOARD ASSY, DECK

main58410-48220-C1iTALA15202211

BLACK,TRIM0#,2#,3#

58417BBOARD, REAR FLOOR, REAR RH

main58417-48080-C0iTALA15202211

BLACK,TRIM0#,1#,2#,4#

main58417-48090-C0iAALH16202211

BLACK,TRIM0#,2#,3#,4#

58418HBOARD, REAR FLOOR, REAR LH

main58418-48130-C0iAALH16202211

BLACK,TRIM0#,2#,3#,4#

58461HCOVER, JUNCTION BLOCK SERVICE

main58461-48010iAALH1#,TALH17202211

58461JCOVER, JUNCTION BLOCK SERVICE, LH

main58461-48020iAALH1#,TALA1#,TALH17202211

58470CHANDLE ASSY, DECK BOARD

main58470-50010-C1iTALA15202211

BLACK,TRIM0#,2#,3#

58491EPLATE, BATTERY SERVICE COVER

main58491-48020iAALH1#,TALH17202211

58571HCARPET, REAR FLOOR

main58571-48060iAALH10,15,TALA1#,TALH17202410

main58571-48070iAALH16202410

58790ACARRIER ASSY, JACK

main58790-48080iAALH1#,TALA1#,TALH17202211

63399LCLIP, JUNCTION BLOCK SERVICE COVER, LH

main63399-78010iAALH1#,TALA1#,TALH17202211

63399MCLIP, JUNCTION BLOCK SERVISE COVER, RH

main63399-78010iAALH1#,TALH17202211

64993BOX, DECK FLOOR, REAR

main64993-48180iTALA1#202211

64993DBOX, DECK FLOOR, REAR LH

main64993-48200iAALH1#,TALA1#,TALH17202211-202410

main64993-48201iAALH1#,TALA1#,TALH17202410

64995BOX, DECK FLOOR, RH

main64995-48040iAALH10,15,TALA1#,TALH17202211

main64995-48060iAALH16202211

64997BOX, DECK FLOOR, LH

main64997-48060iAALH1#,TALA1#,TALH17202211

7403

9046705171

main90467-05171

9046705172

main90467-05172

9046709232

main90467-09232

9046710161

main90467-10161

9356054012

main93560-54012

24 parts on this diagram · 5 diagrams in section
