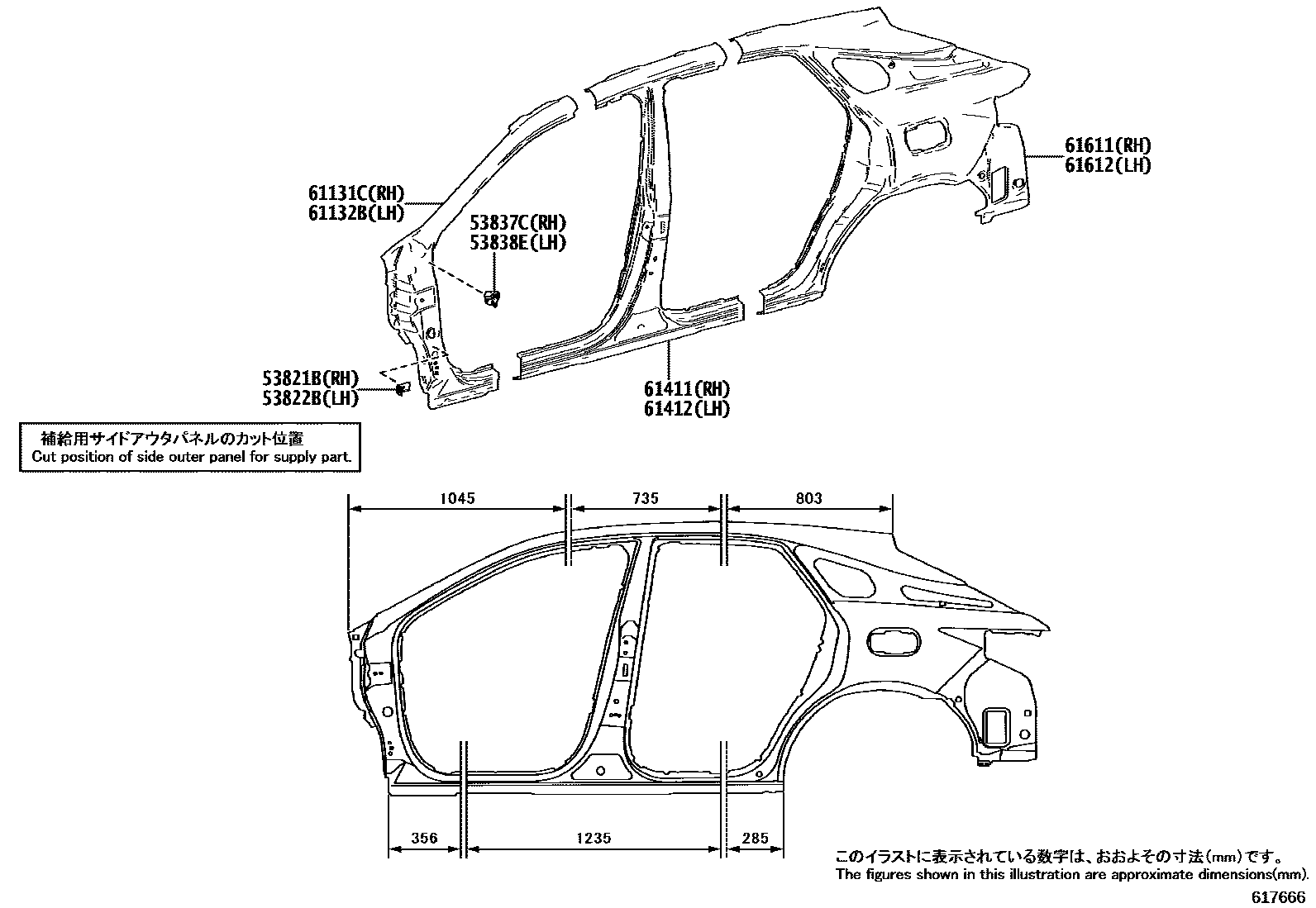

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48110iAALH1#,TALA1#,TALH17202211

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48110iAALH1#,TALA1#,TALH17202211

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-48080iAALH1#,TALA1#,TALH17202211

53838EBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-48080iAALH1#,TALA1#,TALH17202211

61131CPILLAR, FRONT BODY, OUTER RH

main61101-48080iAALH1#,TALA1#,TALH17202211

61132BPILLAR, FRONT BODY, OUTER LH

main61102-48110iAALH1#,TALA1#,TALH17202211

61411PANEL, ROCKER, OUTER RH

main61311-48100iAALH1#,TALA1#,TALH17202211

61412PANEL, ROCKER, OUTER LH

main61312-48100iAALH1#,TALA1#,TALH17202211

61611PANEL, QUARTER, RH

main61601-48100iAALH10,15,TALA1#,TALH17202211

main61601-48150iAALH16202211

61612PANEL, QUARTER, LH

main61602-48090iAALH1#,TALA1#,TALH17202211

10 parts on this diagram · 3 diagrams in section
