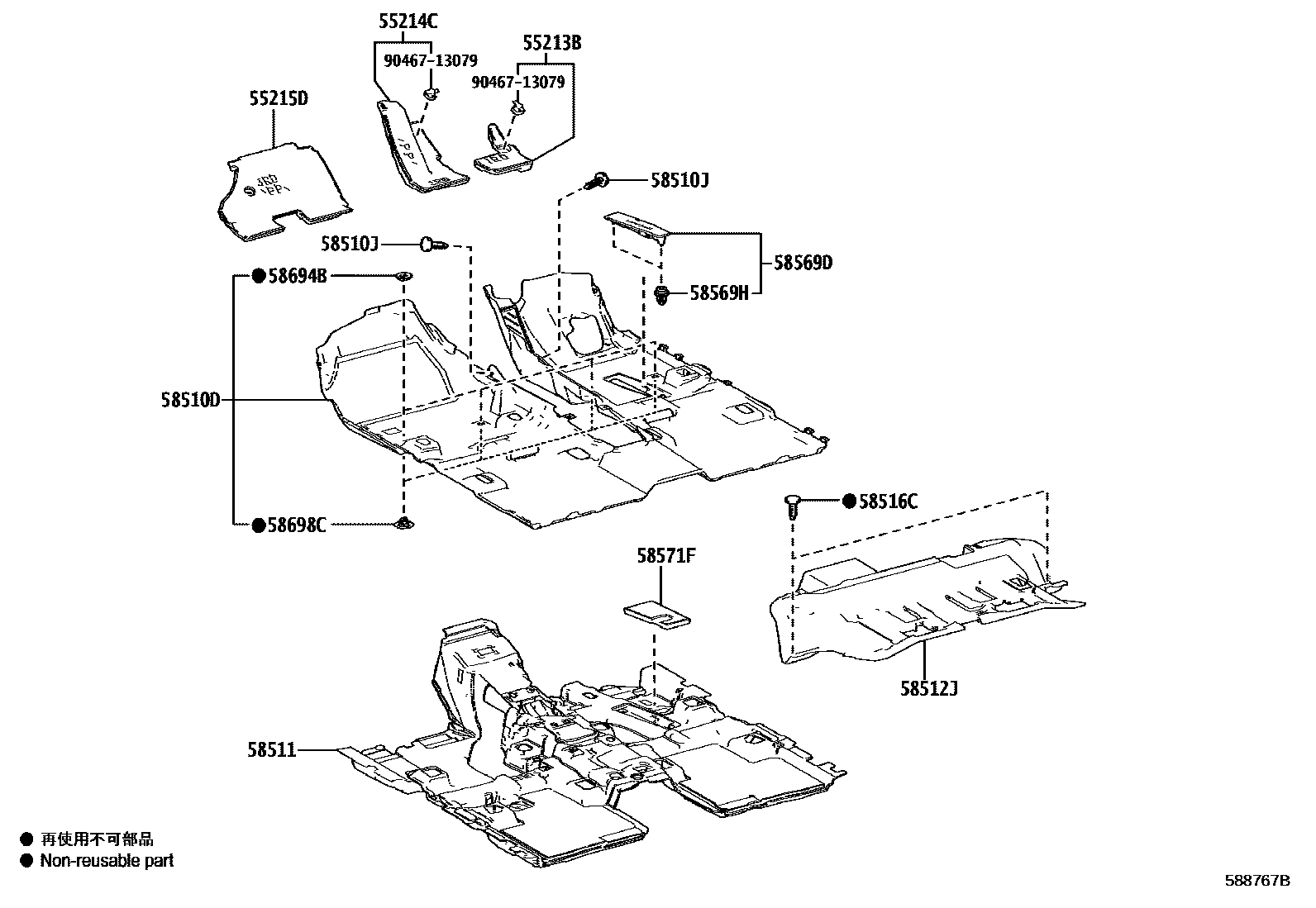

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,4#
58510JCLIP (FOR FLOOR CARPET)
58511MAT, FLOOR, FRONT
58512JMAT, FLOOR, NO.2
58516CCLIP(FOR FLOOR MAT)
58569DCOVER, FRONT FLOOR CAUTION PLATE
58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
58571FPAD, FRONT FLOOR, FRONT
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046713079
14 parts on this diagram · 5 diagrams in section
