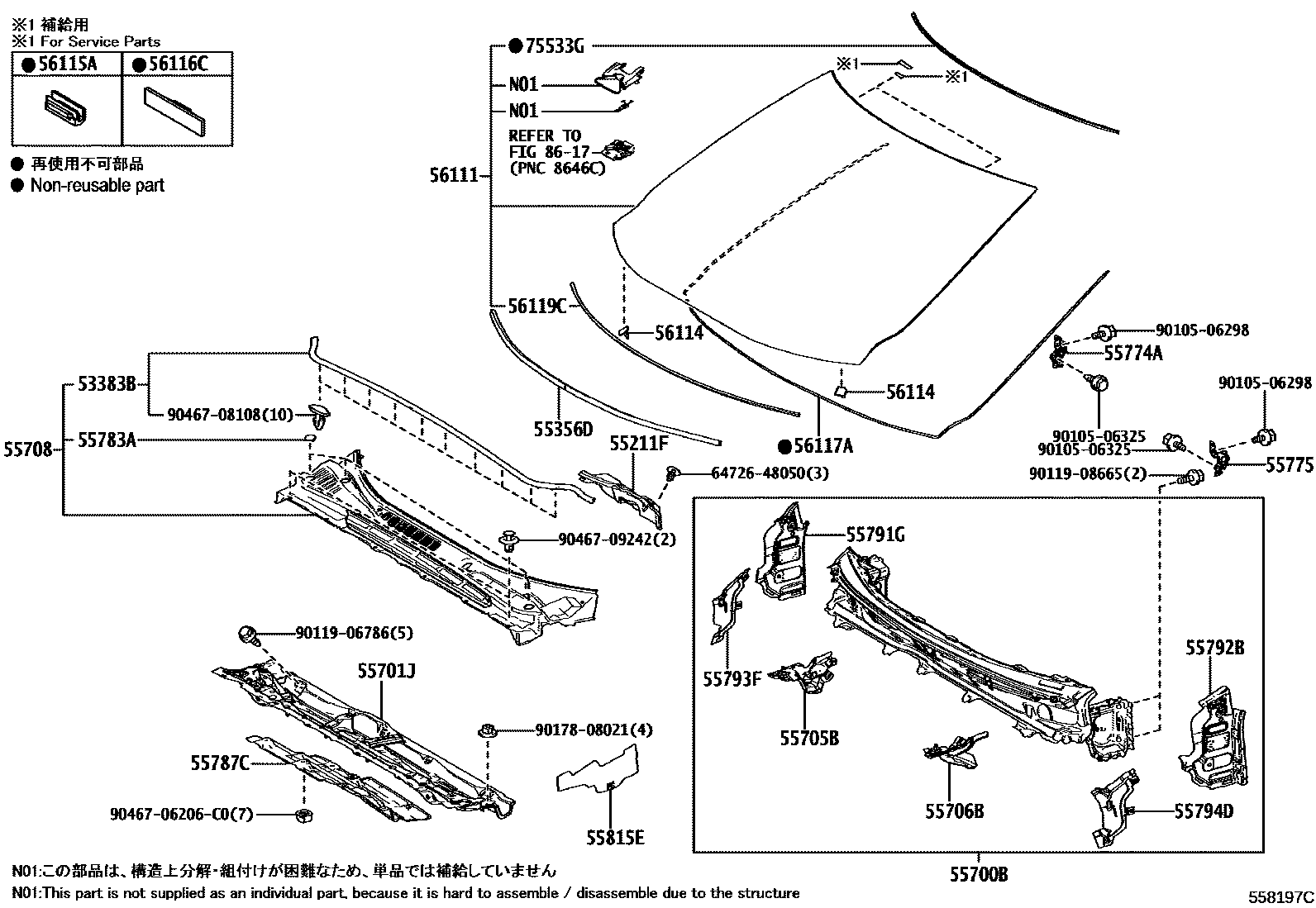

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211FCOVER, DASH PANEL INSULATOR
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55783APAD, COWL TOP SILENCER
55787CINSULATOR, COWL TOP PANEL, NO.1
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56119CSEAL, WINDSHIELD GLASS
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
6472648050PAD, HOUSING SPARE WHEEL SILENCER, FRONT
main64726-48050
9010506298
main90105-06298
9010506325
main90105-06325
9011906786
main90119-06786
9011908665
main90119-08665
9017808021
main90178-08021
9046706206C0
main90467-06206C0
9046708108
main90467-08108
9046709242
main90467-09242
34 parts on this diagram · 2 diagrams in section
