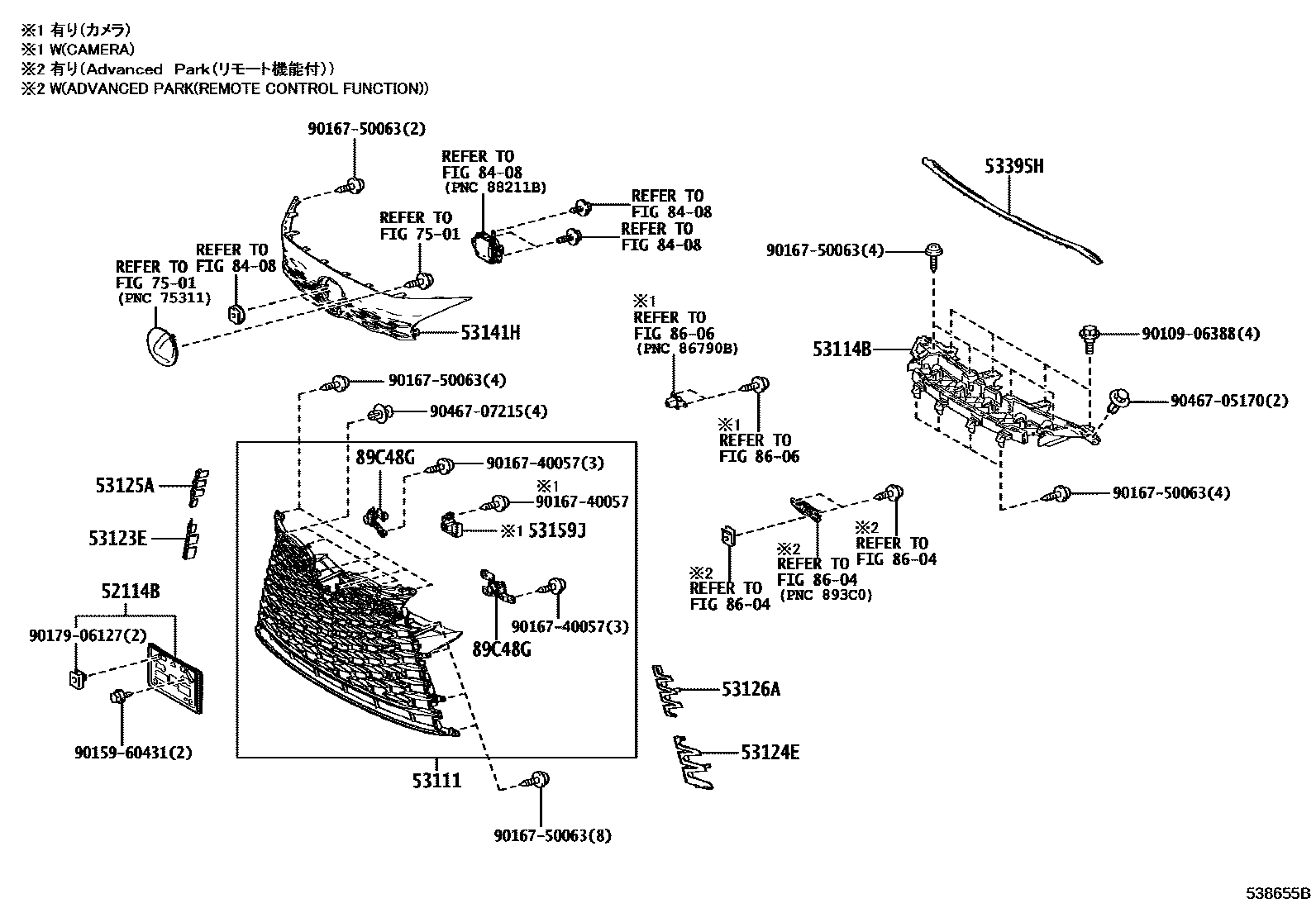

RADIATOR GRILLE

0001 1 0002 1F SPORT

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-48580iAALH1#,TALA1#202211

main52114-48650iTALA15202211

53111GRILLE, RADIATOR

main53101-48B70iAALH10,15,TALA1#202211-202410

main53101-48B90iAALH10,15,TALA1#202211

main53101-48C10iTALA15202211-202410

main53101-48C10iTALA15202211-202410

main53101-48C20iTALH17202410

main53101-48C20iTALH17202410

53114BGRILLE, RADIATOR, UPPER

main53114-48130iAALH1#,TALA1#,TALH17202211

53123EMOULDING, RADIATOR GRILLE, LOWER RH

main53123-48150iAALH1#,TALA1#202211

53124EMOULDING, RADIATOR GRILLE, LOWER LH

main53124-48150iAALH1#,TALA1#202211

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-48060iAALH1#,TALA1#202211

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53126-48060iAALH1#,TALA1#202211

53141HGARNISH, RADIATOR GRILLE

main53141-48150-A0iAALH10,15,TALA1#202211-202509

SONIC QUARTZ,085

main53141-48150-B0iAALH16202211-202409

SONIC TITANIUM,1J7

main53141-48150-B1iAALH10,15,TALA1#202211-202409

SONIC CHROME,1L1

main53141-48150-B2iAALH10,15,TALA1#202211-202409

SONIC IRIDIUM,1L2

main53141-48150-C0iAALH16202211-202409

GRAPHITE BLACK GF.,223

main53141-48150-D0iAALH10,15,TALA1#202211-202409

RED MC.CS.,3R1

main53141-48150-E0iAALH10,15,TALA1#202211-202409

SONIC COPPER,4Y5

main53141-48150-G0iAALH10,15,TALA1#202211-202409

TERRANE KHAKI M.M.,6X4

main53141-48150-J0iAALH10,15,TALA1#202211-202409

DEEP BLUE MC.,8X5

main53141-48160-A0iTALH17202211-202409

WHITE NOVA GF.,083

main53141-48160-A0iTALH17202211-202409

main53141-48160-B0iTALA15202211-202409

SONIC CHROME,1L1

main53141-48160-B0iTALH17202211-202409

main53141-48160-B1iTALH17202211-202409

main53141-48160-B1iTALH17202211-202409

SONIC IRIDIUM,1L2

main53141-48160-C0iTALH17202211-202409

GRAPHITE BLACK GF.,223

main53141-48160-C0iTALH17202211-202409

main53141-48160-E0iTALH17202211-202409

SONIC COPPER,4Y5

main53141-48160-E0iTALA15202211-202409

main53141-48160-J0iTALH17202211-202409

main53141-48160-J0iTALH17202211-202409

HEAT BLUE CONTRAST LAYERI,8X1

53159JSEAL, RADIATOR GRILLE

main53158-48010iAALH16202211

main53158-48020iTALH17202410

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-48120iAALH1#,TALA1#,TALH17202211

7501

8408

8604

8606

89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-48760iAALH1#,TALA1#202211

main89348-48770iAALH1#,TALA1#202211

main89348-48800iTALH17202211

main89348-48800iTALH17202211

main89348-48810iTALA15202211

main89348-48810iTALA15202211

9010906388

main90109-06388

9015960431

main90159-60431

9016740057

main90167-40057

9016750063

main90167-50063

9017906127

main90179-06127

9046705170

main90467-05170

9046707215

main90467-07215

22 parts on this diagram · 2 diagrams in section
