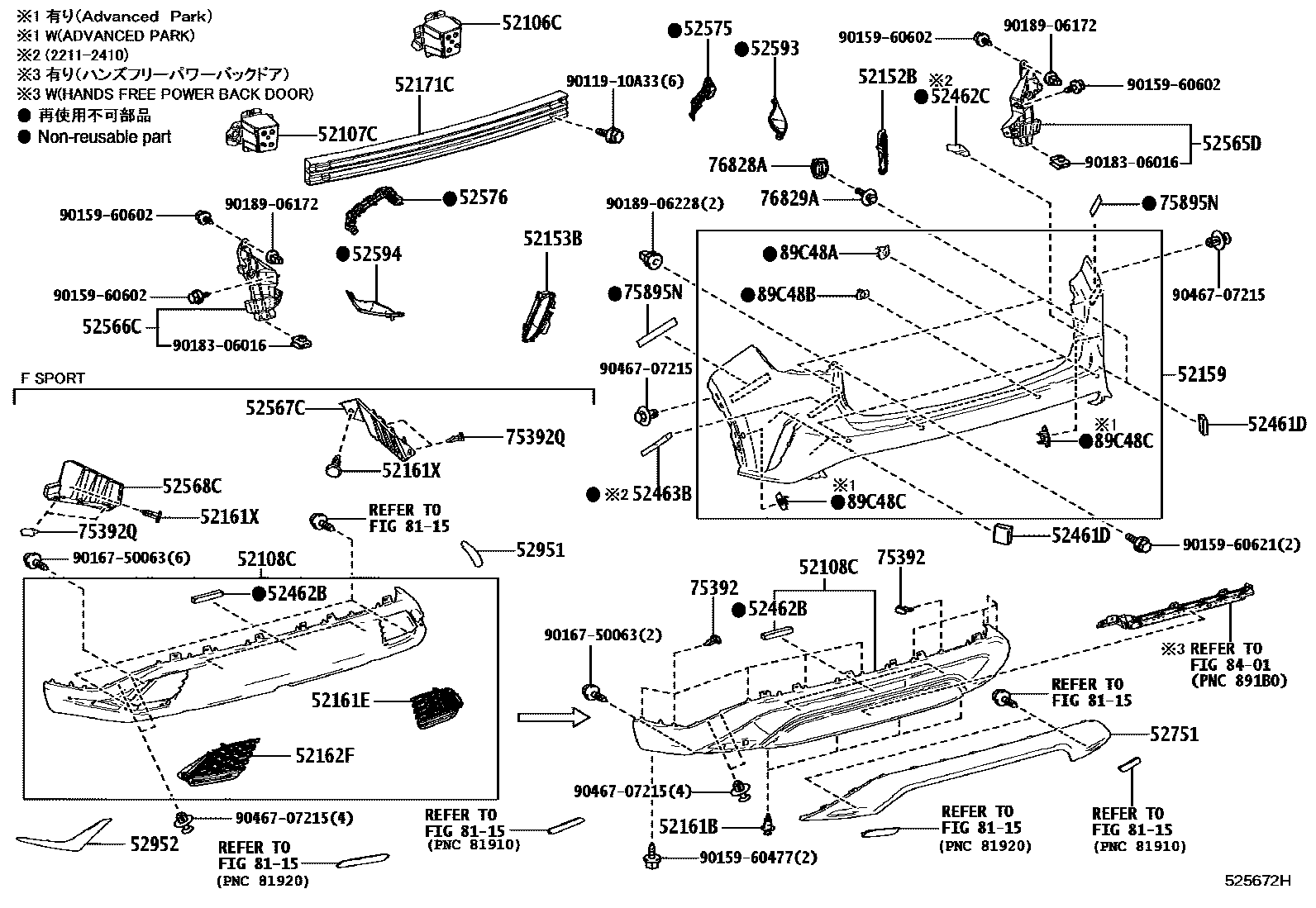

REAR BUMPER & BUMPER STAY

52106CEXTENSION SUB-ASSY, REAR BUMPER, RH

main52106-48040iAALH1#,TALA1#,TALH17¥2,900202211

52107CEXTENSION SUB-ASSY, REAR BUMPER, LH

main52107-48040iAALH1#,TALA1#,TALH17¥2,900202211

52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER

main52108-48060iAALH1#,TALA1#¥24,000202211

main52108-48130-A0iTALH17202211

WHITE NOVA GF.,083

main52108-48130-B0iTALH17202211

SONIC IRIDIUM,1L2

main52108-48130-B1iTALH17202211

SONIC CHROME,1L1

main52108-48130-C0iTALH17202211

GRAPHITE BLACK GF.,223

main52108-48130-E0iTALH17202211

SONIC COPPER,4Y5

main52108-48130-J0iTALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

52152BEXTENSION, REAR BUMPER, RH

main52152-48040iAALH1#,TALA1#,TALH17¥3,890202211

52153BEXTENSION, REAR BUMPER, LH

main52153-48020iAALH1#,TALA1#,TALH17¥3,890202211

52159COVER, REAR BUMPER

main52159-48977-A0iTALH17202211-202409

WHITE NOVA GF.,083

main52159-48977-A0iTALH17202211-202409

main52159-48977-A1iAALH10,15,TALA1#202211-202409

SONIC QUARTZ,085

main52159-48977-B0iAALH10,15,TALA1#202211-202409

SONIC TITANIUM,1J7

main52159-48977-B1iAALH10,15,TALA1#,TALH17202211-202409

SONIC CHROME,1L1

main52159-48977-B2iAALH10,15,TALA1#,TALH17202211-202409

SONIC IRIDIUM,1L2

main52159-48977-C1iAALH10,15,TALA1#,TALH17202211-202409

GRAPHITE BLACK GF.,223

main52159-48977-D0iAALH10,15,TALA1#202211-202409

RED MC.CS.,3R1

main52159-48977-E2iAALH10,15,TALA1#,TALH17202211-202409

SONIC COPPER,4Y5

main52159-48977-G0iAALH10,15,TALA1#202211-202409

TERRANE KHAKI M.M.,6X4

main52159-48977-J0iTALH17202211-202409

HEAT BLUE CONTRAST LAYERI,8X1

main52159-48977-J0iTALH17202211-202409

main52159-48977-J1iAALH10,15,TALA1#202211-202409

DEEP BLUE MC.,8X5

main52159-48978-A0iTALA15202410

WHITE NOVA GF.,083

main52159-48978-A0iTALA15202410

main52159-48978-A1iAALH10,15,TALA1#202211-202509

SONIC QUARTZ,085

main52159-48978-B0iAALH10,15,TALA1#202211

SONIC TITANIUM,1J7

main52159-48978-B1iAALH16202211

SONIC CHROME,1L1

main52159-48978-B2iAALH10,15,TALA1#,TALH17202211

SONIC IRIDIUM,1L2

main52159-48978-C1iAALH16202211

GRAPHITE BLACK GF.,223

main52159-48978-D0iAALH10,15,TALA1#202211

RED MC.CS.,3R1

main52159-48978-E2iAALH10,15,TALA1#,TALH17202211

SONIC COPPER,4Y5

main52159-48978-G0iAALH16202211

TERRANE KHAKI M.M.,6X4

main52159-48978-J0iTALA15202410

main52159-48978-J0iTALH17202410

HEAT BLUE CONTRAST LAYERI,8X1

main52159-48978-J1iAALH16202211

DEEP BLUE MC.,8X5

52161BPIECE, REAR BUMPER

main52161-16010iAALH1#,TALA1#,TALH17¥120202211

52161EEXTENSION, REAR BUMPER SIDE, RH

main52161-48030iTALH17¥3,690202211

52161XPIECE, REAR BUMPER

main52161-16010iTALH17¥120202211

52162FEXTENSION, REAR BUMPER SIDE, LH

main52162-48030iTALH17¥3,690202211

52171CREINFORCEMENT, REAR BUMPER

main52171-48250iAALH1#,TALA1#,TALH17¥15,700202211

52461DCUSHION, REAR BUMPER

main52461-48060iAALH1#,TALA1#,TALH17202410

52462BPAD, REAR BUMPER

main52462-48090iAALH1#,TALA1#¥250202211

main52462-48100iTALH17¥200202211

52462CPAD, REAR BUMPER, RH

main52462-48050iAALH1#,TALA1#,TALH17¥280202211-202410

52463BPAD, REAR BUMPER, LH

main52462-48050iAALH1#,TALA1#,TALH17¥280202211-202410

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-48060iAALH1#,TALA1#,TALH17¥4,890202211

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-48040iAALH1#,TALA1#,TALH17¥4,890202211

52567CRETAINER, REAR BUMPER LOWER SIDE, RH

main52567-48010iTALA15¥2,640202211

52568CRETAINER, REAR BUMPER LOWER SIDE, LH

main52568-48010iTALH17¥2,640202211

52575RETAINER, REAR BUMPER SIDE, RH

main52575-48060iAALH1#,TALA1#,TALH17¥3,180202211

52576RETAINER, REAR BUMPER SIDE, LH

main52576-48060iAALH1#,TALA1#,TALH17¥3,180202211

52593SILENCER, REAR BUMPER, RH

main52593-48010iAALH1#,TALA1#,TALH17¥2,070202211

52594SILENCER, REAR BUMPER, LH

main52594-48010iAALH1#,TALA1#,TALH17¥2,070202211

52751MOULDING, REAR BUMPER

main00000-00000iTALH17202211

main00000-00000iTALH17202211

main52751-48120iAALH1#,TALA1#¥14,100202211

52951GUARD, SIDE BUMPER, RH

main52951-48030iTALH17¥2,290202211

52952GUARD, SIDE BUMPER, LH

main52952-48030iTALH17¥2,290202211

75392RETAINER, OUTSIDE MOULDING

main75392-35220iAALH1#,TALA1#,TALH17¥130202211

75392QRETAINER, OUTSIDE MOULDING, NO.2

main75392-35220iTALH17¥130202211

75895NTAPE, MOULDING, NO.1

main75895-53010iAALH1#,TALA1#,TALH17¥790202211

76828ARETAINER, BACK DOOR GARNISH, NO.3

main76828-60030iAALH1#,TALA1#,TALH17¥70202211

76829ARETAINER, BACK DOOR GARNISH

main76829-60020iAALH1#,TALA1#,TALH17¥50202211

8115

8401

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-78131iAALH1#,TALA1#,TALH17202211

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-50171iAALH1#,TALA1#,TALH17202211

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

main89348-48840-A0iTALH17202410

main89348-48840-A1iAALH16202211-202509

main89348-48840-B1iAALH10,15,TALA1#202211

main89348-48840-B2iAALH10,15,TALA1#,TALH17202211

main89348-48840-B3iAALH16202211

main89348-48840-C0iAALH10,15,TALA1#,TALH17202211

main89348-48840-D0iAALH10,15,TALA1#202211

main89348-48840-E0iAALH10,15,TALA1#,TALH17202211

main89348-48840-G0iAALH16202211

main89348-48840-J0iTALH17202410

main89348-48840-J0iTALA15202410

main89348-48840-J1iAALH16202211

main89348-48850-A0iTALH17202410

main89348-48850-A1iAALH10,15,TALA1#202211-202509

main89348-48850-B1iAALH10,15,TALA1#202211

main89348-48850-B2iAALH16202211

main89348-48850-B3iAALH16202211

main89348-48850-C0iAALH16202211

main89348-48850-D0iAALH16202211

main89348-48850-E0iAALH10,15,TALA1#,TALH17202211

main89348-48850-G0iAALH16202211

main89348-48850-J0iTALA15202410

main89348-48850-J0iTALH17202410

main89348-48850-J1iAALH10,15,TALA1#202211

9011910A33

main90119-10A33¥160

9015960477

main90159-60477¥70

9015960602

main90159-60602¥60

9015960621

main90159-60621¥60

9016750063

main90167-50063¥60

9018306016

main90183-06016¥80

9018906172

main90189-06172¥80

9018906228

main90189-06228¥70

9046707215

main90467-07215¥80

45 parts on this diagram · 1 diagram in section
