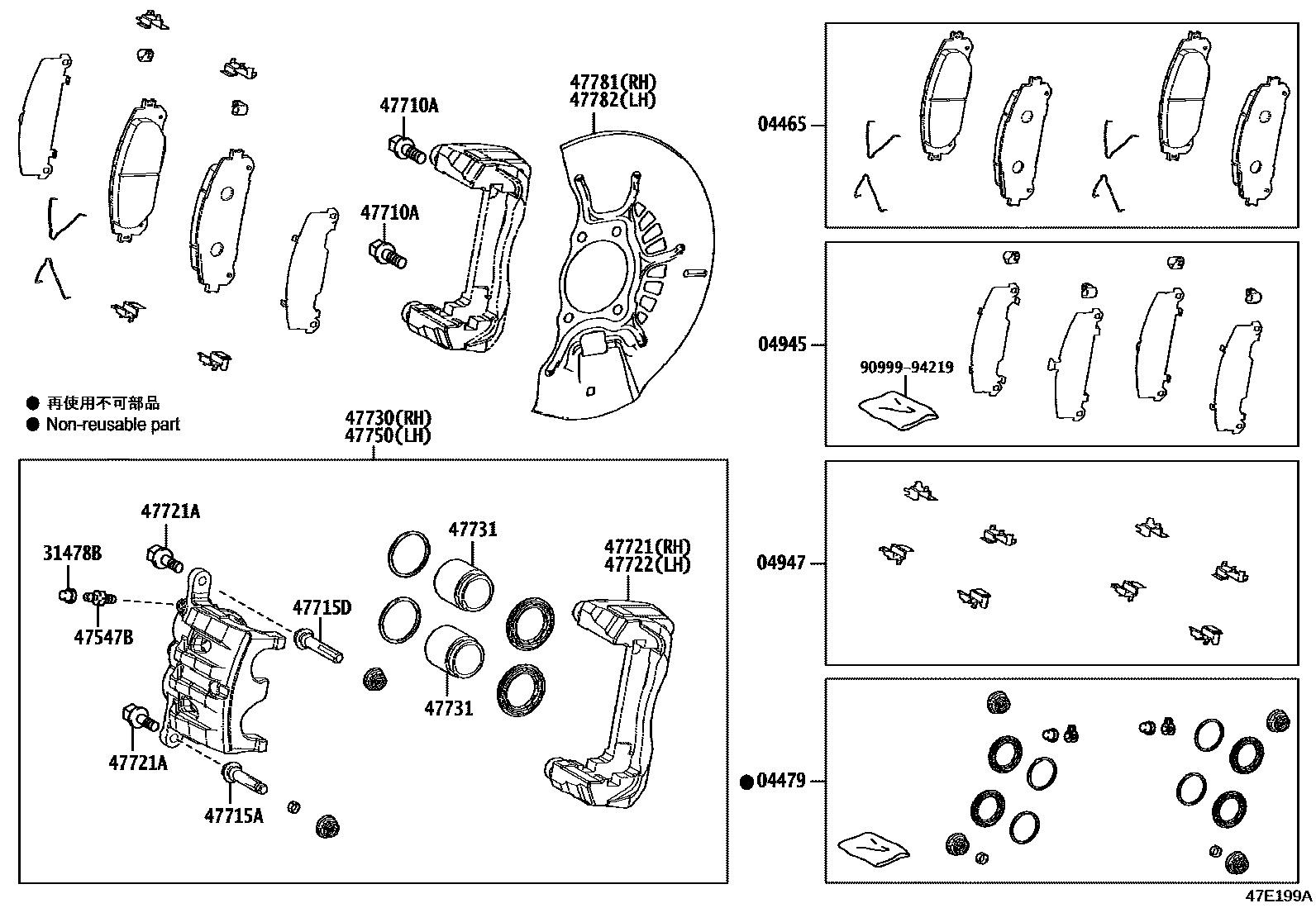

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
04479CYLINDER KIT, DISC BRAKE, FRONT
04945SHIM KIT, ANTI SQUEAL, FRONT
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47750CYLINDER ASSY, DISC BRAKE, LH
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
9099994219
main90999-94219
18 parts on this diagram · 4 diagrams in section
