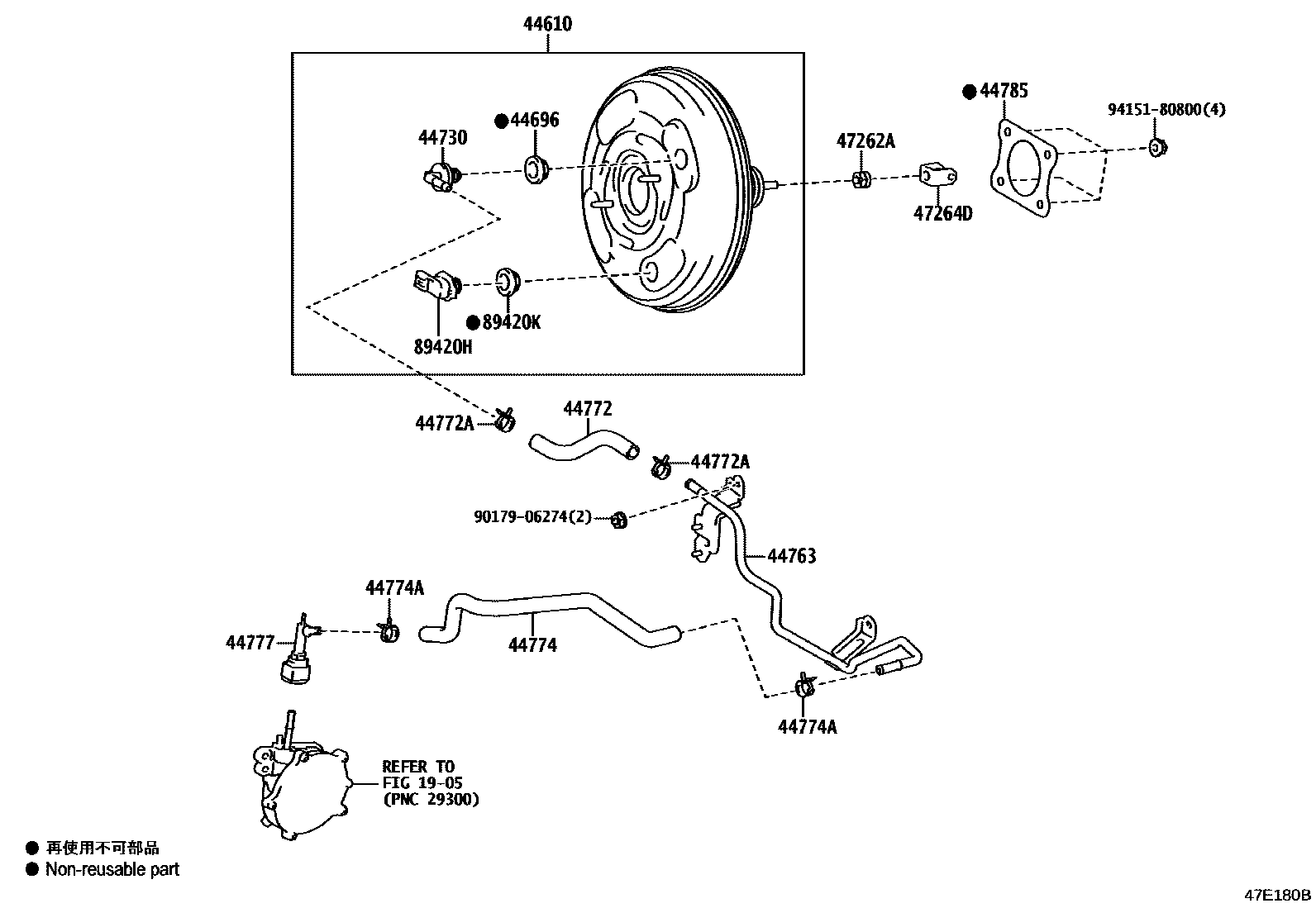

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44763TUBE, BOOSTER VACUUM
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44777CONNECTOR, VACUUM HOSE, NO.1
44785GASKET, BRAKE BOOSTER
47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
89420HSENSOR ASSY, VACUUM
89420KGROMMET, VACUUM SENSOR
9017906274
main90179-06274
9415180800
main94151-80800
17 parts on this diagram · 1 diagram in section
