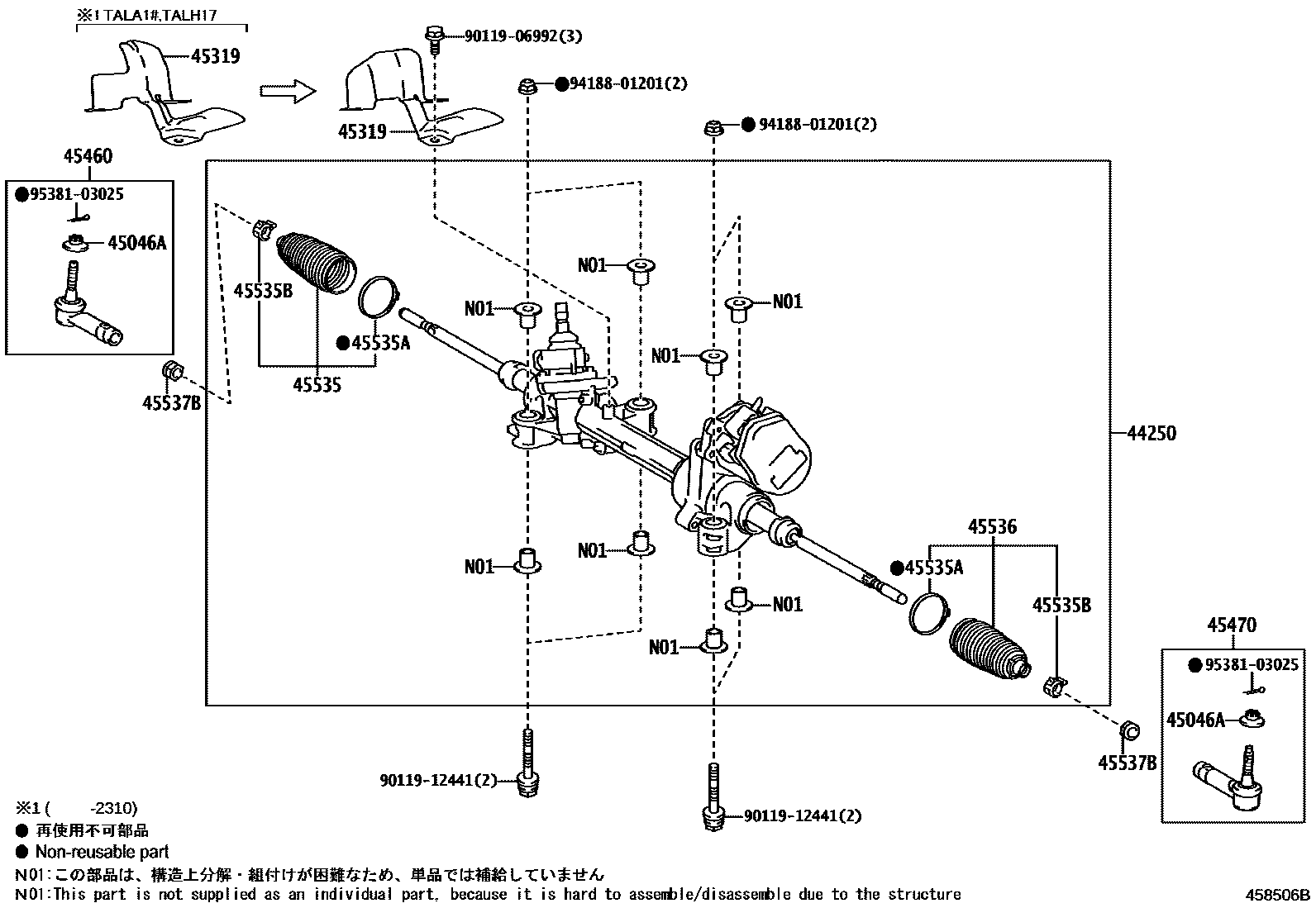

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-48200iAALH1#,TALA1#202211-202409

main44250-48201iAALH10,TALA1#202409

main44250-48210iTALH17202211-202409

main44250-48211iAALH15,16,TALH17202409

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAALH1#,TALA1#,TALH17202211

45319INSULATOR, STEERING GEAR HEAT

main45319-42030iTALA1#,TALH17202211

main45319-78020iTALA1#,TALH17202211-202310

45460ROD ASSY, TIE, RH

main45460-49135iAALH1#,TALA1#,TALH17202211

45470ROD ASSY, TIE, LH

main45460-49135iAALH1#,TALA1#,TALH17202211

45535BOOT, STEERING RACK, NO.1

main45535-49095iAALH1#,TALA1#,TALH17202211

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06030iAALH1#,TALA1#,TALH17202211

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iAALH1#,TALA1#,TALH17202211

45536BOOT, STEERING RACK, NO.2

main45535-49095iAALH1#,TALA1#,TALH17202211

45537BNUT, RACK END LOCK

main90178-16001iAALH1#,TALA1#,TALH17202211

9011906992

main90119-06992

9011912441

main90119-12441

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
