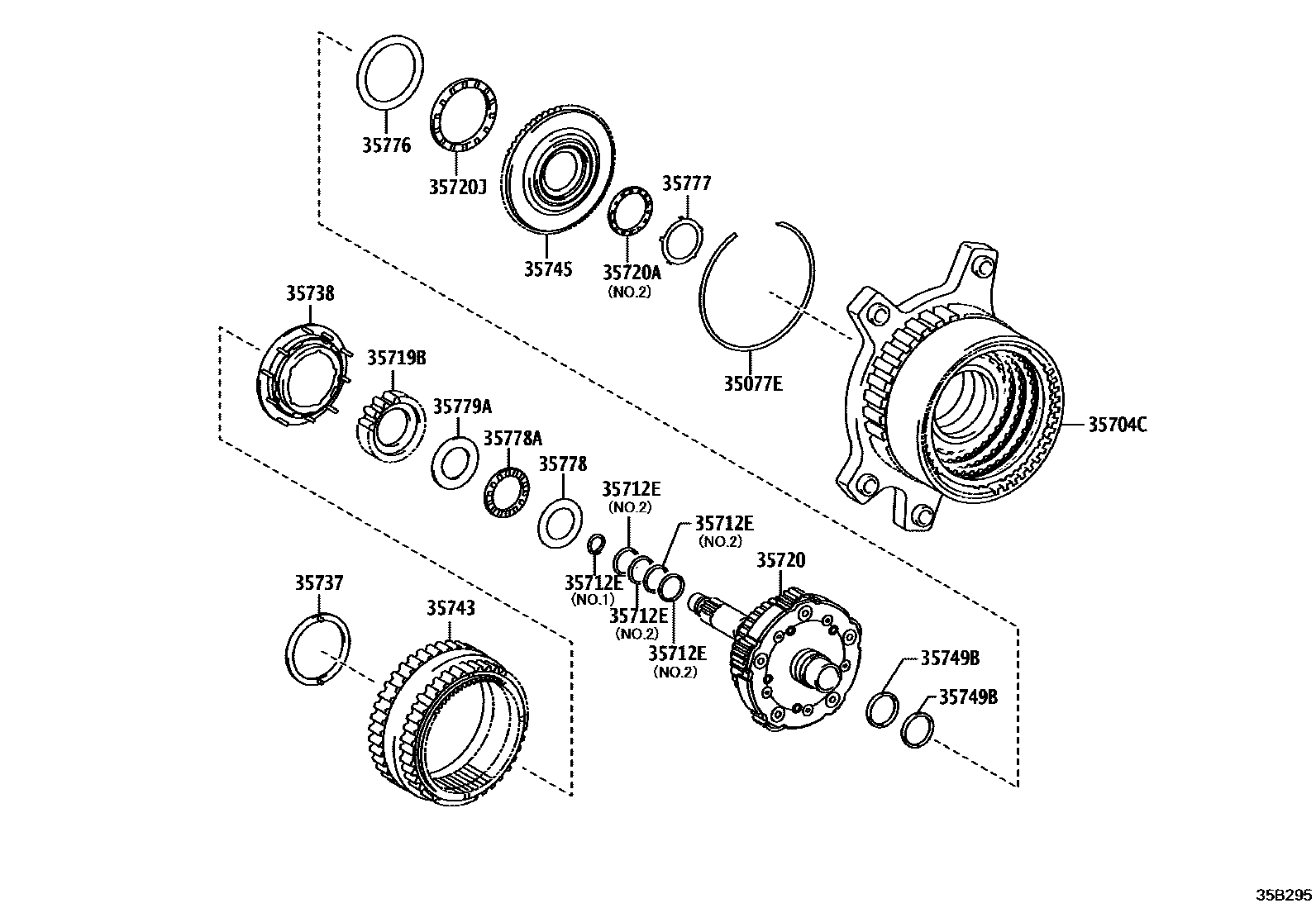

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35704CGEAR SUB-ASSY, COUNTER DRIVE
35719BGEAR, PLANETARY SUN
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35737WASHER, PLANETARY CARRIER THRUST
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35745FLANGE, FRONT PLANETARY RING GEAR
35749BRING, INPUT SHAFT OIL SEAL, REAR
35776GEAR, PRIMARY REDUCTION DRIVEN
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
17 parts on this diagram · 2 diagrams in section
