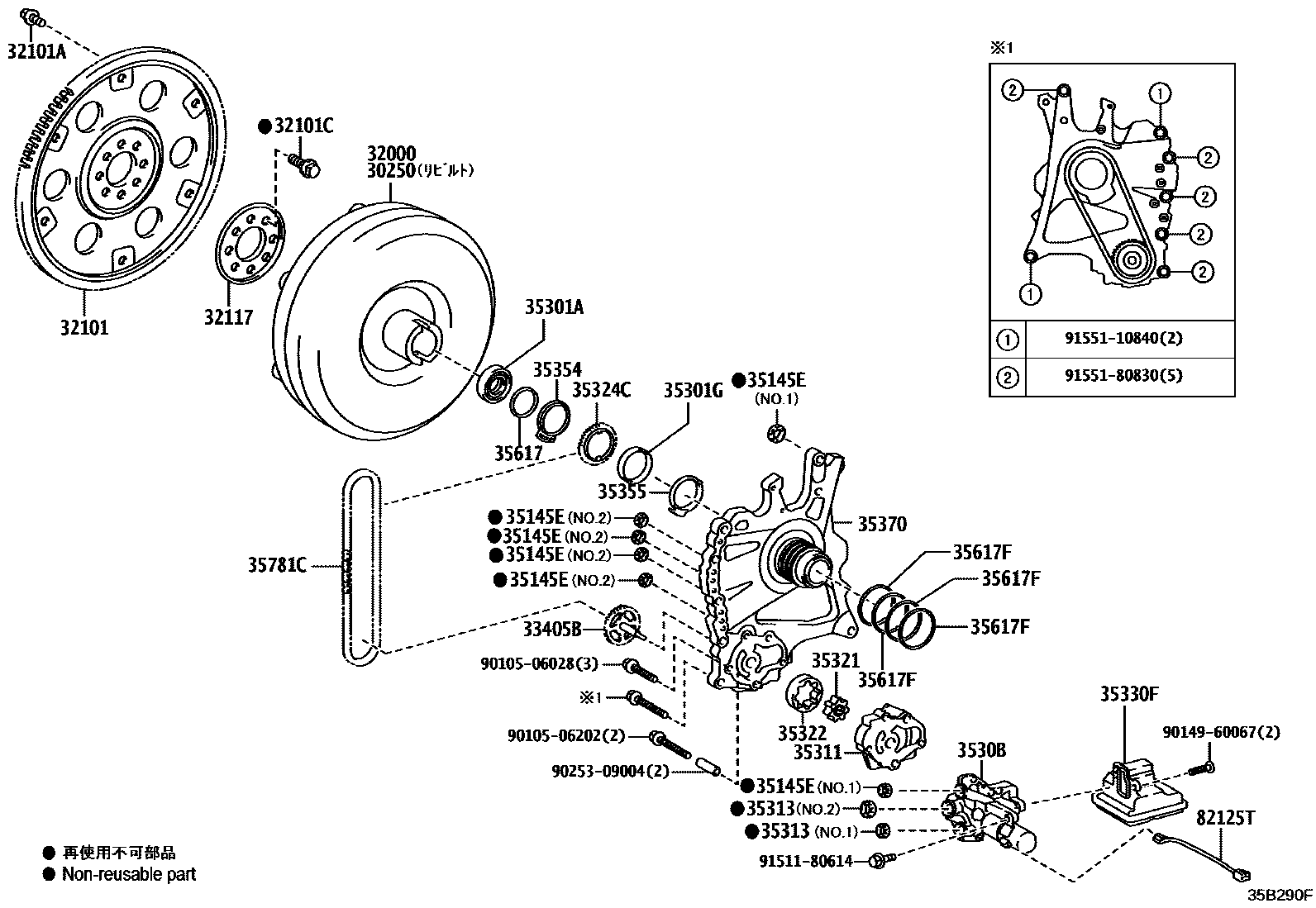

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-78010iTALA15202211

32000CONVERTER ASSY, TORQUE

main32000-78010iTALA1#202211

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-33020iTALA1#202211

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iTALA1#202211

main90119-09025iTALA1#202211

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iTALA1#202211

32117SPACER, DRIVE PLATE, REAR

main32117-33010iTALA1#202211

33405BSHAFT SUB-ASSY, OIL PUMP DRIVE

main33405-48010iTALA1#202211

35145EGASKET, TRANSAXLE CASE

main35145-33020iTALA1#202211

main35145-33040iTALA1#202211

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-51013iTALA1#202211

35301GBEARING,NEEDLE ROLLER

main90364-51004iTALA1#202211

3530BCOVER SUB-ASSY, FRONT OIL PUMP & SOLENOID

main3530B-48040iTALA1#202211

35311BODY, FRONT OIL PUMP

main35311-48040iTALA1#202211

35313GASKET, FRONT OIL PUMP COVER

main35313-48020iTALA1#202211

main35313-48030iTALA1#202211

35321GEAR, FRONT OIL PUMP DRIVE

main35321-48110iTALA1#202211

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-48110iTALA1#202211

35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE

main35324-48040iTALA1#202211

35330FSTRAINER ASSY, OIL

main35330-48040iTALA1#202211

35354WASHER, OIL PUMP SPROCKET THRUST, FRONT

main35354-48010iTALA1#202211

35355WASHER, OIL PUMP SPROCKET THRUST, REAR

main35355-48011iTALA1#202211

35370SHAFT ASSY, STATOR

main35370-48040iTALA1#202211

35617RING, CLUTCH DRUM OIL SEAL

main35617-48050iTALA1#202211

35617FRING, CLUTCH DRUM OIL SEAL

main35617-48060iTALA1#202211

35781CCHAIN, TRANSMISSION DRIVE

main35781-48020iTALA1#202211

82125TWIRE, TRANSMISSION

main82125-48050iTALA1#202211

9010506028

main90105-06028

9010506202

main90105-06202

9014960067

main90149-60067

9025309004

main90253-09004

9151180614

main91511-80614

9155110840

main91551-10840

9155180830

main91551-80830

31 parts on this diagram · 1 diagram in section
