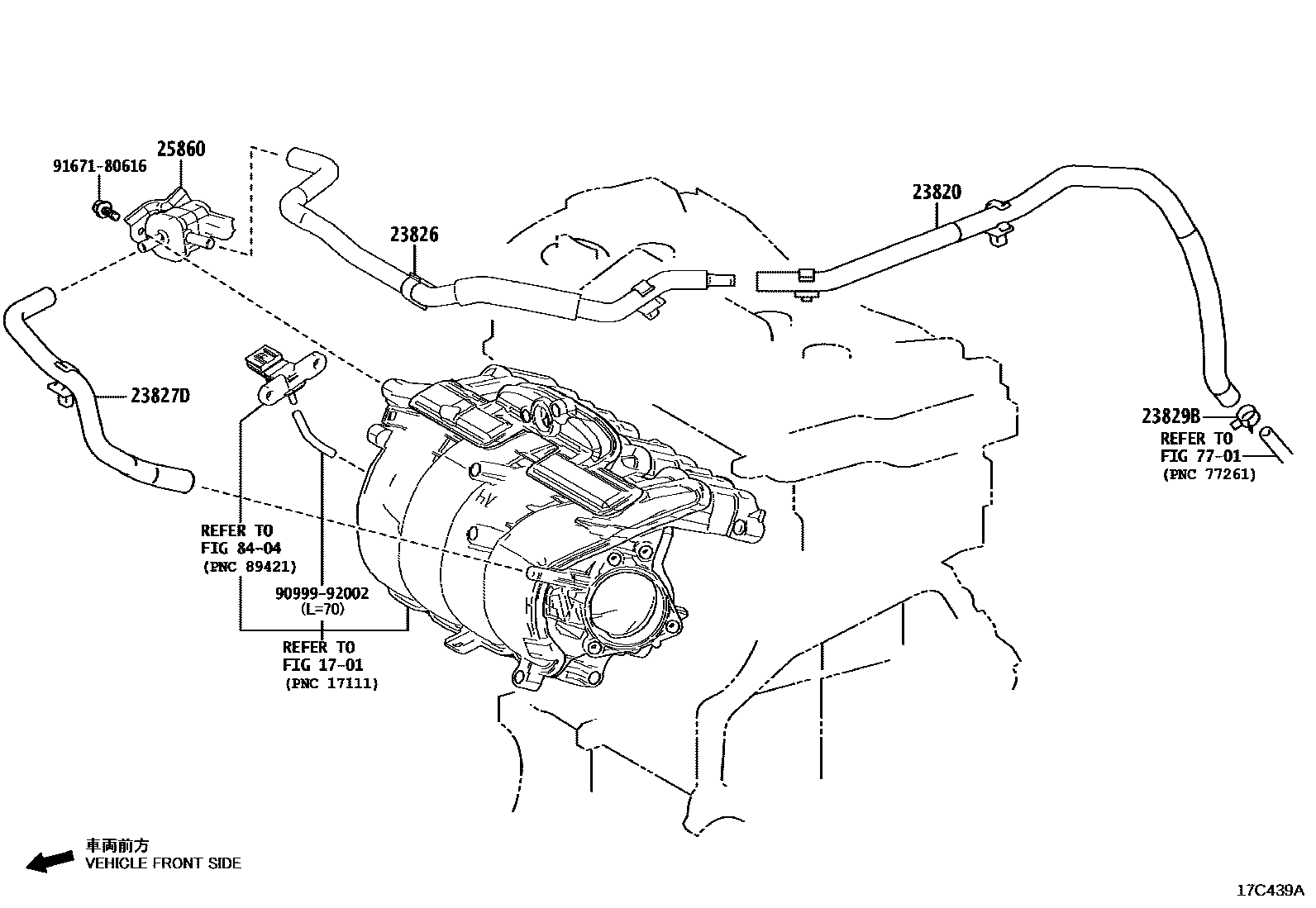

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25200iA25AFXS..AALH16¥4,780202211-202312

sub23820-25600¥3,450

main23820-25220iA25AFXS..AALH10,15¥3,450202211

main23820-25230iT24AFTS..TALA1#¥4,100202211

main23820-25320iT24AFTS..TALH17¥2,920202211

main23820-25600iA25AFXS..AALH16¥3,450202312

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25AFXS..AALH16¥2,480202211

main23820-25150iA25AFXS..AALH10,15¥3,540202211

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25AFXS..AALH16¥1,590202211

main23820-25160iA25AFXS..AALH10,15¥2,200202211

main23827-25150iT24AFTS..TALA1#,TALH17¥1,850202211

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-13005iT24AFTS..TALA1#¥120202211

main96138-41901iT24AFTS..TALH17¥120202211

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AALH16¥3,480202211

main25860-25070iA25AFXS..AALH10,15¥3,480202211

main25860-25080iT24AFTS..TALA1#¥3,480202211

7701

8404

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

10 parts on this diagram · 4 diagrams in section
