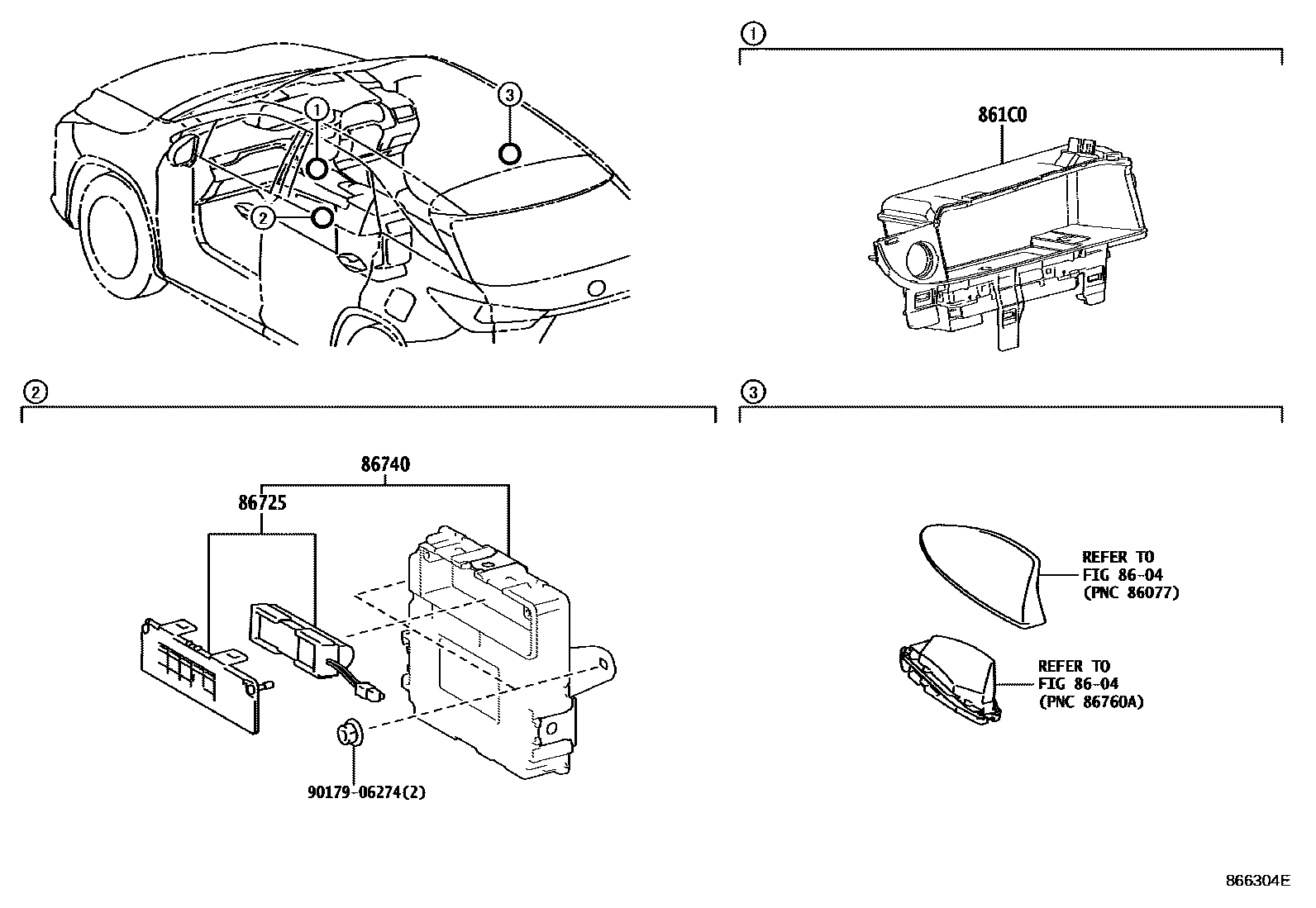

TELEPHONE & MAYDAY

0001 1 0002 1

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-48020iAGL2#,GYL2#201509-201908

main861C0-48060iAGL2#,GYL2#201908

86725BATTERY, MOBILEPHONE

main86725-26010iAGL2#,GYL2#201908

main86725-48010iAGL2#,GYL2#201509-201908

86740TRANSCEIVER ASSY, TELEPHONE

main86740-48150iAGL2#,GYL2#201509-201908

9017906274

main90179-06274

5 parts on this diagram · 2 diagrams in section
