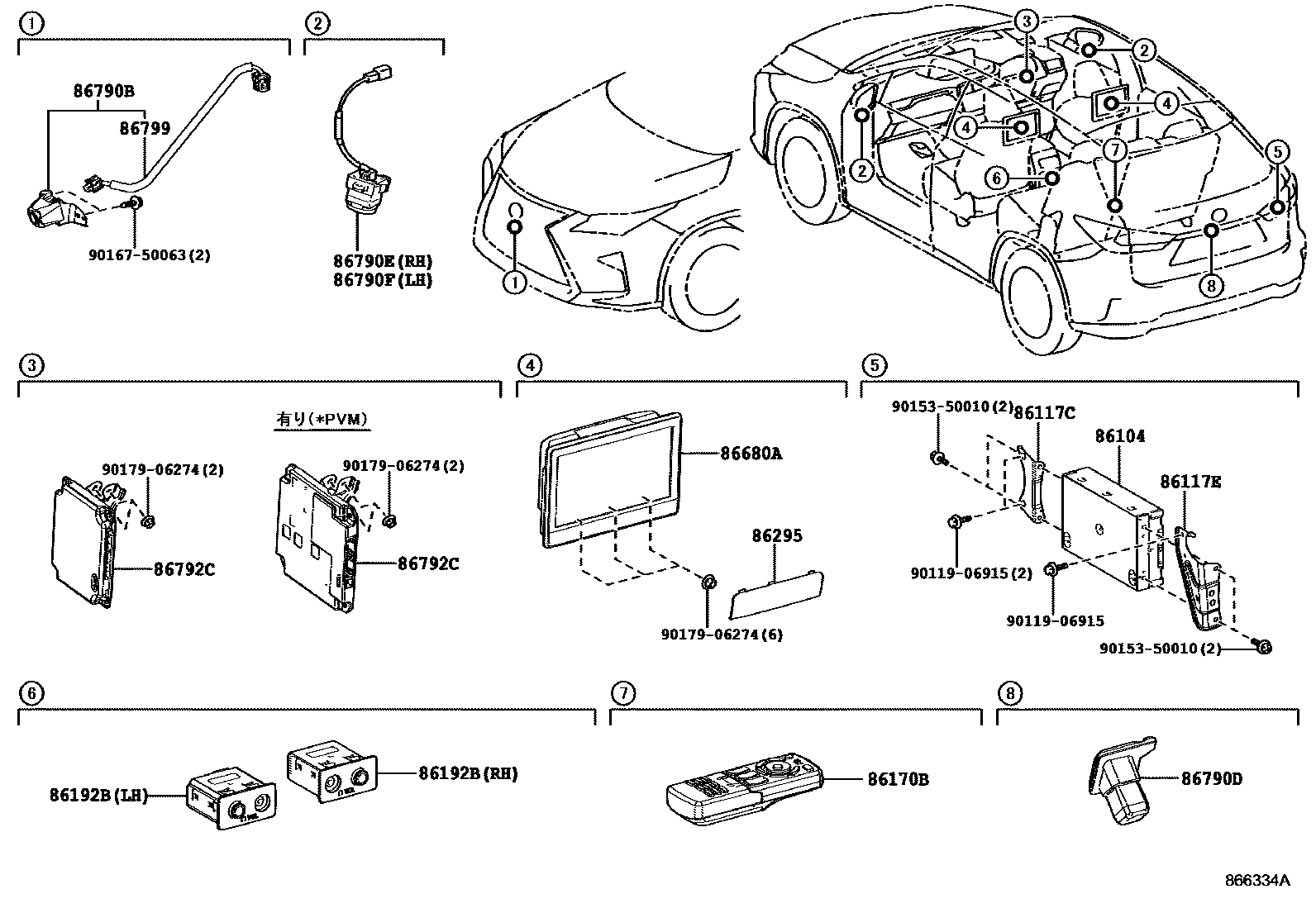

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86104CONTROLLER SUB-ASSY, MULTI-DISPLAY

main862B1-48010iAGL2#,GYL2#201509-201908

main862B1-48020iAGL2#,GYL2#201908

86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86117-48160iAGL2#,GYL2#201509-201908

86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3

main86118-48130iAGL2#,GYL2#201908

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-48040iAGL2#,GYL2#201509-201908

86192BTERMINAL, HEADPHONE

main86192-50030iAGL2#,GYL2#201509-201908

main86192-50040iAGL2#,GYL2#201509-201908

86295BASE, TELEVISION

main86295-48110-C0×2iAGL2#,GYL2#201509-201908

main86295-48110-E1×2iAGL2#,GYL2#201908-202007

86680ADISPLAY ASSY, TELEVISION

main86680-48180-C0×2iAGL2#,GYL2#201509-201908

main86680-48180-E0×2iAGL2#,GYL2#201509-201908

main86680-48280-C0×2iAGL2#,GYL2#202007

main86680-48280-E0×2iAGL2#,GYL2#201908-202007

86790BCAMERA ASSY, TELEVISION, FR

main867B0-48020iAGL2#,GYL2#201509-201605

main867B0-48021iAGL2#,GYL2#201605-201712

main867B0-48022iAGL2#,GYL2#201712-201908

main867B0-48070iAGL25,GYL25201509-201605

main867B0-48071iAGL25,GYL25201605-201712

main867B0-48072iAGL2#,GYL2#201712-201908

main867B0-48090iAGL2#,GYL2#201908-202110

main867B0-48091iAGL2#,GYL2#202110

main867B0-48100iAGL2#,GYL2#201908-202110

main867B0-48101iAGL2#,GYL2#202110

86790DCAMERA ASSY, TELEVISION, RR

main867B0-48061iAGL2#,GYL2#201509-201605

main867B0-48062iAGL2#,GYL2#201605-201712

main867B0-48063iAGL2#,GYL2#201712-201908

main867B0-48110iAGL2#,GYL2#201908

86790ECAMERA ASSY, TELEVISION, SIDE RH

main867B0-48040iAGL2#,GYL2#201509-201605

main867B0-48041iAGL2#,GYL2#201605-201712

main867B0-48042iAGL2#,GYL2#201712-201908

main867B0-78050iAGL2#,GYL2#201908-202110

main867B0-78051iAGL2#,GYL2#202110

86790FCAMERA ASSY, TELEVISION, SIDE LH

main867B0-48030iAGL2#,GYL2#201509-201605

main867B0-48031iAGL2#,GYL2#201605-201712

main867B0-78040iAGL2#,GYL2#201908-202110

main867B0-78041iAGL2#,GYL2#202110

86792CCOMPUTER, PARKING ASSIST

main86792-48410iAGL2#,GYL2#201509-201908

main86792-48370iAGL2#,GYL2#201509-201712

sub86792-48660

main86792-48371iAGL2#,GYL2#201712-201908

sub86792-48372

main86792-48510supersedes 86792-48540iAGL2#,GYL2#201908-202110

main86792-48511supersedes 86792-48541iAGL2#,GYL2#202110

86799WIRE, TELEVISION CAMERA

main86799-48040iAGL25,GYL25201509-201908

main86799-48050iAGL2#,GYL2#201908-202110

main86799-48051iAGL2#,GYL2#202110

9011906915

main90119-06915

9015350010

main90153-50010

9016750063

main90167-50063

9017906274

main90179-06274

17 parts on this diagram · 2 diagrams in section
