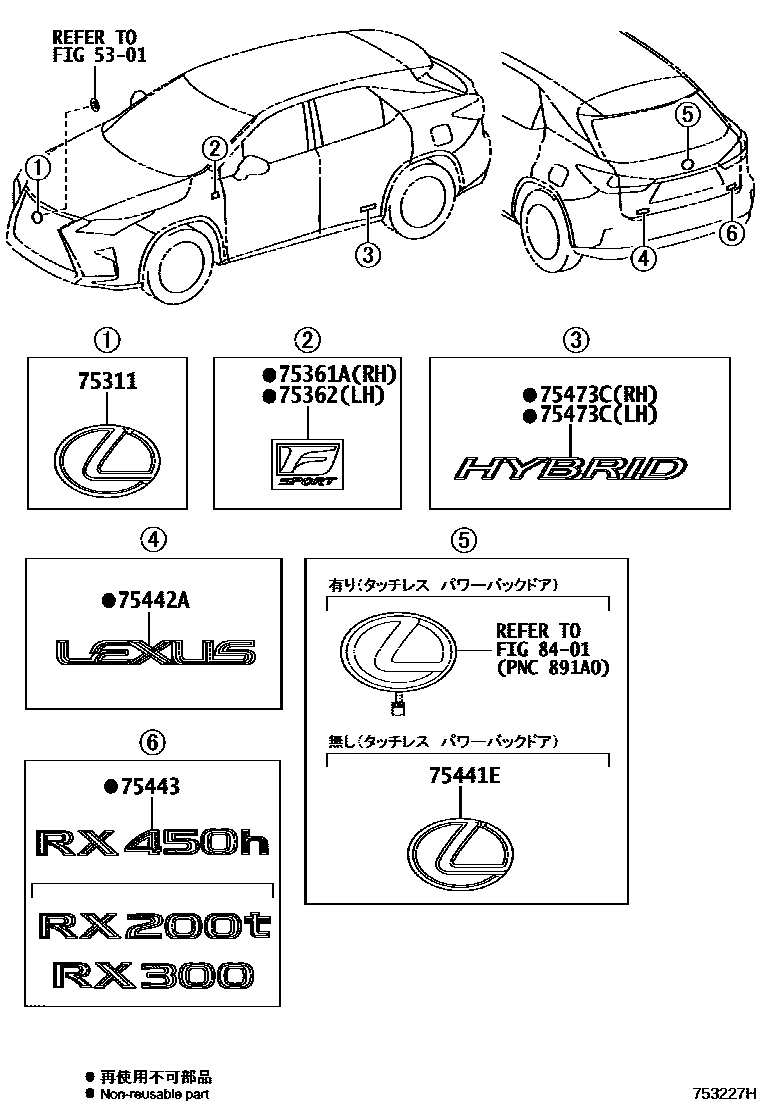

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

5301

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-30490iAGL2#201806-201908

main53141-30500iGYL2#201806-201908

main53141-33170-79iAGL2#201908

main53141-33180-79iGYL2#201908

main53141-48100-79iAGL2#201712-201805

sub53141-30490

main53141-48110-79iGYL2#201712-201805

sub53141-30500

main90975-02125iAGL2#201509-201712

main90975-02126iGYL2#201510-201712

75361APLATE, FRONT FENDER NAME, NO.1

75362PLATE, FRONT FENDER NAME, NO.2

main75362-48060

75441EPLATE, BACK DOOR NAME, NO.1

main75403-48020-79iAGL2#201509-201711

main75403-48040-79iGYL2#201510-201908

main75403-48050-79iAGL2#201712-201908

sub75403-48020

75442APLATE, BACK DOOR NAME, NO.2

main75442-48150-79iAGL2#,GYL2#201509-201908

75443PLATE, BACK DOOR NAME, NO.3

main75443-48110iGYL2#201510-201908

main75443-48210iAGL2#201509-201712

main75443-48280iAGL2#201712-201908

75473CPLATE, BODY SIDE NAME

main75473-48090-79iGYL2#201510-201908

main75473-48110-79iGYL2#201510-201908

8401

9 parts on this diagram · 2 diagrams in section
