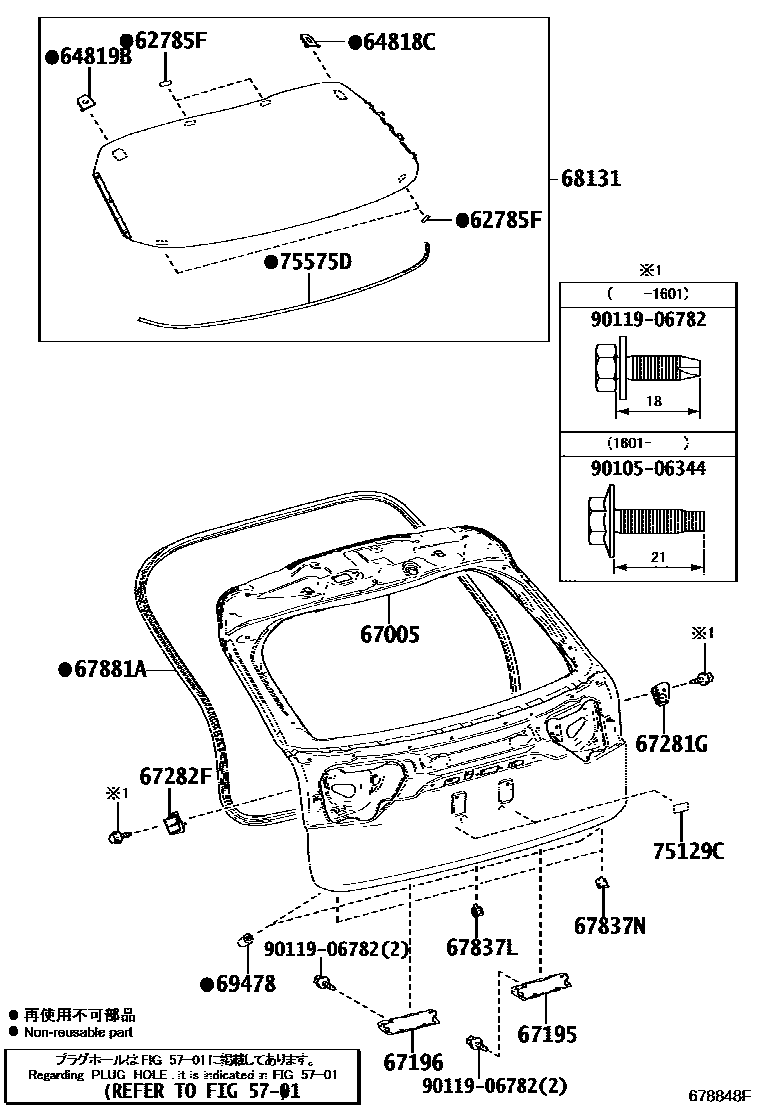

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

5701

62785FSPACER, BACK DOOR GLASS

main62785-60030iAGL2#,GYL2#201509-201908

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-48060iAGL2#,GYL2#201509-201908

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-48060iAGL2#,GYL2#201509-201908

67005PANEL SUB-ASSY, BACK DOOR

main67005-48720iAGL2#,GYL2#201509-201908

main67005-48730iAGL2#,GYL2#201509-201908

67195REINFORCEMENT, BACK DOOR STAY, LOWER RH

main67195-48010iAGL2#,GYL2#201509-201908

67196REINFORCEMENT, BACK DOOR STAY, LOWER LH

main67195-48010iAGL2#,GYL2#201509-201908

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-48020iAGL2#,GYL2#201509-201512

sub67281-48021

main67281-48021iAGL2#,GYL2#201601-201908

67282FSTOPPER, BACK DOOR, LWR LH

main67282-48010iAGL2#,GYL2#201509-201512

sub67282-48011

main67282-48011iAGL2#,GYL2#201601-201908

67837LSEAL, DOOR DUST PROOF

main67837-0E010iAGL2#,GYL2#201509-201908

67837NSEAL, BACK DOOR DUST PROOF

main67837-48100iAGL2#,GYL2#201509-201908

67881AWEATHERSTRIP, BACK DOOR

main67881-48080iAGL2#,GYL2#201509-201708

sub67881-48081

main67881-48081iAGL2#,GYL2#201709-201908

68131GLASS, BACK DOOR

main68105-48450iAGL2#,GYL2#201509-201908

main68105-48470iAGL2#,GYL2#201509-201908

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-48020iAGL2#,GYL2#201509-201908

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iAGL2#,GYL2#201509-201908

75575DMOULDING, BACK WINDOW, LOWER

main75575-48050iAGL2#,GYL2#201509-201908

9010506344

main90105-06344

9011906782

main90119-06782

18 parts on this diagram · 2 diagrams in section
