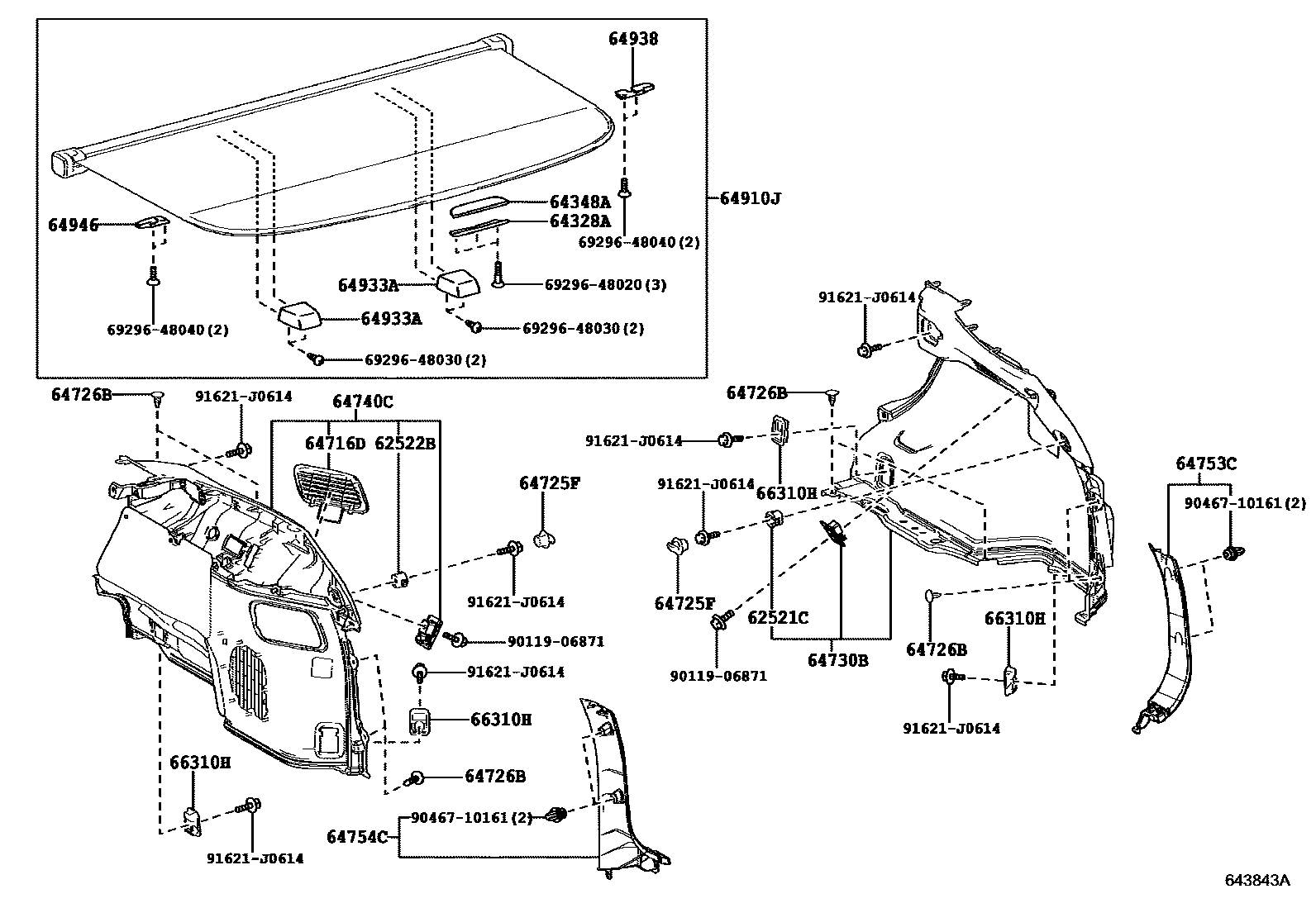

DECK BOARD & DECK TRIM COVER
62521CCOVER, QUARTER TRIM RH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
62522BCOVER, QUARTER TRIM LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64328ACOVER, PACKAGE TRAY TRIM CLAMP
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64348AKNOB, PACKAGE TRAY TRIM
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM04,2#,3#,4#,5#,6#
BLACK,TRIM0#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM04,5#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64753CPLATE, REAR FLOOR FINISH SIDE, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
64754CPLATE, REAR FLOOR FINISH SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64910JCOVER ASSY, TONNEAU
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
64933ABRACKET, TONNEAU COVER HOLDER, RH
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64938HOOK, TONNEAU COVER, A
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
64946HOOK, TONNEAU COVER, B
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
66310HHOOK ASSY, ROPE
6929648020SCREW, DOOR INSIDE HANDLE
6929648030SCREW, DOOR INSIDE HANDLE
6929648040SCREW, DOOR INSIDE HANDLE
9011906871
9046710161
91621J0614
22 parts on this diagram · 4 diagrams in section
