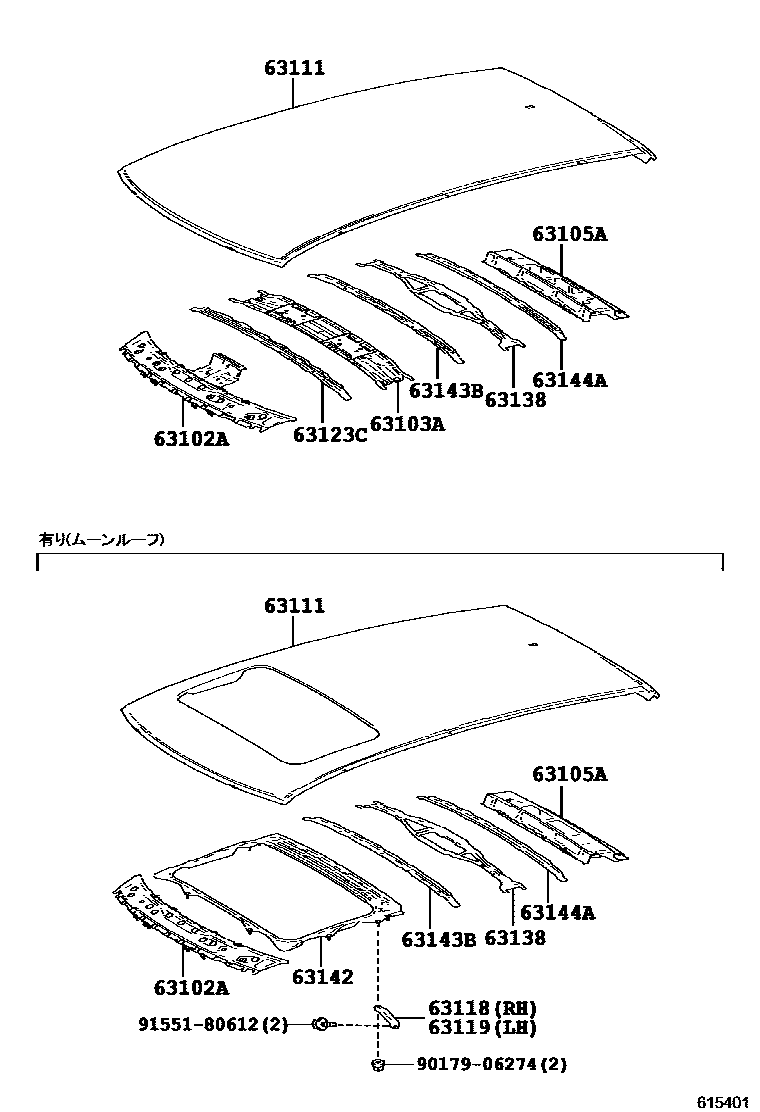

ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1�������(�����) 0003 1������������(���) 0004 1������������(�����) 0005 1������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48240supersedes 63102-48916iAGL2#,GYL2#201509-201908

main63102-48917supersedes 63102-48916iAGL2#,GYL2#201509-201908

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-48060iAGL2#,GYL2#201509-201908

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48080iAGL2#,GYL2#201509-201908

63111PANEL, ROOF

main63111-48260supersedes 63111-48270iAGL2#,GYL2#201908

main63111-48300supersedes 63111-48270iAGL2#,GYL2#201908

main63111-48310supersedes 63111-48270iAGL2#,GYL2#201509-201908

main63111-48340supersedes 63111-48270iAGL2#,GYL2#201908

63118SUPPORT, ROOF PANEL, RH

main63118-48110iAGL2#,GYL2#201908

63119SUPPORT, ROOF PANEL, LH

main63118-48110iAGL2#,GYL2#201509-201908

63123CREINFORCEMENT, ROOF PANEL

main63123-48060iAGL2#,GYL2#201509-201908

63138BRACKET, DOME LAMP, NO.2

main63138-48050iAGL2#,GYL2#201509-201908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-48070iAGL2#,GYL2#201908

main63142-48080iAGL2#,GYL2#201908

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48100iAGL2#,GYL2#201908

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48090iAGL2#,GYL2#201908

9017906274

main90179-06274

9155180612

main91551-80612

13 parts on this diagram · 5 diagrams in section
