SIDE MEMBER

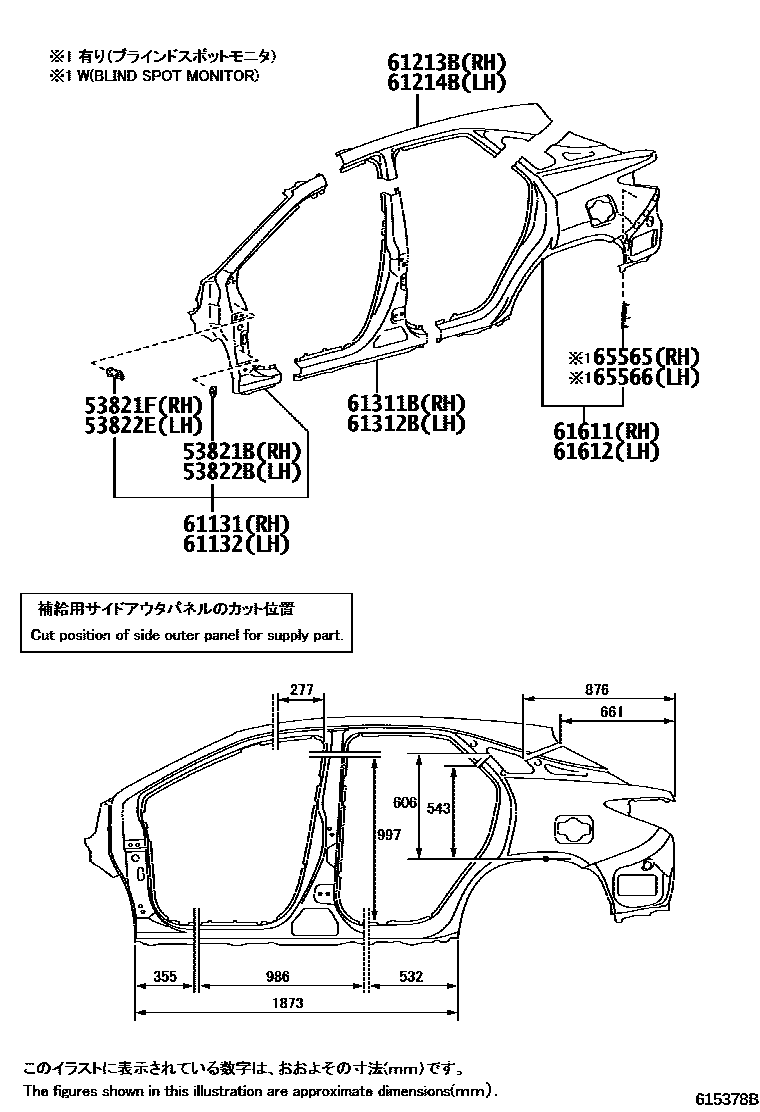

Parts diagram

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48030i201509-201908

53821FBRACKET, FRONT FENDER, REAR NO.2 RH

main53821-48070i201509-201908

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48030i201509-201908

53822EBRACKET, FRONT FENDER, REAR NO.2 LH

main53821-48070i201509-201908

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61101-48040i201509-201908

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61102-48050i201509-201908

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-48080i201509-201908

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-48080i201509-201908

61311BPILLAR, CENTER BODY, OUTER RH

main61311-48070i201509-201908

61312BPILLAR, CENTER BODY, OUTER LH

main61312-48070i201509-201908

61611PANEL, QUARTER, RH

main61601-48050i201509-202209

main61601-48060i201509-202209

61612PANEL, QUARTER, LH

main61602-48050i201509-202209

main61602-48060i201509-202209

65565PATCH, SIDE PANEL REAR END, RH

main65565-48020i201509-201908

65566PATCH, SIDE PANEL REAR END, LH

main65566-48020i201509-201908

14 parts on this diagram · 3 diagrams in section
