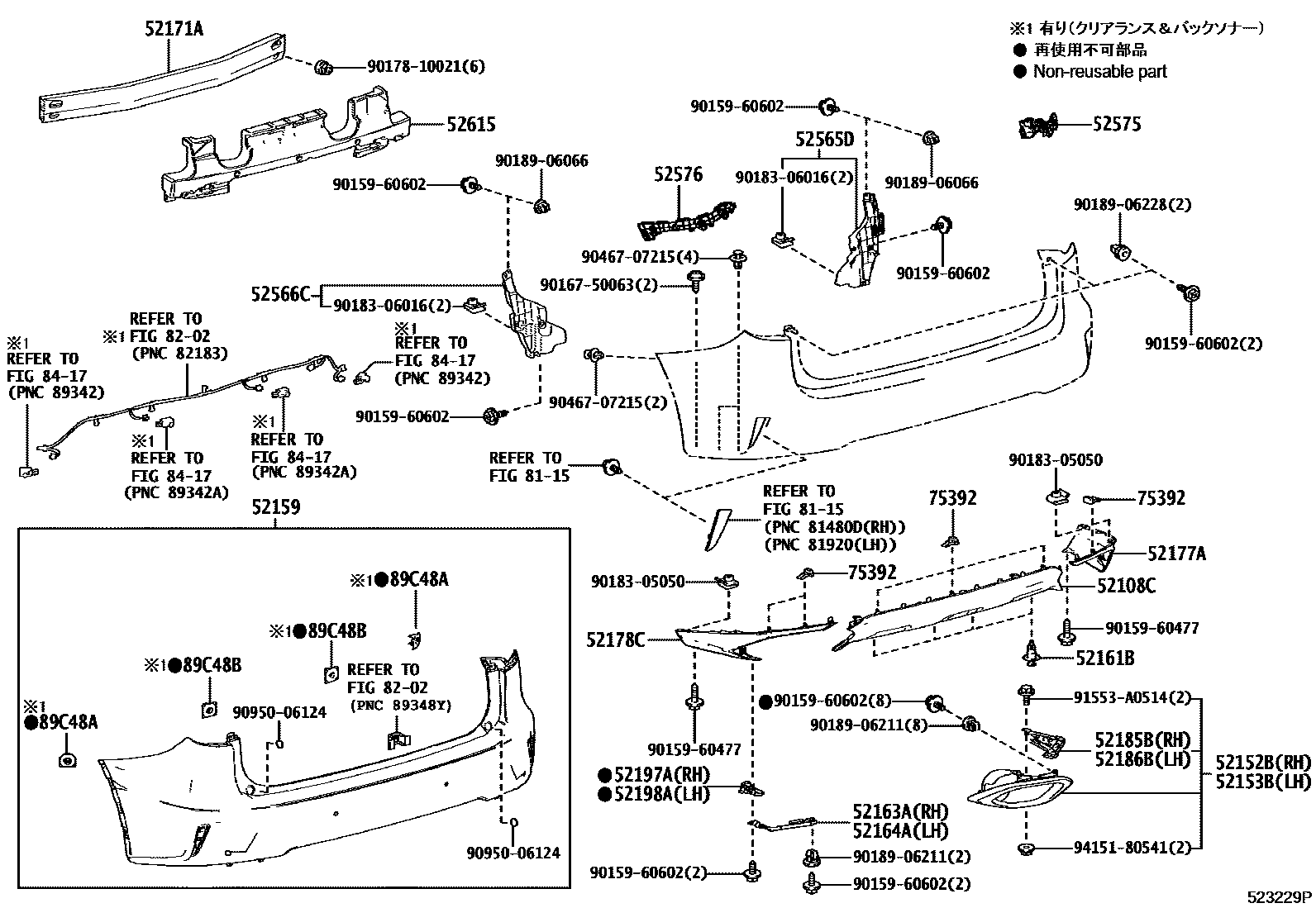

REAR BUMPER & BUMPER STAY
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52177ARETAINER, REAR BUMPER EXTENSION, RH
52178CRETAINER, REAR BUMPER EXTENSION, LH
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
75392RETAINER, OUTSIDE MOULDING
8115
8202
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9015960477
main90159-60477
9015960602
main90159-60602
9016750063
main90167-50063
9017810021
main90178-10021
9018305050
main90183-05050
9018306016
main90183-06016
9018906066
main90189-06066
9018906211
main90189-06211
9018906228
main90189-06228
9046707215
main90467-07215
9095006124
main90950-06124
91553A0514
main91553-A0514
9415180541
main94151-80541
38 parts on this diagram · 5 diagrams in section
