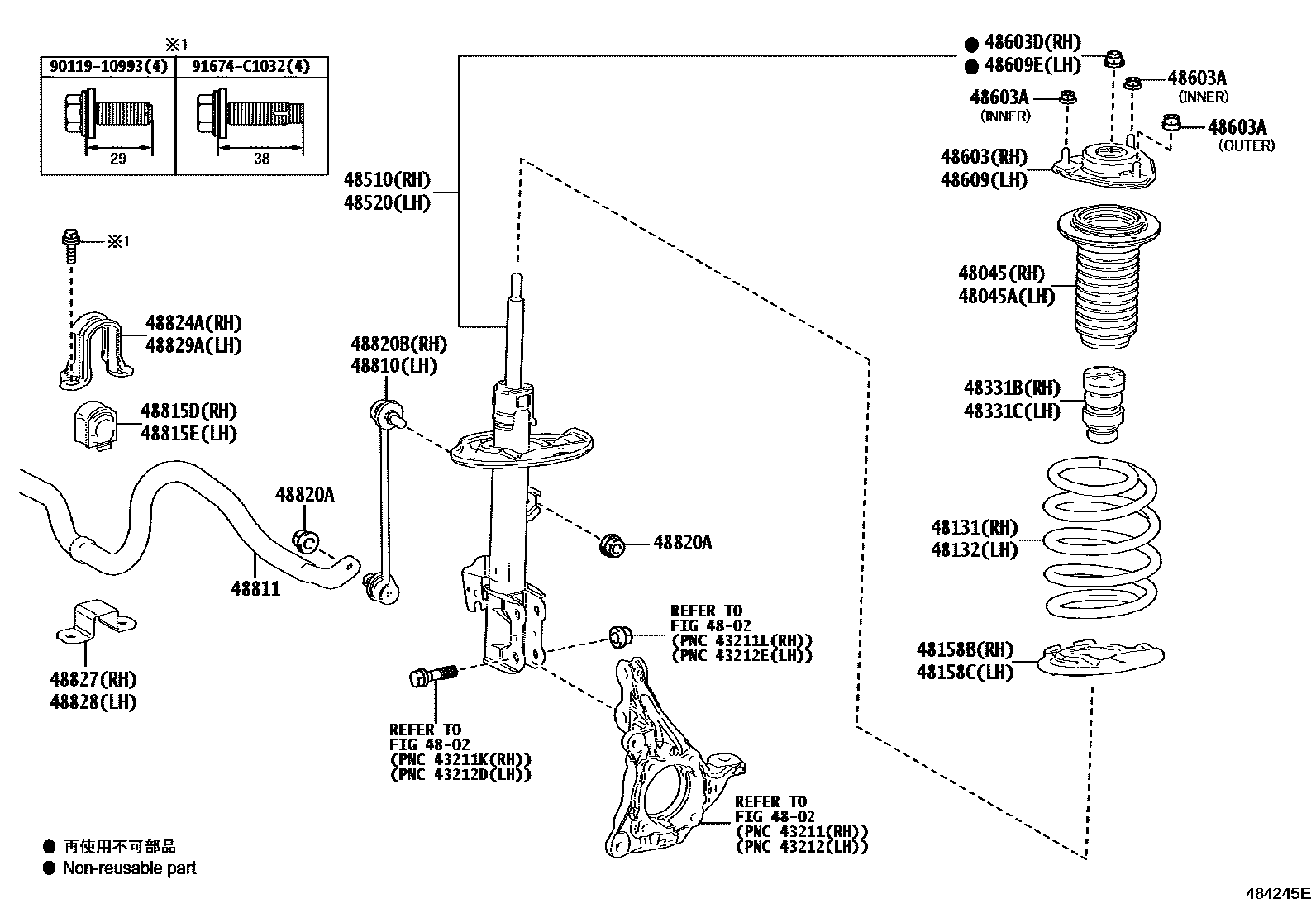

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1F SPORT & AVS(TEMS) 0003 1VERSION L

4802

48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR

main48045-48010iAGL2#,GYL2#201509-201908

48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR

main48045-48010iAGL2#,GYL2#201509-201908

48131SPRING, FRONT COIL, RH

main48131-48800iAGL25201509-201809

sub48131-48801

main48131-48801iAGL25201810-201902

sub48131-48802

main48131-48802iAGL25201903-201908

main48131-48810iGYL2#201510-201809

sub48131-48811

main48131-48811iGYL2#201810-201902

sub48131-48812

main48131-48812iGYL2#201903-201908

main48131-48820iAGL20201509-201809

sub48131-48821

main48131-48821iAGL20201810-201902

sub48131-48822

main48131-48822iAGL20201903-201908

48132SPRING, FRONT COIL, LH

main48132-48140iAGL25201509-201809

sub48132-48141

main48132-48141iAGL25201810-201902

sub48132-48142

main48132-48142iAGL25201903-201908

main48132-48150iGYL2#201510-201809

sub48132-48151

main48132-48151iGYL2#201810-201902

sub48132-48152

main48132-48152iGYL2#201903-201908

main48132-48160iAGL20201509-201809

sub48132-48161

main48132-48161iAGL20201810-201902

sub48132-48162

main48132-48162iAGL20201903-201908

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-48080iAGL2#,GYL2#201509-201908

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-48090iAGL2#,GYL2#201509-201908

48331BBUMPER, FRONT SPRING, RH

main48331-48070iAGL2#,GYL2#201509-201606

sub48331-48071

main48331-48071iAGL2#,GYL2#201607-201908

48331CBUMPER, FRONT SPRING, LH

main48331-48070iAGL2#,GYL2#201509-201606

sub48331-48071

main48331-48071iAGL2#,GYL2#201607-201908

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80784iAGL2#,GYL2#201509-201908

main48510-80A92iAGL2#,GYL2#201908

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80460iAGL2#,GYL2#201509-201908

main48520-80652iAGL2#,GYL2#201908

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-48080iAGL2#,GYL2#201509-201908

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10005iAGL2#,GYL2#201509-201908

main90178-10015iAGL2#,GYL2#201509-201908

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iAGL2#,GYL2#201509-201908

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-48080iAGL2#,GYL2#201509-201908

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iAGL2#,GYL2#201509-201908

48810LINK ASSY, FRONT STABILIZER, LH

main48820-28050iAGL2#,GYL2#201509-201908

48811BAR, STABILIZER, FRONT

main48811-48190iGYL2#201510-201908

main48811-48230iAGL2#201509-201908

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-48110iAGL2#,GYL2#201509-201908

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-48110iAGL2#,GYL2#201509-201908

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iAGL2#,GYL2#201509-201908

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-28050iAGL2#,GYL2#201509-201908

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-48030iAGL2#,GYL2#201509-201908

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-48040iAGL2#,GYL2#201509-201908

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-48040iAGL2#,GYL2#201509-201908

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-48030iAGL2#,GYL2#201509-201908

9011910993

main90119-10993

91674C1032

main91674-C1032

28 parts on this diagram · 3 diagrams in section
