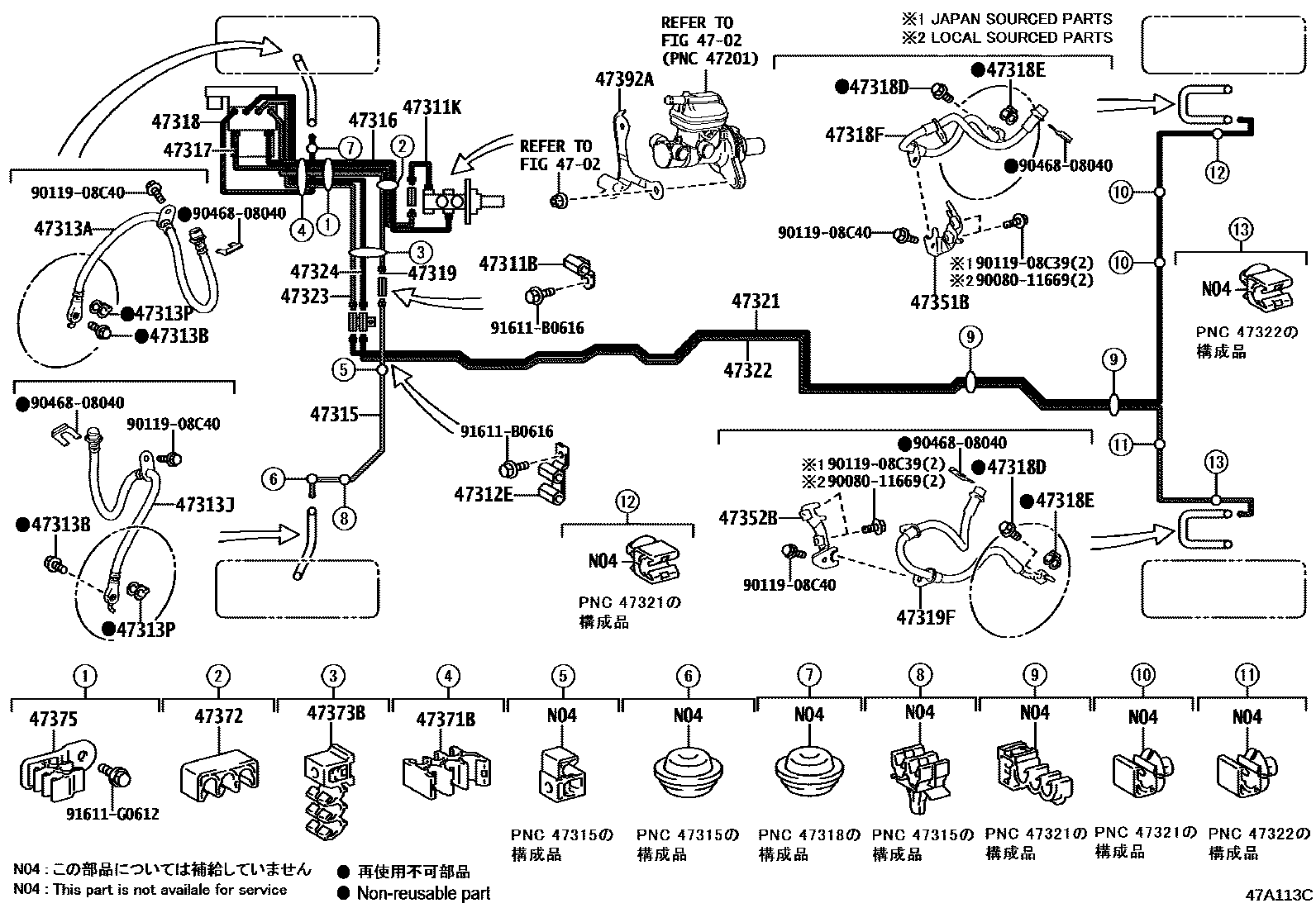

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1��(������������) 0004 1��(������������) 0005 1 0006 1 0007 1 0008 1

4702

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10272iAGL2#201509-201908

main90412-10304iGYL2#201510-201908

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-48050iAGL2#201509-201908

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10293iAGL2#,GYL2#201509-201908

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H50iAGL2#,GYL2#201509-201908

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iAGL2#,GYL2#201509-201908

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H51iAGL2#,GYL2#201509-201908

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iAGL2#,GYL2#201509-201908

47315TUBE, FRONT BRAKE, NO.5

main47315-48220iAGL2#201509-201908

main47315-48230iGYL2#201510-201908

47316TUBE, FRONT BRAKE, NO.6

main47316-48320iAGL2#201509-201712

sub47316-48321

main47316-48321iAGL2#201712-201908

main47316-48330iGYL2#201510-201908

47317TUBE, FRONT BRAKE, NO.7

main47317-48350iAGL2#201509-201712

sub47317-48351

main47317-48351iAGL2#201712-201908

main47317-48360iGYL2#201510-201908

47318TUBE, FRONT BRAKE, NO.8

main47318-48210iAGL2#201509-201908

main47318-48220iGYL2#201510-201908

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAGL2#,GYL2#201509-201908

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iAGL2#,GYL2#201509-201908

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H52iAGL2#,GYL2#201509-201908

47319TUBE, FRONT BRAKE, NO.9

main47319-48300iAGL2#201509-201908

main47319-48310iGYL2#201510-201908

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H53iAGL2#,GYL2#201509-201908

47321TUBE, REAR BRAKE, NO.1

main47321-48150iAGL2#201509-201712

main47321-48160iGYL2#201510-201712

main47321-48170iAGL2#201712-201908

main47321-48180iGYL2#201712-201908

47322TUBE, REAR BRAKE, NO.2

main47322-48160iAGL2#201509-201712

main47322-48170iGYL2#201510-201712

main47322-48180iAGL2#201712-201908

main47322-48190iGYL2#201712-201908

47323TUBE, REAR BRAKE, NO.3

main47323-48330iAGL2#201509-201908

main47323-48340iGYL2#201510-201908

47324TUBE, REAR BRAKE, NO.4

main47324-48330iAGL2#201509-201908

main47324-48340iGYL2#201510-201908

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-48020iAGL2#,GYL2#201509-201908

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-48020iAGL2#,GYL2#201509-201908

47371BCLAMP, BRAKE TUBE, NO.6

main47371-48150iGYL2#201510-201908

main90949-01D52iAGL2#201509-201908

47372CLAMP, BRAKE TUBE, NO.2

main90464-00857iAGL2#,GYL2#201509-201908

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C95iAGL2#201509-201908

main90949-01D36iGYL2#201510-201908

47375CLAMP, BRAKE TUBE, NO.5

main47371-48140iAGL2#201509-201712

main47371-48160iAGL2#201712-201908

main47371-48160iAGL2#201509-201712

main90464-00880iGYL2#201510-201908

47392AWAY, BRAKE TUBE, NO.2

main47392-48010iAGL2#201509-201908

9008011669

main90080-11669

9011908C39

main90119-08C39

9011908C40

main90119-08C40

9046808040

main90468-08040

91611B0616

main91611-B0616

91611G0612

main91611-G0612

34 parts on this diagram · 8 diagrams in section
