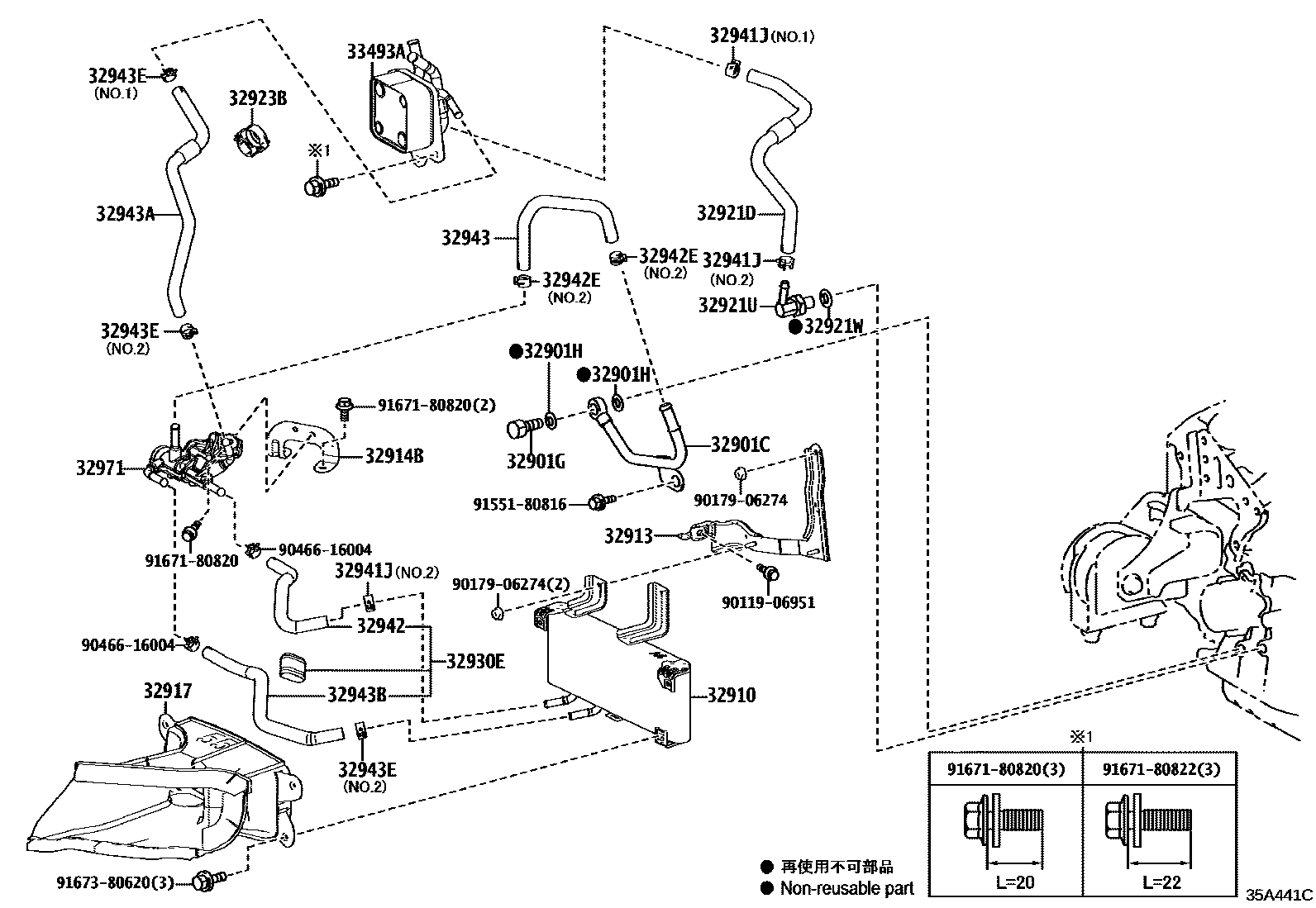

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1

32901CUNION SUB-ASSY, OIL COOLER

main32901-48010iAGL2#201509-201908

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iAGL2#201908

32901HGASKET(FOR OIL COOLER UNION)

main90430-14013×2iAGL2#201509-201908

32910COOLER ASSY, OIL

main32910-48090iAGL2#201908

main32910-48200iAGL2#201509-201908

32913BRACKET, OIL COOLER

main32913-48050iAGL2#201509-201908

main32913-48070iAGL2#201908

32914BSTAY, TRANSMISSION OIL COOLER

main32914-48020iAGL2#201509-201908

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-48060iAGL2#201509-201908

main32917-48080iAGL2#201908

32921DHOSE(FOR OIL COOLER INLET)

main32941-48070iAGL2#201509-201908

main32941-48071iAGL2#201909

32921UELBOW(FOR OIL COOLER TUBE)

main90407-14032iAGL2#201509-201908

32921WRING, O(FOR OIL COOLER TUBE ELBOW)

main90301-11031iAGL2#201509-201908

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-45010iAGL2#201509-201908

main32923-48100iAGL2#201908

32930EHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-48060iAGL2#201509-201908

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAGL2#201509-201908

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-48110iAGL2#201509-201908

main32942-48130iAGL2#201908

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iAGL2#201908

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32942-48120iAGL2#201908

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-48190iAGL2#201908-201909

main32943-48191iAGL2#201909

32943BHOSE, TRANSMISSION OIL COOLER

main32943-48140iAGL2#201908

main32943-48180iAGL2#201509-201908

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004iAGL2#201908

32971THERMOSTAT, TRANSMISSION OIL

main32971-48010iAGL2#201509-201603

main32971-48011iAGL2#201604-201908

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-48020iAGL2#201509-201908

9011906951

main90119-06951

9017906274

main90179-06274

9046616004

main90466-16004

9155180816

main91551-80816

9167180820

main91671-80820

9167180822

main91671-80822

9167380620

main91673-80620

28 parts on this diagram · 3 diagrams in section
