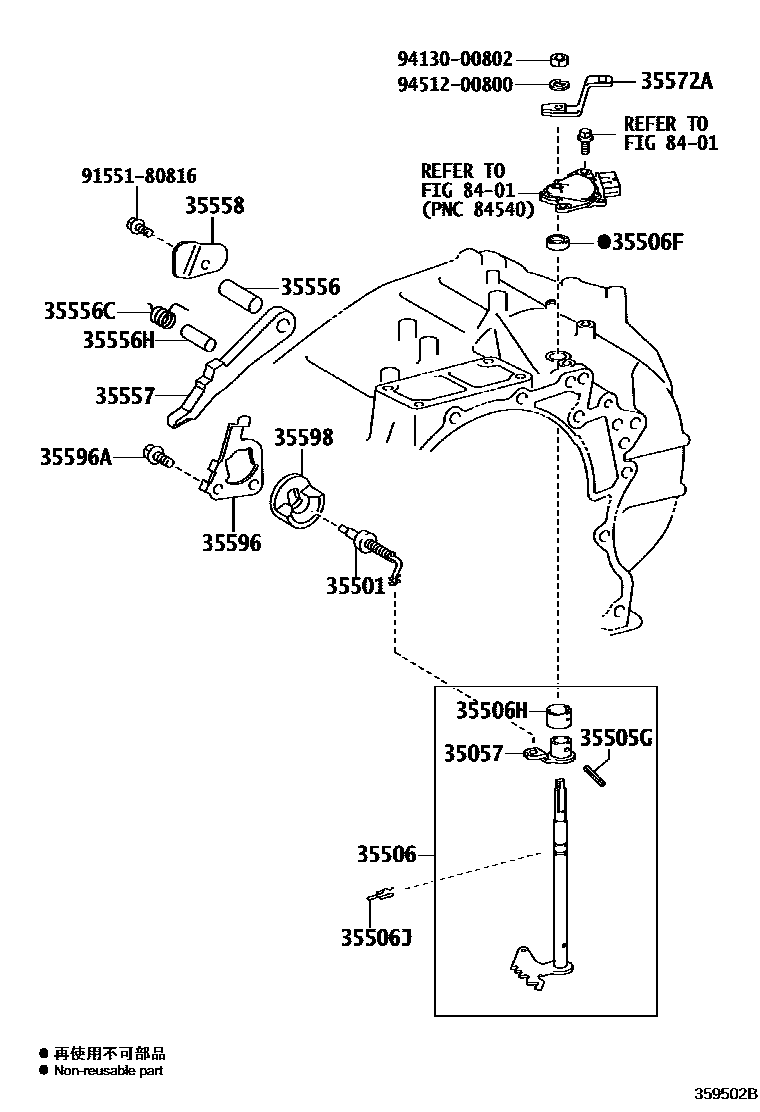

THROTTLE LINK & VALVE LEVER (ATM)
35057LEVER SUB-ASSY,PARKING LOCK
35501ROD SUB-ASSY, PARKING LOCK
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
35556HSHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35558CLAMP, PAWL SHAFT
35572ALEVER, TRANSMISSION CONTROL SHAFT
35596PLATE, PAWL STOPPER
35596ABOLT (FOR PAWL STOPPER PLATE)
35598SLEEVE, PARKING LOCK
8401
9155180816
main91551-80816
9413000802
main94130-00802
9451200800
main94512-00800
20 parts on this diagram · 1 diagram in section
