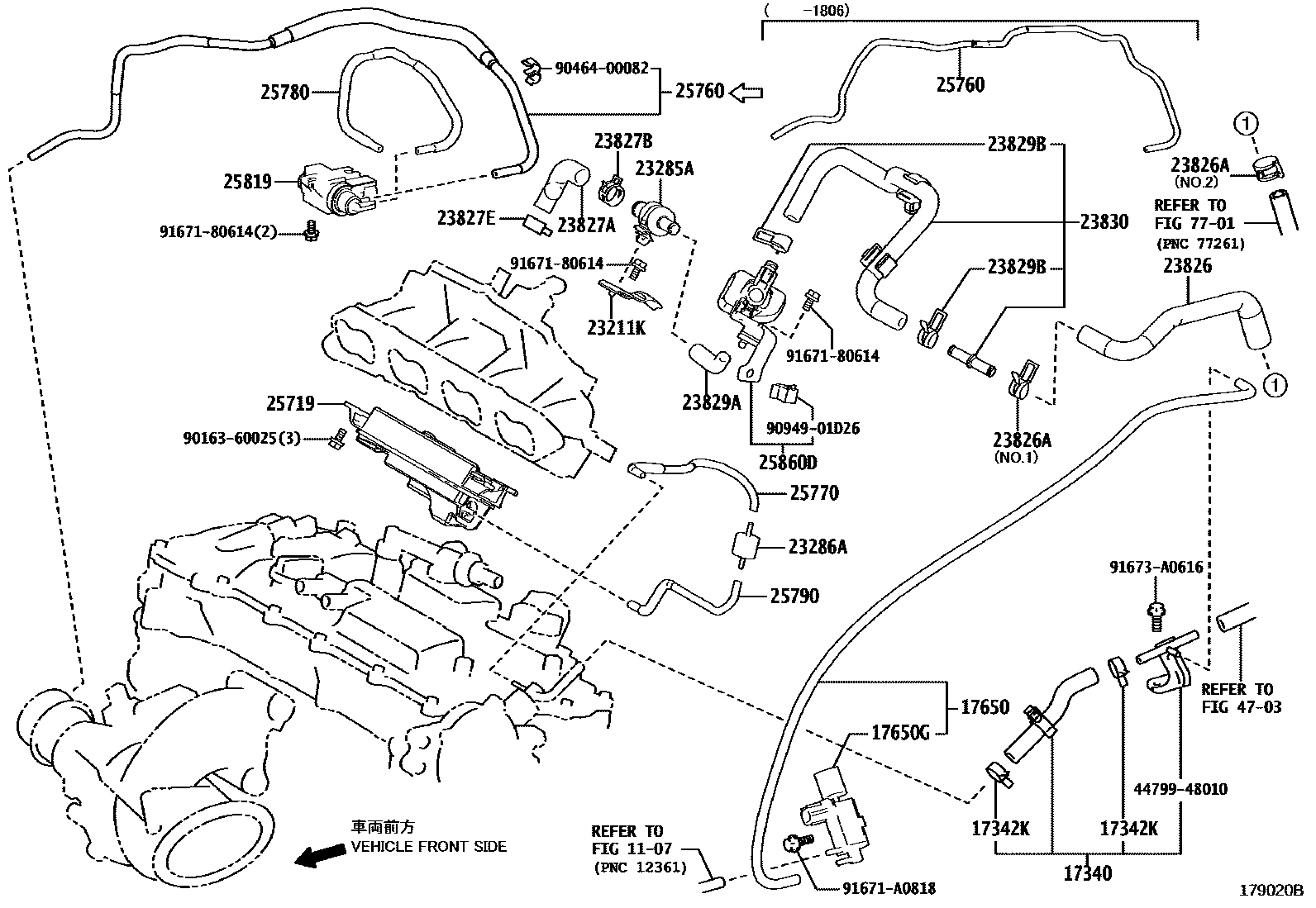

VACUUM PIPING
1107
17340HOSE ASSY, VACUUM SWITCHING VALVE
17342KCLIP(FOR VACUUM HOSE)
17650VALVE ASSY, VACUUM SWITCHING
17650GVALVE, DUTY VACUUM SWITCHING
23211KBRACKET
23285AVALVE, CHECK, NO.1
sub25748-25030
23286AVALVE, CHECK, NO.2
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
23829AHOSE, FUEL VAPOR FEED
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
25719TANK, VACUUM SURGE
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
25819VALVE ASSY, VACUUM REGULATING
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
4703
7701
4479948010WAY, BRAKE VACUUM HOSE
main44799-48010
9016360025
main90163-60025
9046400082
main90464-00082
9094901D26
main90949-01D26
9167180614
main91671-80614
91671A0818
main91671-A0818
91673A0616
main91673-A0616
33 parts on this diagram · 3 diagrams in section
