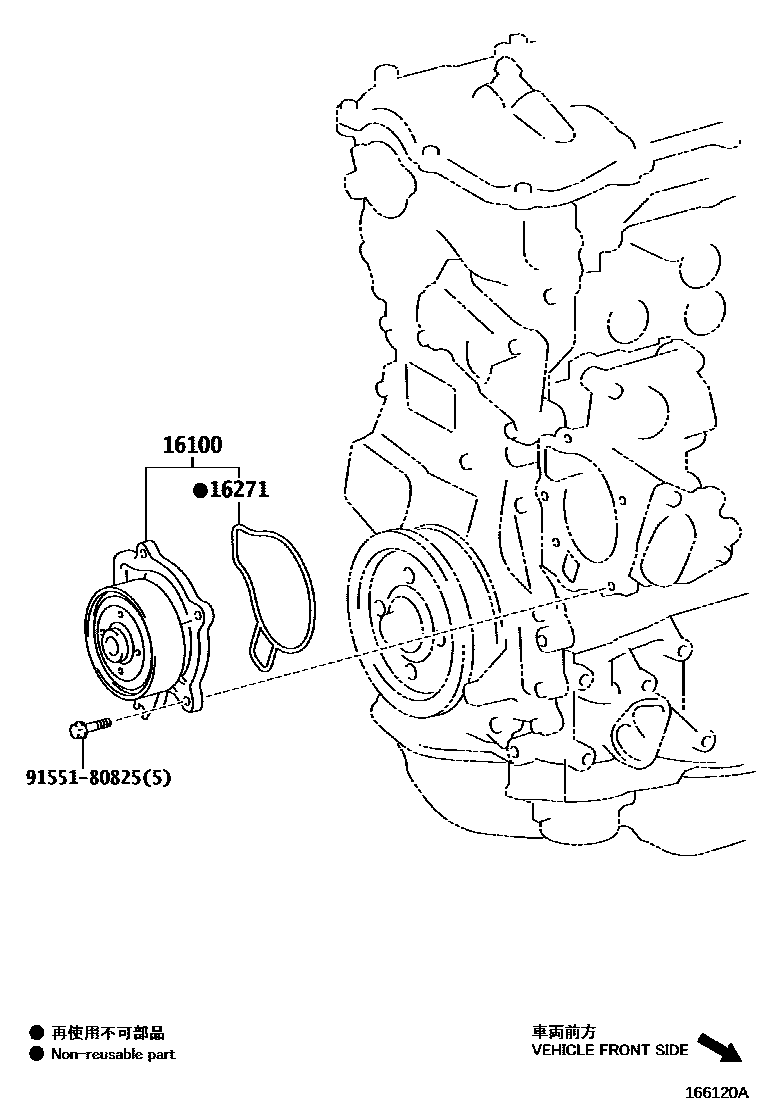

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-39595i8ARFTS..AGL2#¥9,500201509-201908

main16100-39615i2GRFXS..GYL2#¥9,500201510-202004

sub16100-39616¥9,500

main16100-39616i2GRFXS..GYL2#¥9,500202004

16271GASKET, WATER PUMP

main16271-31050i2GRFXS..GYL2#¥1,740201510-201908

main16271-36040i8ARFTS..AGL2#¥340201509-201908

9155180825

main91551-80825¥80

3 parts on this diagram · 2 diagrams in section
