CYLINDER HEAD

0001 1������������� & ��������� 0002 1��������� 0003 1������������ 0004 1CYLINDER HEAD(LH BANK) 0005 1CYLINDER HEAD(RH BANK) 0006 1CYLINDER HEAD COVER 0007 1ENGINE COVER & V BANK COVER

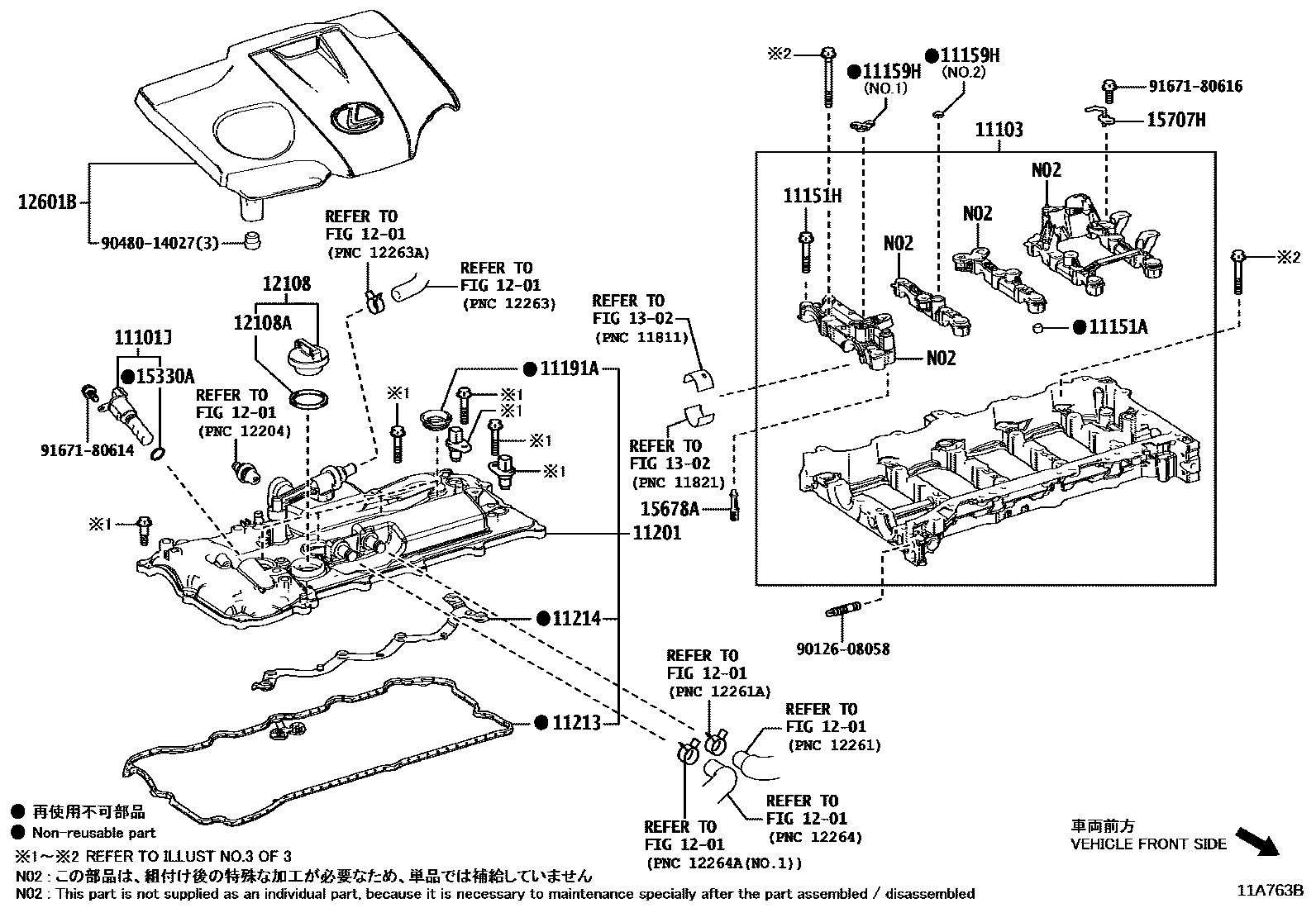

11101HEAD SUB-ASSY, CYLINDER

main11101-39845i8ARFTS..AGL2#¥129,000201509-201708

sub11101-39846¥129,000

sub13715-36041¥2,220

main11101-39846i8ARFTS..AGL2#¥129,000201708-201808

sub11101-39847¥129,000

main11101-39847i8ARFTS..AGL2#¥129,000201808-202003

sub11101-39848¥107,000

main11101-39848i8ARFTS..AGL2#¥107,000202003-202110

sub11101-80014¥107,000

main11101-39865i2GRFXS..GYL2#¥115,000201510-202105

sub11101-39866¥115,000

main11101-39866i2GRFXS..GYL2#¥115,000202105

sub11101-80015¥104,000

sub90345-51006¥100

main11101-80014i8ARFTS..AGL2#¥107,000202110

sub11101-80020

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-37010i8ARFTS..AGL2#¥7,300201509-201908

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-36040i8ARFTS..AGL2#¥31,500201509-202204

sub11103-36050¥28,600

11151PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)

main90253-11021i2GRFXS..GYL2#¥120201510-201908

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-13005i8ARFTS..AGL2#¥50201509-202204

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009i8ARFTS..AGL2#¥90201509-202204

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-36011i8ARFTS..AGL2#¥340201509-201908

main90430-10024i8ARFTS..AGL2#¥80201509-201908

11191AGASKET(FOR SPARK PLUG TUBE)

main11193-31010i8ARFTS..AGL2#¥230201509-201908

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-31300i2GRFXS..GYL2#¥21,900201510-201609

sub11201-31301¥18,200

main11201-31301i2GRFXS..GYL2#¥18,200201610-201909

sub11201-31302¥13,800

main11201-31302i2GRFXS..GYL2#¥13,800201910

main11201-36061i8ARFTS..AGL2#¥15,400201509-201908

11213GASKET, CYLINDER HEAD COVER

main11213-31070i2GRFXS..GYL2#¥930201510-201909

sub11213-31090¥700

main11213-31090i2GRFXS..GYL2#¥700201910

main11213-36050i8ARFTS..AGL2#¥790201509-201908

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-31050i2GRFXS..GYL2#¥930201510-201909

sub11214-31070¥700

main11214-31070i2GRFXS..GYL2#¥700201910

main11214-36020i8ARFTS..AGL2#¥370201509-201908

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i8ARFTS..AGL2#¥640201509-201908

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i2GRFXS..GYL2#¥120201509-201908

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-31050i2GRFXS..GYL2#¥2,150201510-201908

main12601-36200i8ARFTS..AGL2#¥11,900201509-201908

1302

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i8ARFTS..AGL2#¥0201509-201908

15678AFILTER, OIL CONTROL VALVE

main15678-37010i8ARFTS..AGL2#¥540201509-201908

15707HPIPE SUB-ASSY, OIL

main15707-36010i8ARFTS..AGL2#¥230201509-201908

9012608058

main90126-08058¥80

9048014027

main90480-14027¥120

9167180614

main91671-80614¥60

9167180616

main91671-80616¥60
