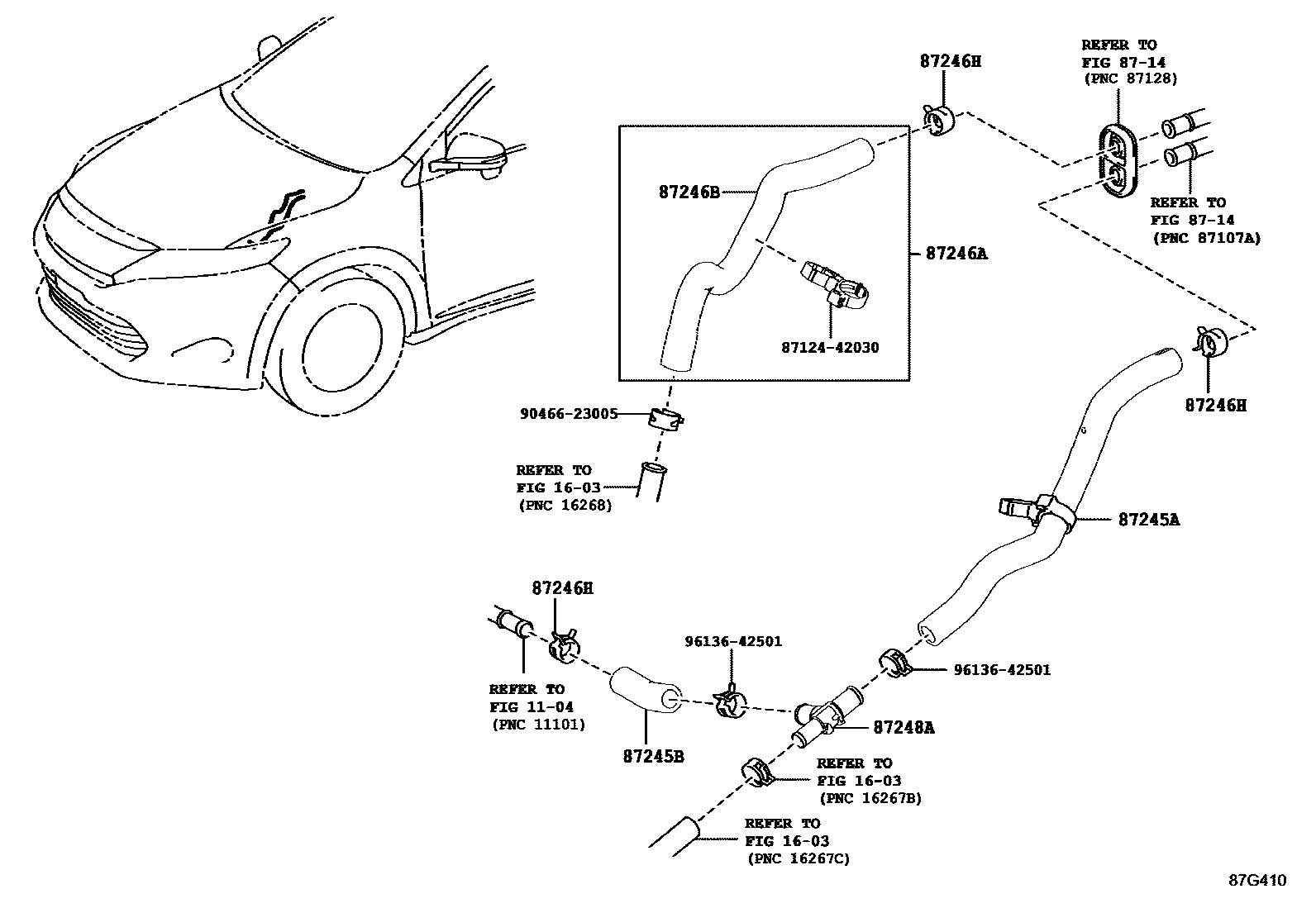

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-48310iASU6#201705

87245AHOSE, HEATER WATER, INLET A

main87245-48B40iAVU65201401-201705

main87245-48C90iZSU6#201312-201705

87245BHOSE, HEATER WATER, INLET B

main87209-48270iAVU65201401-201705

main87245-42440iZSU6#201312-201705

87246AHOSE, HEATER WATER, OUTLET A

main87245-48B50iAVU65201401-201705

main87245-48B60iZSU6#201312-201705

main87245-48F80iASU6#201705

87246BHOSE, HEATER WATER, OUTLET B

main87245-48E70iZSU6#201312-201705

main87245-78030iASU6#201705-201708

main87245-78031iASU6#201709

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96136-42501iZSU6#201312-201511

main96138-42501iZSU6#201511-201705

87248APIPE, HEATER WATER INLET, A

main87248-12310iZSU6#201312-201705

8712442030CLAMP, HEATER

main87124-42030

9046623005

main90466-23005

9613642501

main96136-42501

13 parts on this diagram · 3 diagrams in section
