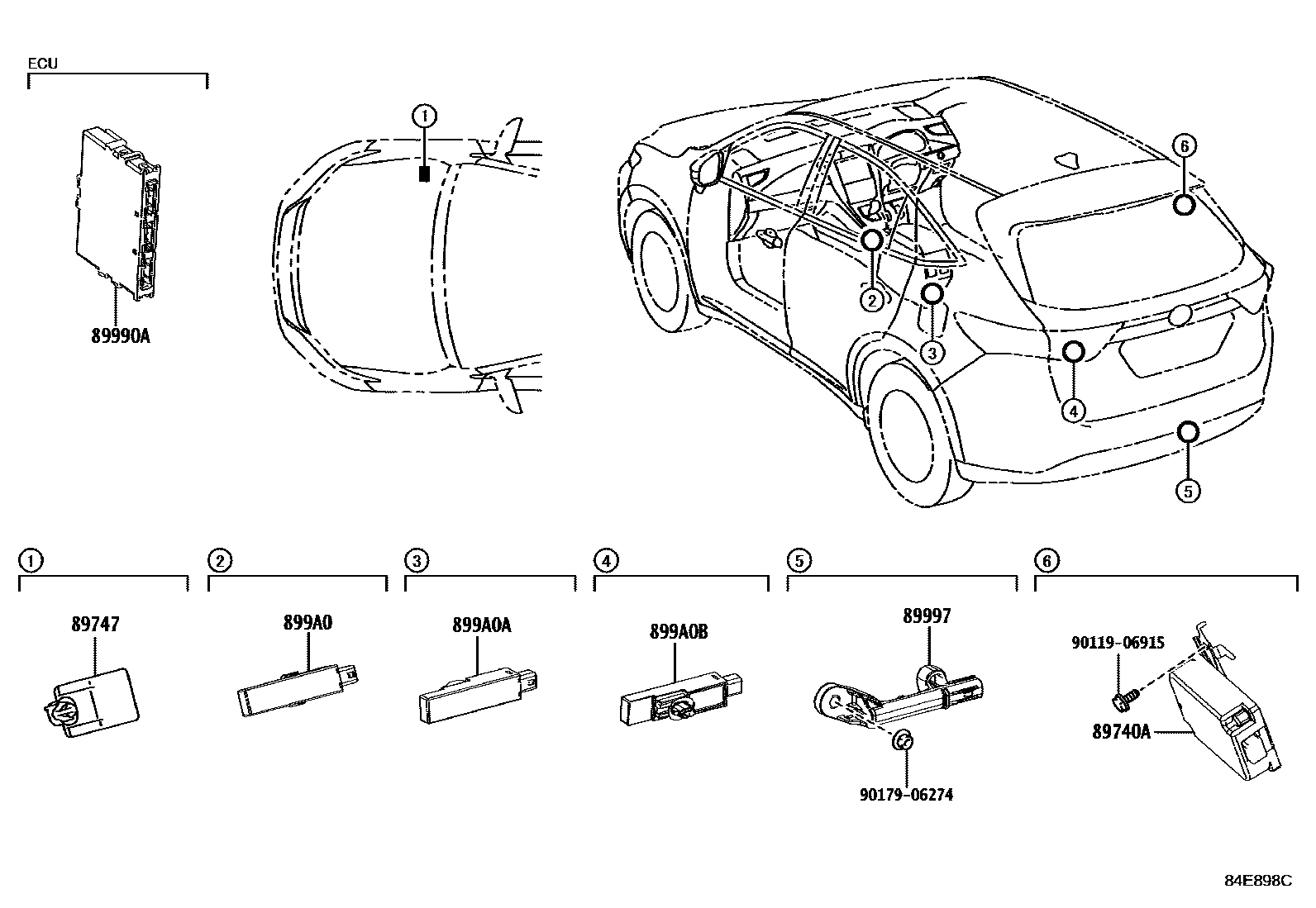

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-48230iAVU65,ZSU6#201312-201705

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAVU65,ZSU6#201312-201705

89990ACOMPUTER ASSY, SMART KEY

main89990-48410iZSU6#201312-201411

main89990-48411iZSU6#201411-201705

main89990-48420iAVU65201401-201411

main89990-48421iAVU65201411-201705

main89990-48490iASU6#,ZSU6#201705

main89990-48500iAVU65201705

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAVU65,ZSU6#201312-201705

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iAVU65,ZSU6#201312-201705

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iAVU65,ZSU6#201312-201705

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iAVU65,ZSU6#201312-201705

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
