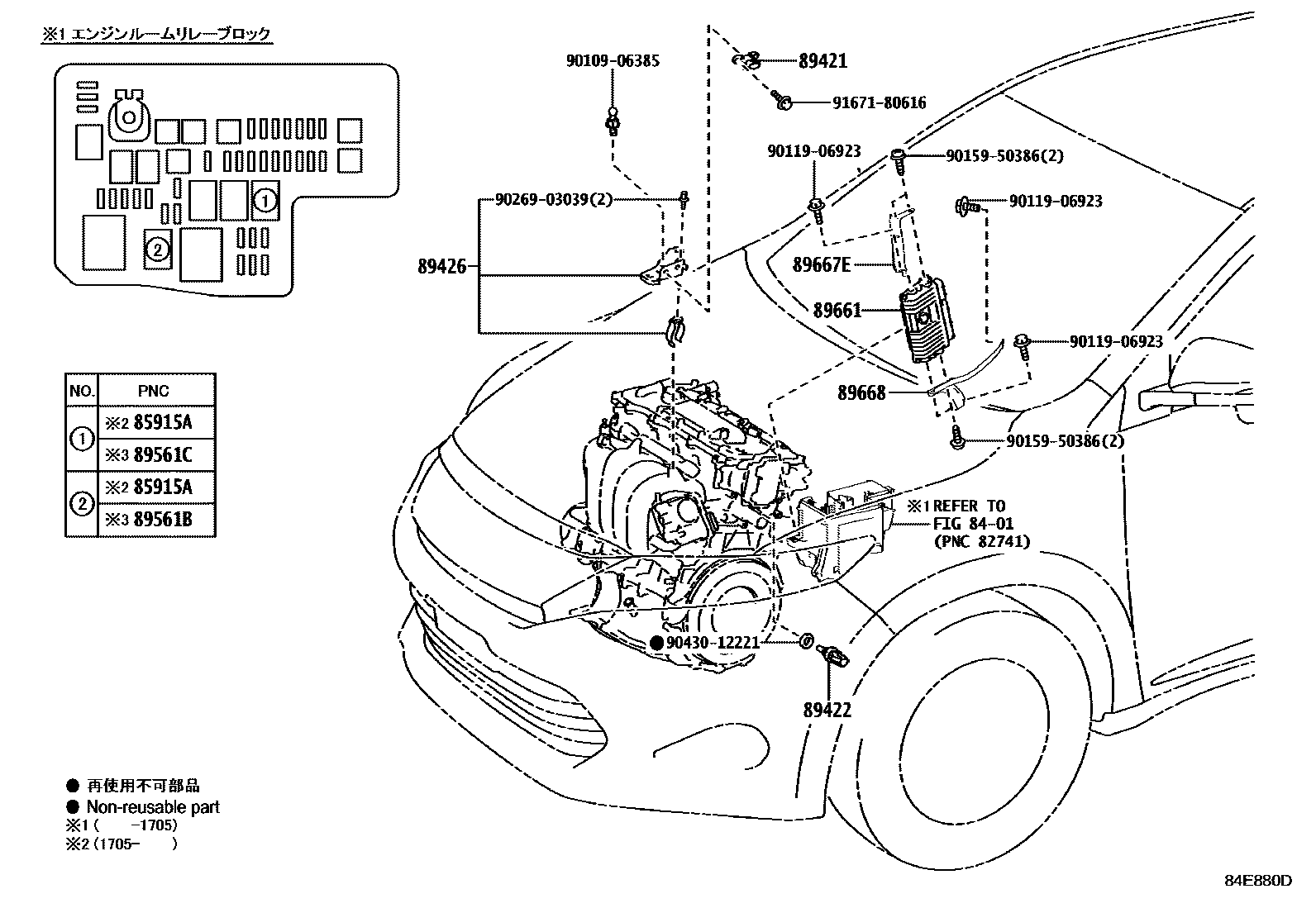

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85915ARELAY, MAIN

main90987-02027iZSU6#201312-201705

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iAVU65,ZSU6#201705

main89421-26030iAVU65,ZSU6#201312-201705

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iASU6#,AVU65,ZSU6#201705

main89422-33030iAVU65,ZSU6#201312-201705

89426BRACKET, VACUUM SENSOR

main89426-13020iZSU6#201312-201705

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02027iASU6#,AVU65,ZSU6#201705

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iASU6#,AVU65,ZSU6#201705

89661COMPUTER, ENGINE CONTROL

main89661-48P60iAVU65201401-201705

main89661-48P70iZSU60201312-201603

sub89661-48P71

main89661-48P71iZSU60201603-201705

main89661-48P80iZSU65201312-201603

sub89661-48P81

main89661-48P81iZSU65201603-201705

main89661-48T60iZSU60201705

main89661-48T70iZSU65201705

main89661-48T80iASU60201705-201909

sub89661-48T81

main89661-48T81iASU60201910

main89661-48T90iASU65201705-201909

sub89661-48T91

main89661-48T91iASU65201910

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42060iAVU65,ZSU6#201312-201705

main89667-78010iASU6#201705

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48160iZSU6#201312-201705

main89668-48180iAVU65201401-201705

main89668-78010iASU6#201705

9010906385

main90109-06385

9011906923

main90119-06923

9015950386

main90159-50386

9026903039

main90269-03039

9043012221

main90430-12221

9167180616

main91671-80616

16 parts on this diagram · 3 diagrams in section
