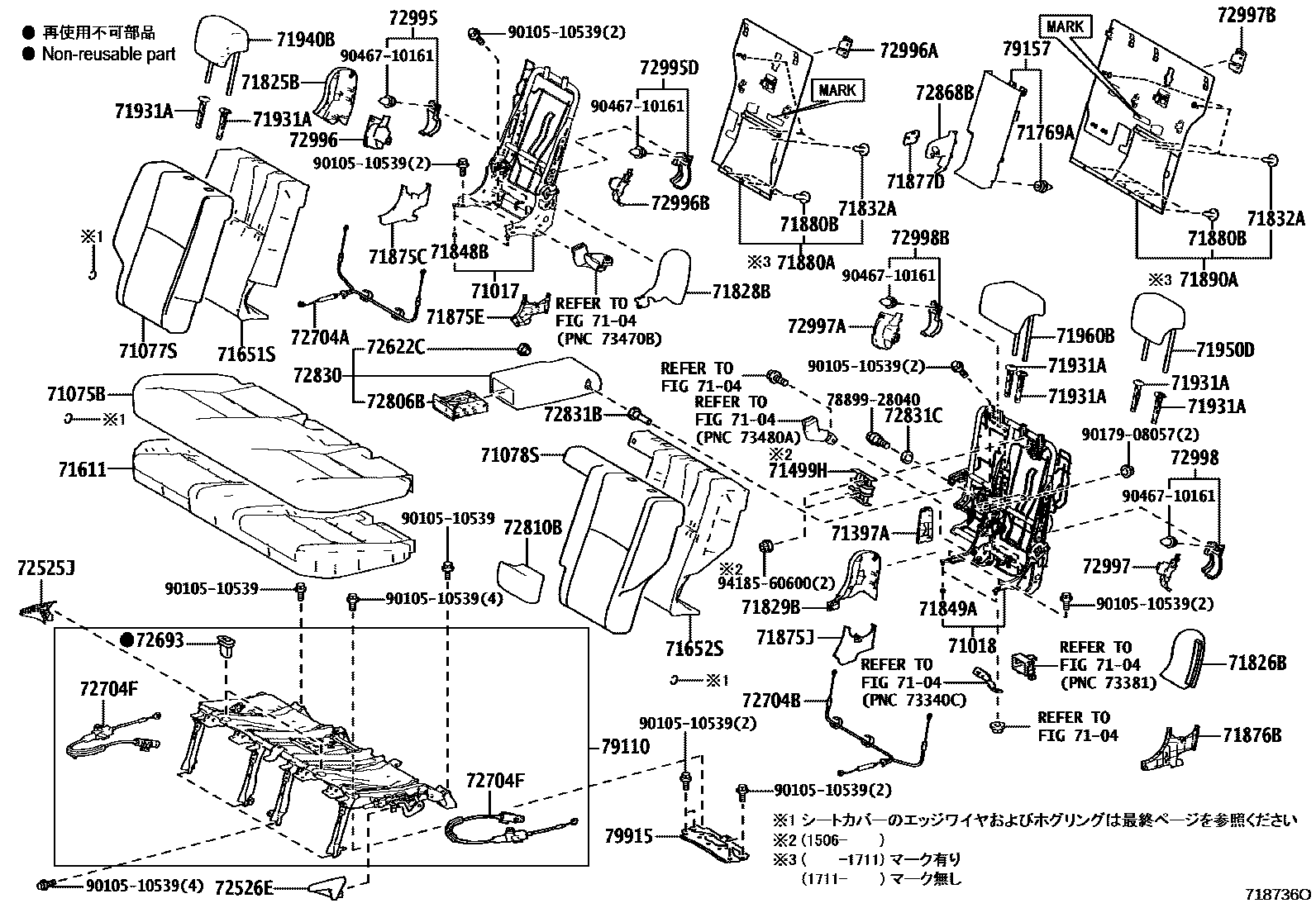

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1�������������� & �������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-48200iAVU65,ZSU6#201312-201908

sub71017-48201

main71017-48201iASU6#,AVU65,ZSU6#201909-202005

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-48160iAVU65,ZSU6#201312-201506

main71018-48161iAVU65,ZSU6#201506-201908

sub71018-48162

main71018-48162iASU6#,AVU65,ZSU6#201909-202005

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-48570-C2iAVU65,ZSU6#..GRAND201312-201412

BLACK,TRIM2#,4#

sub71075-48570

main71075-48570-C3iAVU65,ZSU6#..GRAND201412-201705

BLACK,TRIM2#,4#

sub71075-48570

main71075-48580-A2iAVU65,ZSU6#..ELEGC,PREM201312-201412

IVORY,TRIM0#

sub71075-48580

sub71075-48581

main71075-48580-A3iAVU65,ZSU6#..ELEGC,PREM201412-201705

IVORY,TRIM0#

sub71075-48580

sub71075-48581

main71075-48580-C2iAVU65,ZSU6#..ELEGC,PREM201312-201412

BLACK,TRIM2#,4#

sub71075-48580

sub71075-48581

main71075-48580-C5iAVU65,ZSU6#..ELEGC,PREM201412-201705

BLACK,TRIM2#,4#

sub71075-48580

sub71075-48581

main71075-48590-C3iAVU65,ZSU6#..ELEGC,PREM201312-201412

sub71075-48590

main71075-48590-C4iAVU65,ZSU6#..ELEGC,PREM201412-201705

sub71075-48590

main71075-48730-C0iZSU6#..ELEGC201501-201705

sub71075-48731

main71075-48740-C0iAVU65,ZSU6#..PREM201506-201606

main71075-48750-B0iAVU65,ZSU6#..PREM201606-201705

main71075-48760-C0iAVU65,ZSU6#..PREM,PROGR201705-202005

sub71075-48761

main71075-48760-C0iAVU65,ZSU6#..PROGR201809-201907

sub71075-48761

main71075-48760-C1iASU6#..PROGR201809-201907

sub71075-48761

main71075-48760-C1iASU6#..PREM,PROGR201705-202005

sub71075-48761

main71075-48760-C2iASU6#,AVU65,ZSU6#..PROGR201809-201907

sub71075-48761

main71075-48760-C2iASU6#,AVU65,ZSU6#..PROGR201809-201907

sub71075-48761

main71075-48760-E2iAVU65,ZSU6#..PROGR201809-201907

sub71075-48761

main71075-48760-E2iAVU65,ZSU6#..PREM,PROGR201705-202005

sub71075-48761

main71075-48770-C0iASU6#201705-202005

BLACK REDPERFORATION,TRIM2#

main71075-48770-C1iASU6#..PROGR201809-201907

BLUE BLACK PERFORATION,TRIM8#

main71075-48A00-C0iZSU6#..PREM201705-202005

BLACK,TRIM2#,43

sub71075-48A01

main71075-48A00-C0iZSU6#..PREM201907-202005

BLACK,TRIM20,43

sub71075-48A01

main71075-48A00-C1iAVU65,ZSU6#..PROGR201809-201907

BLACK/BLACK/BLUE,TRIM8#

sub71075-48A01

main71075-48A00-C3iZSU6#..PREM201907-202005

BLACK/GRAY,TRIM23

sub71075-48A01

main71075-48A00-E0iAVU65,ZSU6#201705-202005

DK.SADDLE TAN,TRIM45

sub71075-48A01

main71075-48A30-C0iASU65,ZSU6#..ELEGC201708-201802

sub71075-48A30

sub71075-48A31

main71075-48A30-C1iASU65,ZSU6#..ELEGC201802-202005

sub71075-48A30

sub71075-48A31

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-48840-C1iAVU65,ZSU6#..GRAND201312-201412

BLACK,TRIM2#,4#

sub71077-48840

main71077-48840-C2iAVU65,ZSU6#..GRAND201412-201506

BLACK,TRIM2#,4#

sub71077-48840

main71077-48840-C3iAVU65,ZSU6#..GRAND201506-201705

BLACK,TRIM2#,4#

sub71077-48840

main71077-48850-A1iAVU65,ZSU6#..ELEGC,PREM201312-201412

IVORY,TRIM0#

sub71077-48850

sub71077-48851

main71077-48850-A2iAVU65,ZSU6#..ELEGC,PREM201412-201506

IVORY,TRIM0#

sub71077-48850

sub71077-48851

main71077-48850-A3iAVU65,ZSU6#..ELEGC,PREM201506-201705

IVORY,TRIM0#

sub71077-48850

sub71077-48851

main71077-48850-C1iAVU65,ZSU6#..ELEGC,PREM201312-201412

BLACK,TRIM2#,4#

sub71077-48850

sub71077-48851

main71077-48850-C4iAVU65,ZSU6#..ELEGC,PREM201412-201506

BLACK,TRIM2#,4#

sub71077-48850

sub71077-48851

main71077-48850-C5iAVU65,ZSU6#..ELEGC,PREM201506-201705

BLACK,TRIM2#,4#

sub71077-48850

sub71077-48851

main71077-48860-C2iAVU65,ZSU6#..ELEGC,PREM201312-201412

sub71077-48860

sub71077-48862

main71077-48860-C3iAVU65,ZSU6#..ELEGC,PREM201412-201506

sub71077-48860

sub71077-48862

main71077-48860-C4iAVU65,ZSU6#..ELEGC,PREM201506-201602

sub71077-48860

sub71077-48862

main71077-48861-C6iAVU65,ZSU6#..ELEGC,PREM201602-201705

main71077-48A80-C1iZSU6#..ELEGC201501-201705

sub71077-48A81

main71077-48B60-C1iAVU65,ZSU6#..PREM201506-201606

main71077-48C30-B0iAVU65,ZSU6#..PREM201606-201705

main71077-48C40-C2iAVU65,ZSU6#..PREM,PROGR201705-201803

sub71077-48C44

main71077-48C40-C3iASU6#..PREM,PROGR201705-201803

sub71077-48C44

main71077-48C40-E2iAVU65,ZSU6#..PREM,PROGR201705-201803

sub71077-48C44

main71077-48C41-C4iAVU65,ZSU6#..PREM,PROGR201803-202005

main71077-48C41-C4iAVU65,ZSU6#..PROGR201809-201907

main71077-48C41-C5iASU6#..PREM,PROGR201803-202005

main71077-48C41-C5iASU6#..PROGR201809-201907

main71077-48C41-C6iASU6#,AVU65,ZSU6#..PROGR201809-201907

main71077-48C41-C6iASU6#,AVU65,ZSU6#..PROGR201809-202005

main71077-48C41-E3iAVU65,ZSU6#..PROGR201809-201907

main71077-48C41-E3iAVU65,ZSU6#..PREM,PROGR201803-202005

main71077-48C50-C2iASU6#201705-201803

BLACK REDPERFORATION,TRIM2#

main71077-48C51-C1iASU6#201803-202005

BLACK REDPERFORATION,TRIM2#

main71077-48C51-C3iASU6#..PROGR201809-202005

BLUE BLACK PERFORATION,TRIM8#

main71077-48E10-C2iAVU65,ZSU6#201705-201803

BLACK,TRIM2#,43

sub71077-48E14

main71077-48E10-E2iAVU65,ZSU6#201705-201803

DK.SADDLE TAN,TRIM45

sub71077-48E14

main71077-48E11-C1iAVU65,ZSU6#201803-202005

BLACK,TRIM2#,43

main71077-48E11-C3iAVU65,ZSU6#..PROGR201809-202005

BLACK/BLUE,TRIM8#

main71077-48E11-E1iAVU65,ZSU6#201803-202005

DK.SADDLE TAN,TRIM45

main71077-48E20-C0iASU65,ZSU6#..ELEGC201708-202005

sub71077-48E21

sub71077-48E20

main71077-48E20-C1iASU65,ZSU6#..ELEGC201711-201802

sub71077-48E21

sub71077-48E20

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-48750-C1iAVU65,ZSU6#..GRAND201312-201412

BLACK,TRIM2#,4#

sub71078-48751

main71078-48750-C2iAVU65,ZSU6#..GRAND201412-201506

BLACK,TRIM2#,4#

sub71078-48751

main71078-48751-C3iAVU65,ZSU6#..GRAND201506-201705

BLACK,TRIM2#,4#

main71078-48760-A1iAVU65,ZSU6#..ELEGC,PREM201312-201412

IVORY,TRIM0#

sub71078-48760

sub71078-48761

main71078-48760-A2iAVU65,ZSU6#..ELEGC,PREM201412-201506

IVORY,TRIM0#

sub71078-48760

sub71078-48761

main71078-48760-C1iAVU65,ZSU6#..ELEGC,PREM201312-201412

BLACK,TRIM2#,4#

sub71078-48760

sub71078-48761

main71078-48760-C4iAVU65,ZSU6#..ELEGC,PREM201412-201506

BLACK,TRIM2#,4#

sub71078-48760

sub71078-48761

main71078-48761-A3iAVU65,ZSU6#..ELEGC,PREM201506-201705

IVORY,TRIM0#

sub71078-48762

main71078-48761-C5iAVU65,ZSU6#..ELEGC,PREM201506-201705

BLACK,TRIM2#,4#

sub71078-48762

main71078-48770-C2iAVU65,ZSU6#..ELEGC,PREM201312-201412

sub71078-48770

sub71078-48771

main71078-48770-C3iAVU65,ZSU6#..ELEGC,PREM201412-201506

sub71078-48770

sub71078-48771

main71078-48771-C4iAVU65,ZSU6#..ELEGC,PREM201506-201602

sub71078-48773

main71078-48772-C6iAVU65,ZSU6#..ELEGC,PREM201602-201705

main71078-48880-C1iZSU6#..ELEGC201501-201506

sub71078-48881

main71078-48881-C1iZSU6#..ELEGC201506-201705

sub71078-48882

main71078-48A61-C1iAVU65,ZSU6#..PREM201506-201606

main71078-48B30-B0iAVU65,ZSU6#..PREM201606-201705

main71078-48B40-C2iAVU65,ZSU6#..PREM,PROGR201705-201803

sub71078-48B43

main71078-48B40-C3iASU6#..PREM,PROGR201705-201803

sub71078-48B43

main71078-48B40-E2iAVU65,ZSU6#..PREM,PROGR201705-201803

sub71078-48B43

main71078-48B41-C4iAVU65,ZSU6#..PREM,PROGR201803-202005

main71078-48B41-C4iAVU65,ZSU6#..PROGR201809-201907

main71078-48B41-C5iASU6#..PREM,PROGR201803-202005

main71078-48B41-C5iASU6#..PROGR201809-201907

main71078-48B41-C6iASU6#,AVU65,ZSU6#..PROGR201809-202005

main71078-48B41-C6iASU6#,AVU65,ZSU6#..PROGR201809-201907

main71078-48B41-E3iAVU65,ZSU6#..PROGR201809-201907

main71078-48B41-E3iAVU65,ZSU6#..PREM,PROGR201803-202005

main71078-48B50-C2iASU6#201705-201803

BLACK REDPERFORATION,TRIM2#

main71078-48B51-C1iASU6#201803-202005

BLACK REDPERFORATION,TRIM2#

main71078-48B51-C3iASU6#..PROGR201809-202005

BLUE BLACK PERFORATION,TRIM8#

main71078-48D20-C2iAVU65,ZSU6#201705-201803

BLACK,TRIM2#,43

sub71078-48D24

main71078-48D20-E2iAVU65,ZSU6#201705-201803

DK.SADDLE TAN,TRIM45

sub71078-48D24

main71078-48D21-C1iAVU65,ZSU6#201803-202005

BLACK,TRIM2#,43

main71078-48D21-C3iAVU65,ZSU6#..PROGR201809-202005

BLACK/BLUE,TRIM8#

main71078-48D21-E1iAVU65,ZSU6#201803-202005

DK.SADDLE TAN,TRIM45

main71078-48D30-C0iASU65,ZSU6#..ELEGC201708-202005

sub71078-48D31

sub71078-48D30

main71078-48D30-C1iASU65,ZSU6#..ELEGC201711-201802

sub71078-48D31

sub71078-48D30

71397ACOVER, CENTER SEAT HINGE

main71397-48040-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71397-48040-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71397-48040-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71397-48040-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71397-48040-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71397-48040-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71499HDAMPER, REAR SEATBACK SPRING, LH

main71499-48090iAVU65,ZSU6#201506-202005

71611PAD, REAR SEAT CUSHION

main71503-48010iAVU65,ZSU6#201312-202005

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-48230iAVU65,ZSU6#201312-201612

sub71651-48290

main71651-48290iAVU65,ZSU6#201701-202005

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-48200iAVU65,ZSU6#201312-201612

sub71652-48260

main71652-48260iAVU65,ZSU6#201701-202005

71769ACLIP, REAR SEATBACK BOARD

main71769-47020iAVU65,ZSU6#201312-202005

71825BMOULDING, REAR SEAT CUSHION, RH

main71825-48070-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71825-48070-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71825-48070-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71825-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71825-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71825-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71826BMOULDING, REAR SEAT CUSHION, LH

main71826-48060-C0iAVU65,ZSU6#..PROGR201705-202005

BLACK,TRIM2#,4#,8#

main71826-48060-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71826-48060-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71826-48060-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71826-48060-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71826-48060-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

71828BMOULDING, REAR SEAT CUSHION, REAR RH

main71828-48110-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71828-48110-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71828-48110-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71828-48110-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71828-48110-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71828-48110-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71829BMOULDING, REAR SEAT CUSHION, REAR LH

main71829-48090-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71829-48090-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71829-48090-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71829-48090-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71829-48090-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71829-48090-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71832ACLIP, REAR SEATBACK CARPET OR MAT

main71769-48010iAVU65,ZSU6#201312-202005

71848BCAP, SEAT ADJUSTER COVER, RH

main71848-78010iAVU65,ZSU6#201312-202005

71849ACAP, SEAT ADJUSTER COVER, LH

main71848-78010iAVU65,ZSU6#201312-202005

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-48090-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71875-48090-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71875-48090-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71875-48090-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71875-48090-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71875-48090-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-48100-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71875-48100-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71875-48100-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71875-48100-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71875-48100-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71875-48100-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71875JCOVER, RECLINING ADJUSTER INSIDE, RH

main71876-48090-C0iASU6#..PROGR201705-202005

BLACK,TRIM2#,8#

main71876-48090-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71876-48090-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71876-48090-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71876-48090-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71876-48090-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-48080-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71876-48080-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71876-48080-C0iAVU65,ZSU6#..ELEGC201312-202005

BLACK,TRIM2#,4#

main71876-48080-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71876-48080-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71876-48080-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71877DCOVER, REAR SEAT ARMREST HOLE

main71877-48010-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main71877-48010-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main71877-48010-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main71877-48010-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71877-48010-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71877-48010-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-48270-C0iAVU65,ZSU6#201705-201711

main71880-48270-C0iAVU65,ZSU6#..GRAND201312-201711

main71880-48270-C0iAVU65,ZSU6#..GRAND201312-201705

main71880-48270-C0iAVU65,ZSU6#..GRAND201312-201705

main71880-48271-C0iAVU65,ZSU6#..ELEGC,PREM201711-202005

BLACK,TRIM2#

main71880-48271-C0iAVU65,ZSU6#..ELEGC,PREM201711-202005

BLACK,TRIM2#,8#

main71880-48271-C0iAVU65,ZSU6#..ELEGC,PREM201711-202005

BLACK,TRIM2#,4#,8#

main71880-48271-C0iASU6#..ELEGC,PREM201711-202005

BLACK,TRIM2#,4#

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-08186-C0iAVU65,ZSU6#201312-201610

BLACK

sub90467-08186

main90467-08186-C3iAVU65,ZSU6#201610-202005

BLACK

sub90467-08186

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-48240-C0iAVU65,ZSU6#..GRAND201312-201711

main71890-48240-C0iAVU65,ZSU6#..GRAND201312-201705

main71890-48240-C0iAVU65,ZSU6#..GRAND201312-201705

main71890-48240-C0iASU6#201705-201711

main71890-48241-C0iASU6#..PROGR201711-202005

BLACK,TRIM2#

main71890-48241-C0iAVU65,ZSU6#..ELEGC,PREM201711-202005

BLACK,TRIM2#,4#

main71890-48241-C0iAVU65,ZSU6#..ELEGC,PREM201711-202005

BLACK,TRIM2#,8#

main71890-48241-C0iAVU65,ZSU6#..ELEGC,PREM201711-202005

BLACK,TRIM2#,4#,8#

71931ASUPPORT, REAR SEAT HEADREST

main71930-47020iASU6#,AVU65,ZSU6#201709-201710

main71930-47020-C0iAVU65,ZSU6#..GRAND201312-201705

sub71930-47020

main71930-47020-C0iAVU65,ZSU6#..GRAND201312-201705

sub71930-47020

main71930-47020-C0iAVU65,ZSU6#..ELEGC201312-201709

sub71930-47020

main71930-47020-C0iZSU6#..ELEGC201501-201705

sub71930-47020

main71930-47020-C0iASU65..ELEGC201708-201711

sub71930-47020

main71930-47020-C0iAVU65,ZSU6#201705-201709

sub71930-47020

main71930-47020-C4iAVU65,ZSU6#..ELEGC,PREM201710-202005

sub71930-47020

main71930-47020-C4iAVU65,ZSU6#..ELEGC,PREM201710-202005

sub71930-47020

main71930-47020-C4iAVU65,ZSU6#..ELEGC,PREM201710-202005

sub71930-47020

main71930-47020-C4iAVU65,ZSU6#..ELEGC,PREM201710-202005

sub71930-47020

main71930-47020-C4iZSU6#..ELEGC201711-202005

sub71930-47020

main71931-47020iASU6#,AVU65,ZSU6#201709-201710

main71931-47020-C0iAVU65,ZSU6#..PREM201312-201709

sub71931-47020

main71931-47020-C0iAVU65,ZSU6#..ELEGC201312-201705

sub71931-47020

main71931-47020-C0iAVU65,ZSU6#..ELEGC201312-201705

sub71931-47020

main71931-47020-C0iASU65..ELEGC201708-201711

sub71931-47020

main71931-47020-C0iAVU65,ZSU6#201705-201709

sub71931-47020

main71931-47020-C0iZSU6#..ELEGC201501-201705

sub71931-47020

main71931-47020-C4iASU6#..ELEGC,PREM201710-202005

sub71931-47020

main71931-47020-C4iASU6#..PROGR201710-202005

sub71931-47020

main71931-47020-C4iASU6#..PROGR201710-202005

sub71931-47020

main71931-47020-C4iASU6#..PROGR201710-202005

sub71931-47020

main71931-47020-C4iZSU6#..ELEGC201711-202005

sub71931-47020

71940BHEADREST ASSY, REAR SEAT, RH

main71940-48680-C1iAVU65,ZSU6#..GRAND201312-201506

BLACK,TRIM20,43

sub71940-48680

sub71940-48681

main71940-48680-C2iAVU65,ZSU6#..GRAND201312-201506

sub71940-48680

sub71940-48681

main71940-48681-C3iAVU65,ZSU6#..GRAND201506-201705

BLACK,TRIM2#,4#

main71940-48690-A1iAVU65,ZSU6#..ELEGC,PREM201312-201506

IVORY,TRIM00

sub71940-48690

sub71940-48691

main71940-48690-A2iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub71940-48690

sub71940-48691

main71940-48690-C1iAVU65,ZSU6#..ELEGC,PREM201312-201506

BLACK,TRIM20,43

sub71940-48690

sub71940-48691

main71940-48690-C2iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub71940-48690

sub71940-48691

main71940-48691-A3iAVU65,ZSU6#..ELEGC,PREM201506-201702

IVORY,TRIM0#

main71940-48691-B0iAVU65,ZSU6#..PREM201606-201702

main71940-48691-C7iAVU65..ELEGC,PREM201506-201702

BLACK/CREAM,TRIM2#,4#

main71940-48691-C8iAVU65,ZSU6#..PREM201506-201606

main71940-48700-C2iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub71940-48700

sub71940-48701

main71940-48700-C3iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub71940-48700

sub71940-48701

main71940-48701-C4iAVU65,ZSU6#..ELEGC,PREM201506-201602

main71940-48702-21iASU6#,AVU65,ZSU6#..PROGR201809-201907

BLACK/BLUE,TRIM8#

main71940-48702-22iZSU6#..PREM201907-202005

main71940-48702-A0iAVU65,ZSU6#..ELEGC,PREM201702-201705

IVORY,TRIM0#

main71940-48702-B0iAVU65,ZSU6#..PREM201702-201705

main71940-48702-C7iAVU65,ZSU6#..ELEGC,PREM201702-201705

BLACK,TRIM2#,4#

main71940-48702-C7iZSU6#..PREM201705-202005

BLACK,TRIM2#,43

main71940-48702-C7iAVU65,ZSU6#..ELEGC,PREM201602-201702

main71940-48702-C7iZSU6#..PREM201907-202005

BLACK,TRIM20,43

main71940-48702-C8iASU6#201705-202005

BLACK/RED,TRIM2#

main71940-48702-E4iAVU65,ZSU6#201705-202005

DK.SADDLE TAN/CREAM,TRIM45

main71940-48730-C2iZSU6#..ELEGC201501-201705

main71940-48B20-C2iASU65,ZSU6#..ELEGC201708-202005

71950DHEADREST ASSY, REAR SEAT, LH

main71940-48680-C1iAVU65,ZSU6#..GRAND201312-201506

sub71940-48680

sub71940-48681

main71940-48680-C2iAVU65,ZSU6#..GRAND201312-201506

BLACK,TRIM20,43

sub71940-48680

sub71940-48681

main71940-48681-C3iAVU65,ZSU6#..GRAND201506-201705

BLACK,TRIM2#,4#

main71940-48690-A1iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub71940-48690

sub71940-48691

main71940-48690-A2iAVU65,ZSU6#..ELEGC,PREM201312-201506

IVORY,TRIM00

sub71940-48690

sub71940-48691

main71940-48690-C1iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub71940-48690

sub71940-48691

main71940-48690-C2iAVU65,ZSU6#..ELEGC,PREM201312-201506

BLACK,TRIM20,43

sub71940-48690

sub71940-48691

main71940-48691-A3iAVU65,ZSU6#..ELEGC,PREM201506-201702

IVORY,TRIM0#

main71940-48691-B0iAVU65,ZSU6#..PREM201606-201702

main71940-48691-C7iAVU65,ZSU6#..ELEGC,PREM201506-201702

BLACK/CREAM,TRIM2#,4#

main71940-48691-C8iAVU65,ZSU6#..PREM201506-201606

main71940-48700-C2iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub71940-48700

sub71940-48701

main71940-48700-C3iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub71940-48700

sub71940-48701

main71940-48701-C4iAVU65,ZSU6#..ELEGC,PREM201506-201602

main71940-48701-C7iAVU65,ZSU6#..ELEGC,PREM201602-201609

main71940-48702-21iASU6#,AVU65,ZSU6#..PROGR201809-201907

BLACK/BLUE,TRIM8#

main71940-48702-22iZSU6#..PREM201907-202005

main71940-48702-A0iAVU65,ZSU6#..ELEGC,PREM201702-201705

IVORY,TRIM0#

main71940-48702-B0iAVU65,ZSU6#..PREM201702-201705

main71940-48702-C7iZSU6#..PREM201705-202005

BLACK,TRIM2#,43

main71940-48702-C7iZSU6#..PREM201907-202005

BLACK,TRIM20,43

main71940-48702-C7iAVU65,ZSU6#..ELEGC,PREM201702-201705

BLACK,TRIM2#,4#

main71940-48702-C7iAVU65,ZSU6#..ELEGC,PREM201609-201702

main71940-48702-C8iASU6#201705-202005

BLACK/RED,TRIM2#

main71940-48702-E4iAVU65,ZSU6#201705-202005

DK.SADDLE TAN/CREAM,TRIM45

main71940-48730-C2iZSU6#..ELEGC201501-201705

main71940-48B20-C2iASU65,ZSU6#..ELEGC201708-202005

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-48390-C1iAVU65,ZSU6#..GRAND201312-201506

BLACK,TRIM2#,4#

sub71960-48391

main71960-48391-C2iAVU65,ZSU6#..GRAND201506-201705

BLACK,TRIM2#,4#

main71960-48430-A1iAVU65,ZSU6#..ELEGC,PREM201312-201410

IVORY,TRIM0#

sub71960-48430

sub71960-48431

main71960-48430-A2iAVU65,ZSU6#..ELEGC,PREM201410-201506

IVORY,TRIM0#

sub71960-48430

sub71960-48431

main71960-48430-C1iAVU65,ZSU6#..ELEGC,PREM201312-201410

BLACK,TRIM2#,4#

sub71960-48430

sub71960-48431

main71960-48430-C2iZSU6#..ELEGC201501-201505

sub71960-48430

sub71960-48431

main71960-48430-C2iAVU65,ZSU6#..ELEGC,PREM201410-201506

BLACK,TRIM2#,4#

sub71960-48430

sub71960-48431

main71960-48431-A3iAVU65,ZSU6#..ELEGC,PREM201506-201702

IVORY,TRIM0#

main71960-48431-B0iAVU65,ZSU6#..PREM201606-201702

main71960-48431-C3iAVU65,ZSU6#..ELEGC,PREM201506-201702

BLACK,TRIM2#,4#

main71960-48431-C3iZSU6#..ELEGC201506-201705

main71960-48440-C2iAVU65,ZSU6#..ELEGC,PREM201312-201506

main71960-48441-C3iAVU65,ZSU6#..ELEGC,PREM201506-201602

main71960-48442-A0iAVU65,ZSU6#..ELEGC,PREM201702-201705

IVORY,TRIM0#

main71960-48442-B0iAVU65,ZSU6#..PREM201702-201705

main71960-48442-C5iASU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,43

main71960-48442-C5iASU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main71960-48442-C5iASU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main71960-48442-C5iASU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,43,8#

main71960-48442-C5iZSU6#..ELEGC201708-202005

main71960-48442-C5iAVU65,ZSU6#..ELEGC,PREM201602-201702

main71960-48442-C5iAVU65,ZSU6#..ELEGC,PREM201702-201705

BLACK,TRIM2#,4#

main71960-48442-E4iAVU65,ZSU6#201705-202005

DK.SADDLE TAN,TRIM45

72525JHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-48020-C0iASU6#..ELEGC,PREM201312-201705

BLACK,TRIM2#,4#

main72525-48020-C0iASU6#..ELEGC,PREM201705

BLACK,TRIM2#

main72525-48020-C0iASU6#..ELEGC,PREM201705

BLACK,TRIM2#,8#

main72525-48020-C0iASU6#..ELEGC,PREM201705

BLACK,TRIM2#,4#,8#

main72525-48020-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72525-48020-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

72526EHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-48050-C0iAVU65,ZSU6#..PROGR201705

BLACK,TRIM2#,4#,8#

main72526-48050-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM2#,4#

main72526-48050-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72526-48050-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72526-48050-C0iAVU65,ZSU6#..ELEGC,PREM201705

BLACK,TRIM2#

main72526-48050-C0iAVU65,ZSU6#..ELEGC,PREM201705

BLACK,TRIM2#,8#

72622CBUSH, REAR SEATBACK PROTECTOR SHAFT

main72622-48010iASU6#,AVU65,ZSU6#201312-202005

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iASU6#,AVU65,ZSU6#201312-201705

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-48110iASU6#,AVU65,ZSU6#201312-202005

72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2

main72704-48130iASU6#,AVU65,ZSU6#201312-202005

72704FCABLE, REAR SEAT RECLINING CONTROL, NO.3

main72704-48120iAVU65,ZSU6#201312-201705

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-53020-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

sub72806-53020

main72806-53020-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,1#,2#,4#

sub72806-53020

main72806-53020-C0iAVU65,ZSU6#..PREM201312-201705

sub72806-53020

main72806-53020-C0iAVU65..PREM;ZSU6#..ELEGC,PREM201312-201908

BLACK,TRIM2#,4#

sub72806-53020

main72806-53020-C0iAVU65,ZSU6#..ELEGC,PREM201705-201908

BLACK,TRIM2#

sub72806-53020

main72806-53020-C0iAVU65,ZSU6#..ELEGC,PREM201705-201908

BLACK,TRIM2#,8#

sub72806-53020

main72806-53020-C0iAVU65,ZSU6#..ELEGC,PREM201705-201908

BLACK,TRIM2#,4#,8#

sub72806-53020

main72806-53021-C0iASU6#..PROGR201909-202005

BLACK,TRIM2#,4#

main72806-53021-C0iAVU65,ZSU6#..ELEGC,PREM201909-202005

BLACK,TRIM2#

main72806-53021-C0iAVU65,ZSU6#..ELEGC,PREM201909-202005

BLACK,TRIM2#,8#

main72806-53021-C0iAVU65,ZSU6#..ELEGC,PREM201909-202005

BLACK,TRIM2#,4#,8#

72810BARMREST ASSY, NO.1 SEAT

main72810-48210-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM2#,4#

main72810-48220-A0iAVU65,ZSU6#..ELEGC,PREM201312-201506

IVORY,TRIM0#

sub72810-48221

main72810-48220-C0iAVU65,ZSU6#..ELEGC,PREM201312-201506

BLACK,TRIM2#,4#

sub72810-48221

main72810-48221-A1iAVU65,ZSU6#..ELEGC,PREM201506-201705

IVORY,TRIM0#

main72810-48221-B0iAVU65,ZSU6#..PREM201606-201705

main72810-48221-C1iASU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72810-48221-C1iAVU65,ZSU6#..ELEGC,PREM201506-201705

BLACK,TRIM2#,4#

main72810-48221-C1iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,43

main72810-48221-C1iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72810-48221-C1iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,43,8#

main72810-48221-E2iAVU65,ZSU6#201705-202005

DK.SADDLE TAN,TRIM45

main72810-48230-C1iAVU65,ZSU6#..ELEGC,PREM201312-201506

sub72810-48231

main72810-48231-C2iAVU65,ZSU6#..ELEGC,PREM201506-201705

main72810-48340-C0iAVU65,ZSU6#..PROGR201705-202005

main72810-48340-C0iAVU65,ZSU6#..PROGR201705-202005

main72810-48340-C0iASU6#..PROGR201705-202005

main72810-48340-C0iASU6#..PROGR201705-202005

main72810-48340-C0iASU6#..PROGR201809-201907

main72810-48340-C0iASU6#..PROGR201809-201907

main72810-48340-E2iAVU65,ZSU6#..PREM,PROGR201705-202005

main72810-48340-E2iAVU65,ZSU6#..PROGR201809-201907

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-48490-C1iASU6#..PREM,PROGR201705-201803

sub72830-48492

sub72830-48491

main72830-48490-C1iASU6#..PREM,PROGR201705-201803

sub72830-48492

sub72830-48491

main72830-48490-C2iAVU65,ZSU6#..PREM201803-201908

sub72830-48492

sub72830-48491

main72830-48490-C2iASU6#..PROGR201809-201907

sub72830-48492

sub72830-48491

main72830-48490-C2iASU6#..PROGR201809-201907

sub72830-48492

sub72830-48491

main72830-48490-C2iAVU65,ZSU6#..PREM201803-201908

sub72830-48492

sub72830-48491

main72830-48490-C2iAVU65,ZSU6#..PREM201803-201908

sub72830-48492

sub72830-48491

main72830-48490-C2iAVU65,ZSU6#..PREM201803-201908

sub72830-48492

sub72830-48491

main72830-48490-E2iAVU65,ZSU6#..PREM,PROGR201705-201803

sub72830-48492

sub72830-48491

main72830-48490-E3iAVU65,ZSU6#..PREM,PROGR201803-201908

sub72830-48492

sub72830-48491

main72830-48490-E3iAVU65,ZSU6#..PROGR201809-201907

sub72830-48492

sub72830-48491

main72830-48491-C2iAVU65,ZSU6#..PREM201909-202005

sub72830-48492

main72830-48491-C2iAVU65,ZSU6#..PREM201909-202005

sub72830-48492

main72830-48491-C2iASU6#..PROGR201909-202005

sub72830-48492

main72830-48491-C2iASU6#..PROGR201909-202005

sub72830-48492

main72830-48491-E3iAVU65,ZSU6#..PREM,PROGR201909-202005

sub72830-48492

main72830-48660-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM2#,4#

main72830-48670-A0iAVU65,ZSU6#..ELEGC,PREM201312-201705

IVORY,TRIM0#

main72830-48670-B0iAVU65,ZSU6#..PREM201606-201705

main72830-48670-C0iAVU65,ZSU6#..ELEGC,PREM201312-201705

BLACK,TRIM2#,4#

main72830-48680-C1iAVU65,ZSU6#..ELEGC,PREM201312-201705

main72830-48820-C1iAVU65,ZSU6#201705-201803

BLACK,TRIM2#,43

sub72830-48822

sub72830-48821

main72830-48820-C1iAVU65,ZSU6#201705-201803

BLACK,TRIM2#

sub72830-48822

sub72830-48821

main72830-48820-C2iASU6#..PROGR201803-201908

BLACK,TRIM2#,43

sub72830-48822

sub72830-48821

main72830-48820-C2iAVU65,ZSU6#..ELEGC,PREM201803-201908

BLACK,TRIM2#

sub72830-48822

sub72830-48821

main72830-48820-C2iAVU65,ZSU6#..ELEGC,PREM201803-201908

BLACK,TRIM2#,8#

sub72830-48822

sub72830-48821

main72830-48820-C2iAVU65,ZSU6#..ELEGC,PREM201803-201908

BLACK,TRIM2#,43,8#

sub72830-48822

sub72830-48821

main72830-48820-E1iAVU65,ZSU6#201705-201803

DK.SADDLE TAN,TRIM45

sub72830-48822

sub72830-48821

main72830-48820-E2iAVU65,ZSU6#201803-201908

DK.SADDLE TAN,TRIM45

sub72830-48822

sub72830-48821

main72830-48821-C2iAVU65,ZSU6#..ELEGC,PREM201909-202005

BLACK,TRIM2#,43,8#

sub72830-48822

main72830-48821-C2iAVU65,ZSU6#..ELEGC,PREM201909-202005

BLACK,TRIM2#,43

sub72830-48822

main72830-48821-C2iAVU65,ZSU6#..ELEGC,PREM201909-202005

BLACK,TRIM2#

sub72830-48822

main72830-48821-C2iAVU65,ZSU6#..ELEGC,PREM201909-202005

BLACK,TRIM2#,8#

sub72830-48822

main72830-48821-E2iAVU65,ZSU6#201909-202005

DK.SADDLE TAN,TRIM45

sub72830-48822

72831BPLATE, REAR SEAT CENTER ARMREST, NO.1

main72831-47010iAVU65,ZSU6#201312-202005

72831CPLATE, REAR SEAT CENTER ARMREST, NO.2

main72831-52010iAVU65,ZSU6#201312-202005

72868BCOVER, CENTER ARMREST HINGE

main72868-48020-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72868-48020-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72868-48020-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72868-48020-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72868-48020-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72868-48020-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72995COVER, REAR SEAT CUSHION, RH

main72996-48100-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72996-48100-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72996-48100-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72996-48100-C0iAVU65,ZSU6#..PROGR201705-202005

BLACK,TRIM2#,4#,8#

main72996-48100-C0iAVU65,ZSU6#..PROGR201705-202005

BLACK,TRIM2#,8#

main72996-48100-C0iAVU65,ZSU6#..PROGR201705-202005

BLACK,TRIM2#

72995DCOVER, REAR SEAT CUSHION, INNER RH

main72997-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72997-48070-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72997-48070-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72997-48070-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72997-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72997-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72996COVER, REAR SEATBACK, RH

main72996-48080-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72996-48080-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72996-48080-C0iAVU65,ZSU6#..ELEGC201312-202005

BLACK,TRIM2#,4#

main72996-48080-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72996-48080-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72996-48080-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72996ACOVER, REAR SEATBACK

main72996-60160-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72996-60160-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72996-60160-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72996-60160-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72996-60160-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72996-60160-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72996BCOVER, REAR SEATBACK, INNER RH

main72997-48050-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72997-48050-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72997-48050-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72997-48050-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72997-48050-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72997-48050-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72997COVER, REAR SEATBACK, LH

main72997-48050-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72997-48050-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72997-48050-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72997-48050-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72997-48050-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72997-48050-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72997ACOVER, REAR SEATBACK, INNER LH

main72996-48080-C0iASU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72996-48080-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72996-48080-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72996-48080-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72996-48080-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72996-48080-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72997BCOVER, REAR SEATBACK

main72996-60160-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72996-60160-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72996-60160-C0iAVU65,ZSU6#..ELEGC201312-202005

BLACK,TRIM2#,4#

main72996-60160-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72996-60160-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72996-60160-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72998COVER, REAR SEAT CUSHION, LH

main72997-48070-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72997-48070-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72997-48070-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72997-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72997-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72997-48070-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

72998BCOVER, REAR SEAT CUSHION, LH

main72996-48100-C0iASU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main72996-48100-C0iAVU65,ZSU6#..GRAND201312-202005

BLACK,TRIM2#,4#

main72996-48100-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

main72996-48100-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,1#,2#,4#

main72996-48100-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main72996-48100-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

79110LEG ASSY, NO.1 SEAT

main79110-48010iAVU65201401-201506

main79110-48011iAVU65201506-201705

main79110-48020iZSU6#201312-201705

main79110-48060iASU6#,ZSU6#201705

79157COVER, NO.1 SEATBACK

main79157-48060-C0iAVU65,ZSU6#..ELEGC201312-201705

BLACK,TRIM0#,2#,4#

main79157-48060-C0iAVU65,ZSU6#..ELEGC201312-201705

BLACK,TRIM0#,1#,2#,4#

main79157-48060-C0iAVU65,ZSU6#..PREM201312-202005

BLACK,TRIM2#,4#

main79157-48060-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#

main79157-48060-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,8#

main79157-48060-C0iAVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,TRIM2#,4#,8#

79915BRACKET, SEAT LEG

main79915-42010iZSU6#201312-201705

7889928040BOLT, FRONT SEAT

main78899-28040

9010510539

main90105-10539

9017908057

main90179-08057

9046710161

main90467-10161

9418560600

main94185-60600

62 parts on this diagram · 3 diagrams in section
