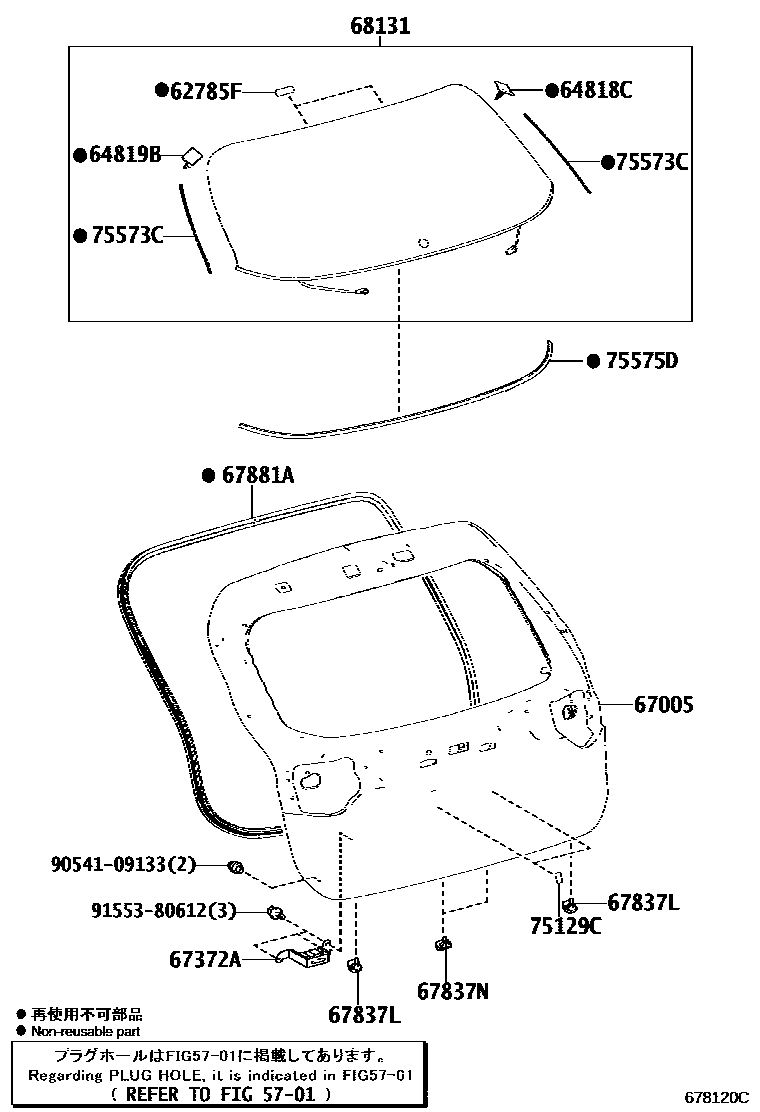

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

5701

62785FSPACER, BACK DOOR GLASS

main62785-16030iAVU65,ZSU6#201312-201705

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-48050iAVU65,ZSU6#201312-201705

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-48050iAVU65,ZSU6#201312-201705

67005PANEL SUB-ASSY, BACK DOOR

main67005-48340iASU6#,AVU65,ZSU6#..ELEGC201312-201705

main67005-48350iAVU65,ZSU6#..ELEGC201312-201705

67372AWEIGHT, BACK DOOR

main67372-48070iAVU65,ZSU6#201312-201705

67837LSEAL, DOOR DUST PROOF

main67837-30060iAVU65,ZSU6#201412-201502

main67837-48090iAVU65,ZSU6#201503-201705

67837NSEAL, BACK DOOR DUST PROOF

main67837-52040iAVU65,ZSU6#201412-201705

67881AWEATHERSTRIP, BACK DOOR

main67881-48070iAVU65,ZSU6#201312-201705

68131GLASS, BACK DOOR

main68105-48903iAVU65,ZSU6#201312-201611

main68105-48904iAVU65,ZSU6#201611-201705

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iAVU65,ZSU6#201312-201705

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-48050iAVU65,ZSU6#201312-201705

75575DMOULDING, BACK WINDOW, LOWER

main75575-48040iAVU65,ZSU6#201312-201705

9054109133

main90541-09133

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
