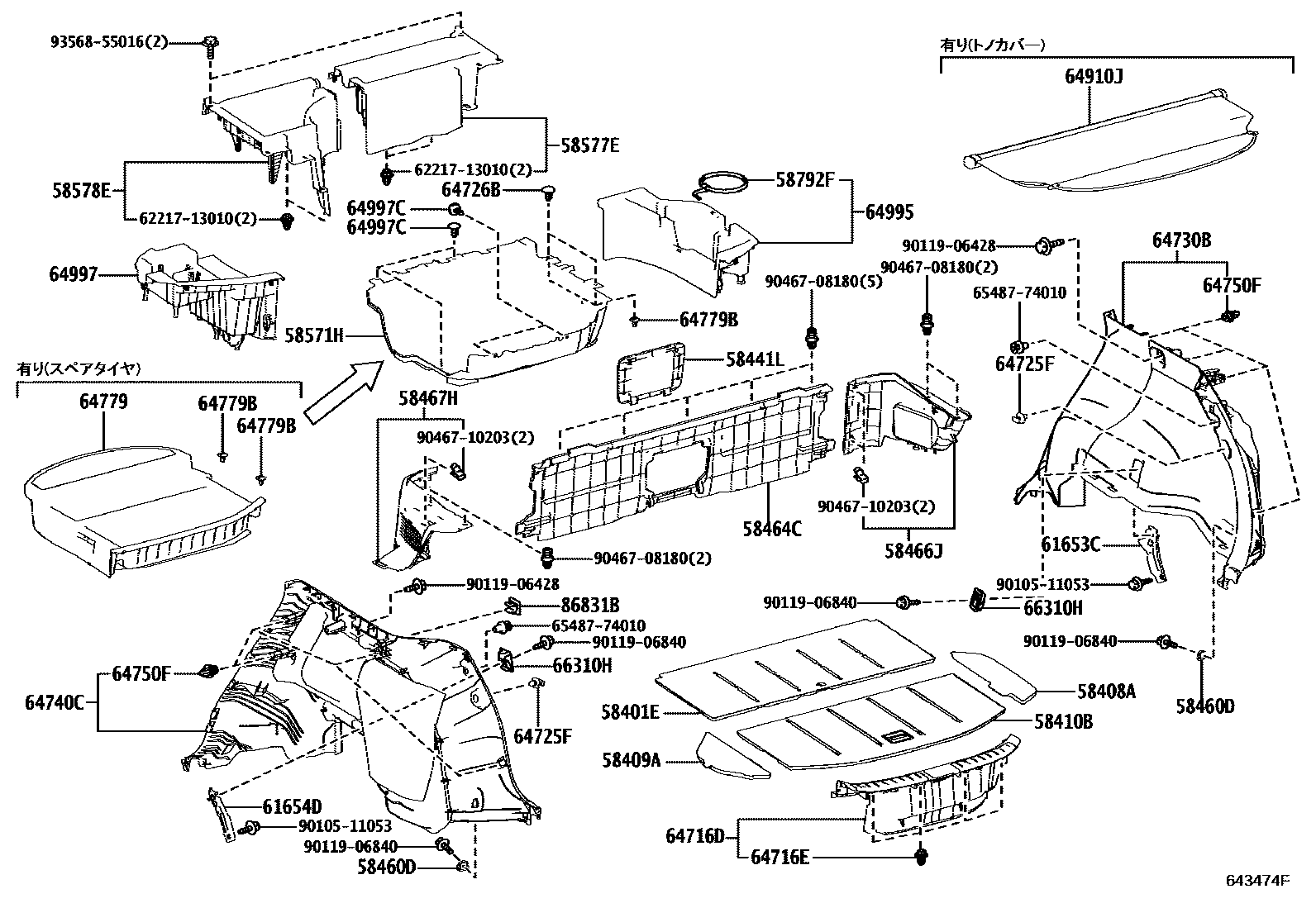

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58401EBOARD SUB-ASSY, DECK

main58401-48030-C0iAVU65,ZSU6#..ELEGC,PREM201312-201505

BLACK,TRIM0#,2#,4#

main58401-48030-C1iAVU65,ZSU6#..PREM201505-201705

BLACK,TRIM0#,2#,4#

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-48090-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

58409ABOARD SUB-ASSY, DECK, NO.3

main58409-48080-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

58410BBOARD ASSY, DECK

main58410-48120-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

58441LCOVER, BATTERY SERVICE HOLE

main58441-48050-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×2iAVU65,ZSU6#201312-201705

58464CBOARD, BATTERY SERVICE COVER, NO.1

main58464-48010-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

58466JBOARD, BATTERY SERVICE COVER, NO.2

main58466-48010-C0iAVU65..PREM201401-201705

BLACK,TRIM0#,2#,4#

main58466-48020-C0iZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#

58467HBOARD, BATTERY SERVICE COVER, NO.3

main58467-48010-C0iAVU65..ELEGC,PREM201705

BLACK,TRIM2#,4#,8#

main58467-48020-C0iZSU6#..PROGR201705

BLACK,TRIM2#,8#

58571HCARPET, REAR FLOOR

main58571-48010iASU6#,AVU65,ZSU6#201705

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-48010iZSU6#201312-201705

main58577-48020iAVU65201401-201705

58578EPLATE, REAR FLOOR MAT SUPPORT SIDE, LH

main58578-48020iASU6#,ZSU6#201705

main58578-48030iAVU65201705

58792FSUPPORT, JACK CARRIER

main58792-48020iASU6#,AVU65,ZSU6#201705

61653CBRACKET, DECK SIDE TRIM, RH

main61653-48050iAVU65,ZSU6#201312-201705

61654DBRACKET, DECK SIDE TRIM, NO.2

main61654-48050iASU6#,AVU65,ZSU6#201705

64716DCOVER, DECK TRIM, REAR

main64716-48020-C0iAVU65,ZSU6#..PROGR201705

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161×4iAVU65,ZSU6#201312-201705

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-21020-C0×2iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

64726BCLIP, DECK REAR TRIM

main64726-26010-C1×2iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

main64726-26010-C2×2iAVU65,ZSU6#..PROGR201903

BLACK,TRIM2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-48120-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

main64730-48130-C0supersedes 64730-48120-C0iASU6#..PROGR201705

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-48120-C0iAVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,2#,4#

main64740-48130-C0supersedes 64740-48120-C0iZSU6#..GRAND201312-201705

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×8iASU6#,AVU65,ZSU6#201705

64779TRAY, SPARE WHEEL COVER

main64779-48060iAVU65,ZSU6#201312-201705

64779BSTOPPER, SPARE WHEEL COVER

main64779-26010×2iAVU65,ZSU6#201312-201705

64910JCOVER ASSY, TONNEAU

main64910-48130-C0iAVU65,ZSU6#..GRAND201312-201705

64995BOX, DECK FLOOR, RH

main64995-48010iASU6#,AVU65,ZSU6#201705

64997BOX, DECK FLOOR, LH

main64997-48010iZSU6#201312-201705

main64997-48020iAVU65201401-201705

64997CCLIP(FOR DECK FLOOR BOX)

main90467-05164-C0×5iAVU65,ZSU6#..GRAND201312-201610

BLACK,TRIM0#,2#,4#

main90467-05164-C7×5iAVU65,ZSU6#..PROGR201705

BLACK,TRIM2#

66310HHOOK ASSY, ROPE

main66310-30011-C0×2iAVU65,ZSU6#..PREM201312-201701

BLACK,TRIM0#,2#,4#

main66310-30011-C1×2iAVU65,ZSU6#..PREM201701-201705

BLACK,TRIM0#,2#,4#

86831BCOVER, ACCESSORY SOCKET

main86831-48010-C0iZSU6#..GRAND201312-201705

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

6548774010CLIP, CORNER PROTECTOR

main65487-74010

9010511053

main90105-11053

9011906428

main90119-06428

9011906840

main90119-06840

9046708180

main90467-08180

9046710203

main90467-10203

9356855016

main93568-55016

38 parts on this diagram · 2 diagrams in section
