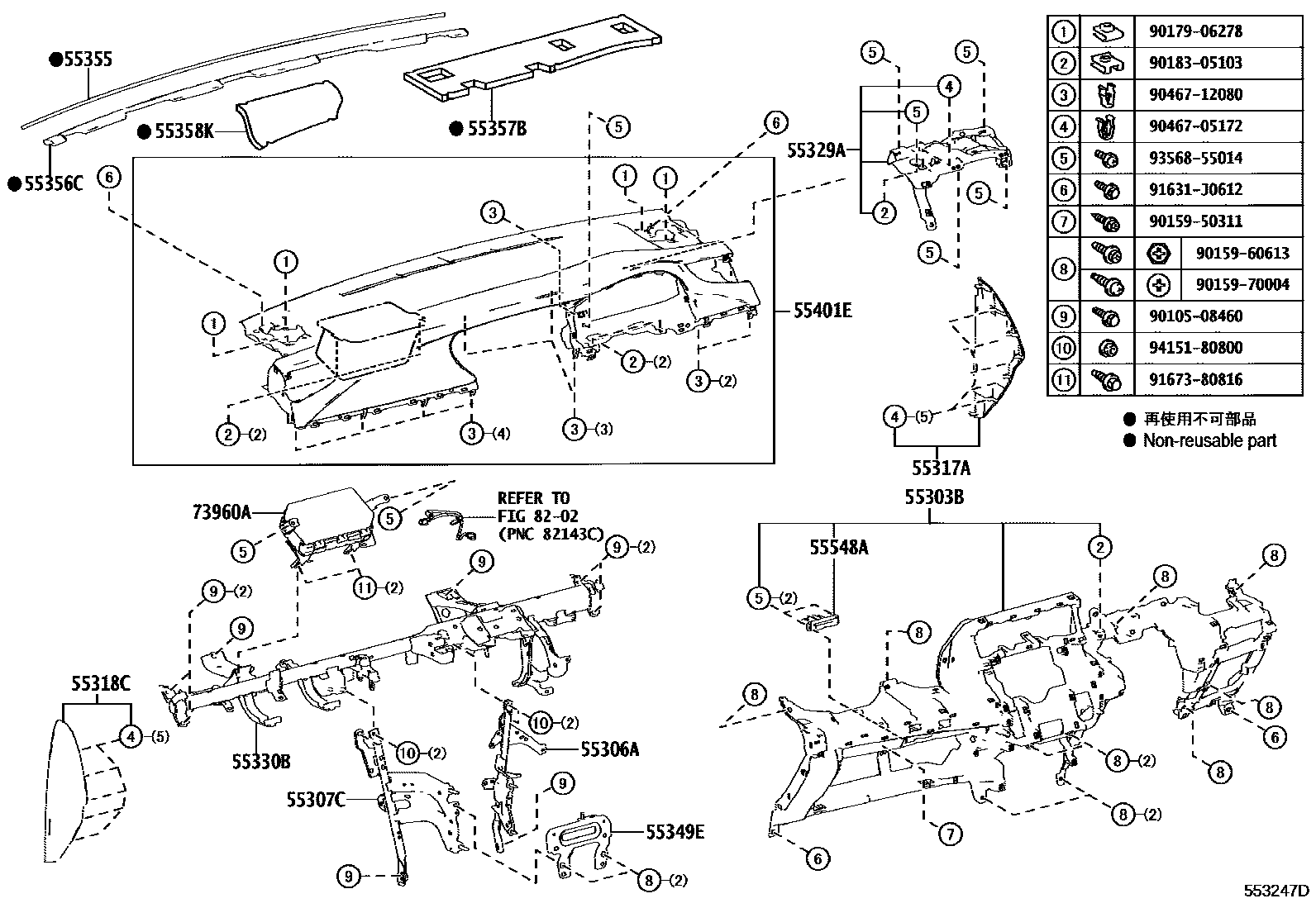

INSTRUMENT PANEL & GLOVE COMPARTMENT
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM2#,4#,8#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM2#,8#
BLACK,TRIM2#,4#,8#
55329ABRACKET, INSTRUMENT PANEL METER
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55548ACOVER, INSTRUMENT PANEL HOLE
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9010508460
main90105-08460
9015950311
main90159-50311
9015960613
main90159-60613
9015970004
main90159-70004
9017906278
main90179-06278
9018305103
main90183-05103
9046705172
main90467-05172
9046712080
main90467-12080
91631J0612
main91631-J0612
9167380816
main91673-80816
9356855014
main93568-55014
9415180800
main94151-80800
28 parts on this diagram · 7 diagrams in section
