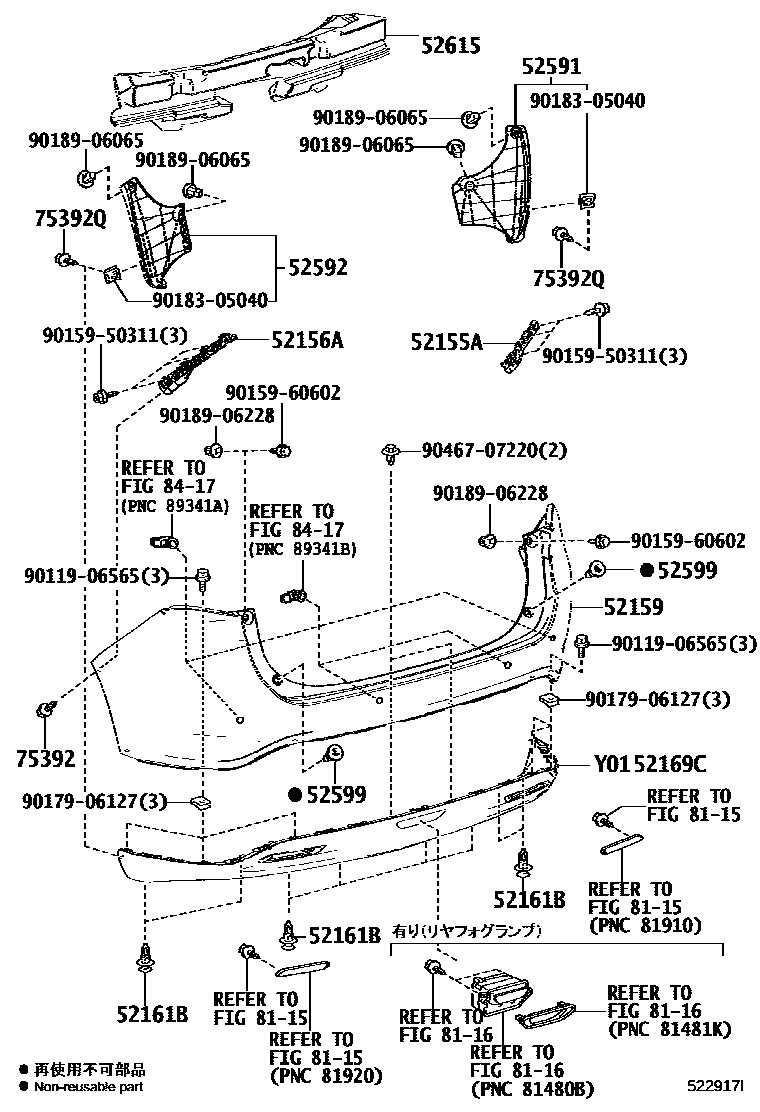

REAR BUMPER & BUMPER STAY

0001 1 0002 1G'S 0003 1 0004 1GR SPORT

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-48050iASU6#,AVU65,ZSU6#201312-201705

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-48050iASU6#,AVU65,ZSU6#201312-201705

52159COVER, REAR BUMPER

main52159-48120-A0iAVU65,ZSU6#201312-201405

WHITE PEARL CS.,070

sub52159-48220

main52159-48120-B0iAVU65,ZSU6#201312-201705

SILVER ME.,1F7

sub52159-48220

main52159-48120-B1iAVU65,ZSU6#201312-201506

DK. STEEL MC.,1H2

sub52159-48220

main52159-48120-C0iAVU65,ZSU6#201312-201705

BLACK,202

sub52159-48220

main52159-48120-C1iAVU65,ZSU6#201312-201705

SPARKLING BLACK PEARL CS.,220

sub52159-48220

main52159-48120-C2iAVU65,ZSU6#201506-201705

BLACKISH AGEHA GF.,221

sub52159-48220

main52159-48120-D0iAVU65,ZSU6#201312-201705

BLACKISH RED MC.,3R0

sub52159-48220

main52159-48120-D1iAVU65,ZSU6#..PREM201506-201606

RED M.M.,3R3

sub52159-48220

main52159-48120-E0iAVU65,ZSU6#201312-201705

DK.BROWN ME.,4U5

sub52159-48220

main52159-48120-J0iAVU65,ZSU6#..PREM201606-201705

BLUE ME.,8T7

sub52159-48220

main52159-48220-A0iASU6#,AVU65,ZSU6#..ELEGC,PREM201405-202005

WHITE PEARL CS.,070

sub52159-48970

main52159-48220-A0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-A0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-B0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

SILVER ME.,1F7

sub52159-48970

main52159-48220-B0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-B0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-C0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

BLACK,202

sub52159-48970

main52159-48220-C0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-C0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-C1iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

SPARKLING BLACK PEARL CS.,220

sub52159-48970

main52159-48220-C1iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-C1iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-D2iZSU6#..ELEGC201705-202005

sub52159-48970

main52159-48220-D2iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

DK. RED M.M.,3Q3

sub52159-48970

main52159-48220-D2iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-J1iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

DK.BLUE M.M.,8W7

sub52159-48970

main52159-48220-J1iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48220-J1iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48970

main52159-48240-A0iASU6#,AVU65,ZSU6#..PROGR201705-202005

WHITE PEARL CS.,070

sub52159-48933

main52159-48240-A0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-A0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-A0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-A0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-B0iASU6#,AVU65,ZSU6#..PROGR201705-202005

SILVER ME.,1F7

sub52159-48933

main52159-48240-B0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-B0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-B0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-B0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-C0iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

main52159-48240-C0iASU6#,AVU65,ZSU6#..PROGR201705-202005

BLACK,202

sub52159-48933

main52159-48240-C0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-C0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-C0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-C1iASU6#,AVU65,ZSU6#..ELEGC201705-202005

SPARKLING BLACK PEARL CS.,220

sub52159-48933

main52159-48240-C1iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

main52159-48240-C1iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

main52159-48240-C1iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

main52159-48240-C1iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

main52159-48240-C2iZSU6#..PREM201809-202005

sub52159-48933

main52159-48240-C2iZSU6#..PREM201809-202005

sub52159-48933

main52159-48240-C2iZSU6#..PREM201809-202005

BLACK MC.,209

sub52159-48933

main52159-48240-D0iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

main52159-48240-D0iASU6#,AVU65,ZSU6#..PROGR201705-202005

DK. RED M.M.,3Q3

sub52159-48933

main52159-48240-D0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-D0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-D0iASU6#,AVU65,ZSU6#..PROGR201705-202005

sub52159-48933

main52159-48240-J0iASU6#,AVU65,ZSU6#..ELEGC,PREM201705-202005

sub52159-48933

main52159-48240-J0iASU6#,AVU65,ZSU6#..ELEGC201705-202005

DK.BLUE M.M.,8W7

sub52159-48933

main52159-48240-J0iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

main52159-48240-J0iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

main52159-48240-J0iASU6#,AVU65,ZSU6#..ELEGC201705-202005

sub52159-48933

52161BPIECE, REAR BUMPER

main52161-16010iAVU65,ZSU6#201312-202005

52169CCOVER, REAR BUMPER, LOWER

main52169-48060iAVU65,ZSU6#201312-201705

main52169-48100iASU6#,AVU65,ZSU6#201705

main52169-48100iASU6#,AVU65,ZSU6#201705

main52169-48100iASU6#,AVU65,ZSU6#201705

52591SEAL, REAR BUMPER SIDE, RH

main52591-48100iAVU65,ZSU6#201312-201705

main52591-48100iASU6#,AVU65,ZSU6#201705

52592SEAL, REAR BUMPER SIDE, LH

main52592-48030iAVU65,ZSU6#201312-201705

main52592-48030iASU6#,AVU65,ZSU6#201705

52599STOPPER, REAR BUMPER, UPPER

main52599-48020iAVU65,ZSU6#201312-201705

52615ABSORBER, REAR BUMPER ENERGY

main52615-48170iAVU65,ZSU6#201312-201705

main52615-48230iASU6#,AVU65,ZSU6#201705

75392RETAINER, OUTSIDE MOULDING

main75392-42030iAVU65,ZSU6#201312-201705

75392QRETAINER, OUTSIDE MOULDING, NO.2

main75392-42030iAVU65,ZSU6#201312-201705

8115

8116

8417

9011906565

main90119-06565

9015950311

main90159-50311

9015960602

main90159-60602

9017906127

main90179-06127

9018305040

main90183-05040

9018906065

main90189-06065

9018906228

main90189-06228

9046707220

main90467-07220

22 parts on this diagram · 4 diagrams in section
