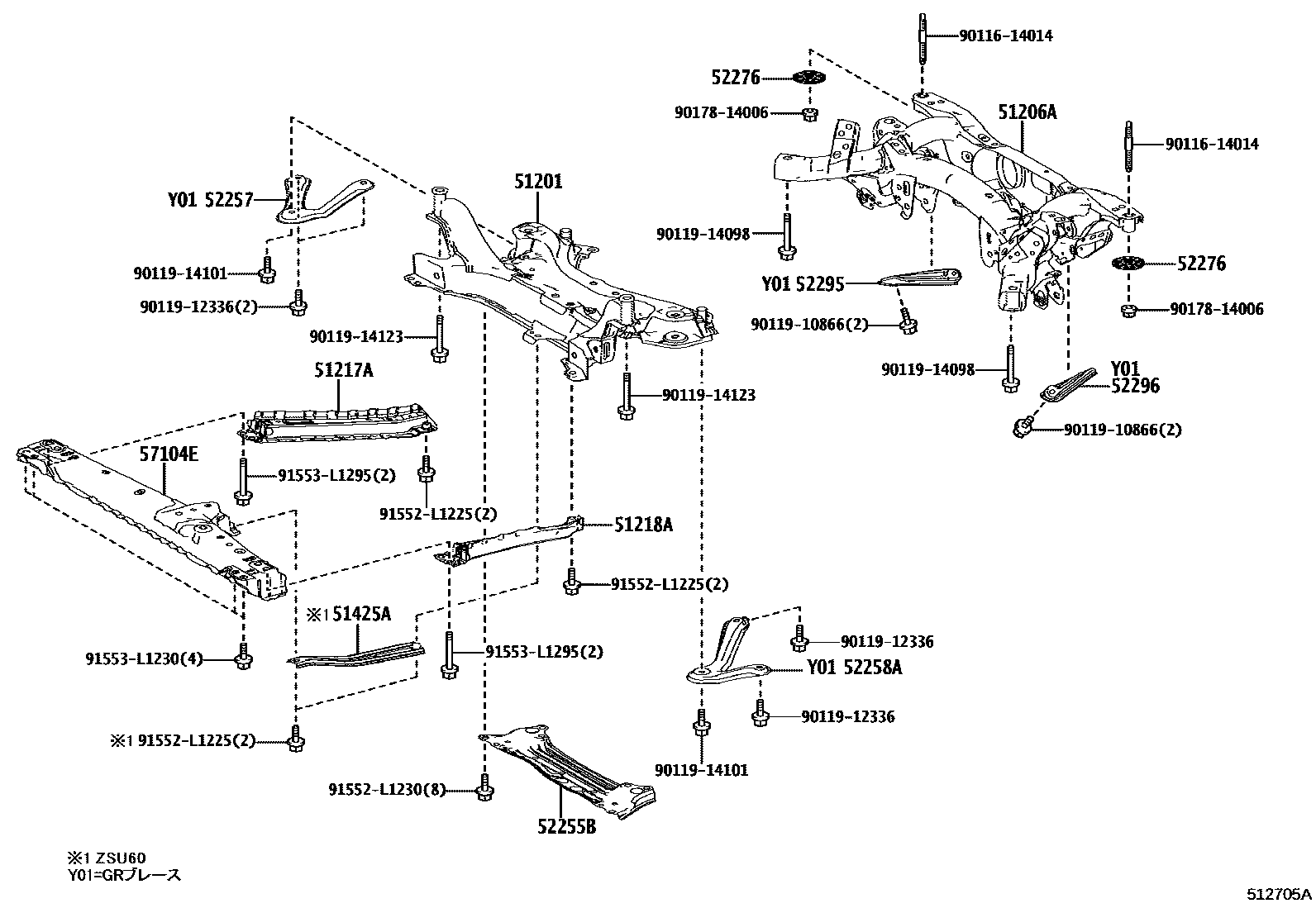

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1��������������� 0003 1���������������,G'S 0004 1��������

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12442iZSU6#201312-201705

sub51201-78010

main51201-12451iAVU65201401-201705

sub51201-78020

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42063iZSU6#201312-201412

main51206-48060iAVU65201705

main51206-78010iZSU6#201412-201705

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-42020iASU6#,ZSU6#201705-202005

main51107-48020iAVU65201401-201705

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-42020iZSU6#201312-201705

main51108-48020iAVU65201705

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-42010iZSU60201705

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iAVU65,ZSU6#201312-201705

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42010iASU6#,ZSU6#201705

main52257-48040iAVU65201401-201705

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42010iZSU6#201312-201705

main52258-48050iAVU65201401-201705

52276CUSHION, REAR SUSPENSION MEMBER, REAR LOWER

main52203-42020×2iASU6#,AVU65,ZSU6#201705

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-42010iZSU6#201312-201705

main53653-48020iAVU65201401-201705

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-42010iASU6#,ZSU6#201705

main53654-48010iAVU65201401-201705

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-42070iAVU65,ZSU6#201312-201705

9011614014

main90116-14014

9011910866

main90119-10866

9011912336

main90119-12336

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

9017814006

main90178-14006

91552L1225

main91552-L1225

91552L1230

main91552-L1230

91553L1230

main91553-L1230

91553L1295

main91553-L1295

23 parts on this diagram · 4 diagrams in section
