FRONT SPRING & SHOCK ABSORBER

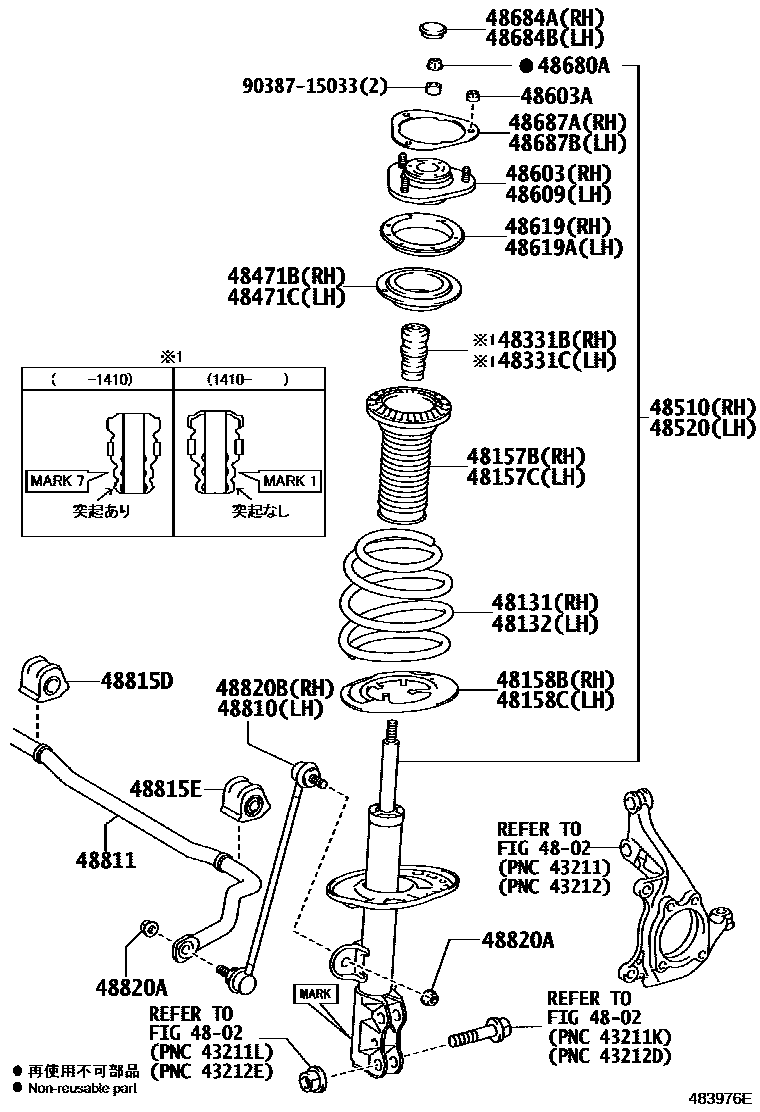

Parts diagram

4802

48131SPRING, FRONT COIL, RH

main48131-48590i201312-201507

main48131-48591i201508-201705

main48131-48780i201312-201705

main48131-48790i201705

main48131-48850i201708

main48131-WY130i201501-201508

main48131-WY140i201501-201508

main48131-WY160i201708

main48131-WY170i201508-201705

48132SPRING, FRONT COIL, LH

main48131-48590i201312-201507

main48131-48591i201508-201705

main48131-48780i201312-201705

main48131-48790i201401-201705

main48131-48850i201708

main48131-WY130i201501-201508

main48131-WY140i201501-201508

main48131-WY160i201708

main48131-WY170i201708

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-58010i201312-201411

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-58010i201312-201411

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-48050i201312-201411

main48158-78010i201411-201705

main48158-WY010i201708

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-48050i201312-201411

main48158-78010i201705

main48158-WY010i201501-201705

48331BBUMPER, FRONT SPRING, RH

main48331-42080i201312-201410

main48331-42120i201410-201705

main48331-WY100i201501-201705

48331CBUMPER, FRONT SPRING, LH

main48331-42080i201312-201410

main48331-42120i201705

main48331-WY100i201708

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-42010i201312-201411

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-42010i201312-201411

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80650i201312-201411

main48510-80651i201312-201411

main48510-80652i201401-201411

main48510-80770i201411-201506

main48510-80771i201411-201506

main48510-80772i201411-201506

main48510-80804i201506-201705

main48510-80805i201705

main48510-80806i201506-201705

main48510-80866i201705

main48510-80886i201708

main48510-W9085i201501-201508

main48510-W9095i201501-201508

main48510-W9115i201508-201705

main48510-W9116i201708

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80351i201312-201411

main48520-80352i201312-201411

main48520-80353i201401-201411

main48520-80446i201411-201506

main48520-80447i201411-201506

main48520-80448i201411-201506

main48520-80480i201506-201705

main48520-80481i201506-201705

main48520-80482i201705

main48520-80539i201705

main48520-80553i201708

main48520-W9085i201501-201508

main48520-W9095i201501-201508

main48520-W9115i201508-201705

main48520-W9116i201708

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42040i201312-201705

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6i201705

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42040i201312-201705

48619BEARING, STRUT MOUNTING, RH

main48619-28010i201705

48619ABEARING, STRUT MOUNTING, LH

main48619-28010i201705

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2i201312-201402

main90177-14007×2i201403-201705

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42020i201312-201705

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42020i201312-201705

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010i201312-201705

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010i201312-201705

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030i201312-201705

48811BAR, STABILIZER, FRONT

main48811-42071i201312-201705

main48811-WY010i201501-201705

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-48080i201705

main48815-78040i201501-201605

main48815-WY030i201605-201705

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-48090i201312-201705

main48815-78030i201501-201605

main48815-WY040i201708

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4i201312-201705

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030i201705

9038715033

main90387-15033

30 parts on this diagram · 3 diagrams in section
