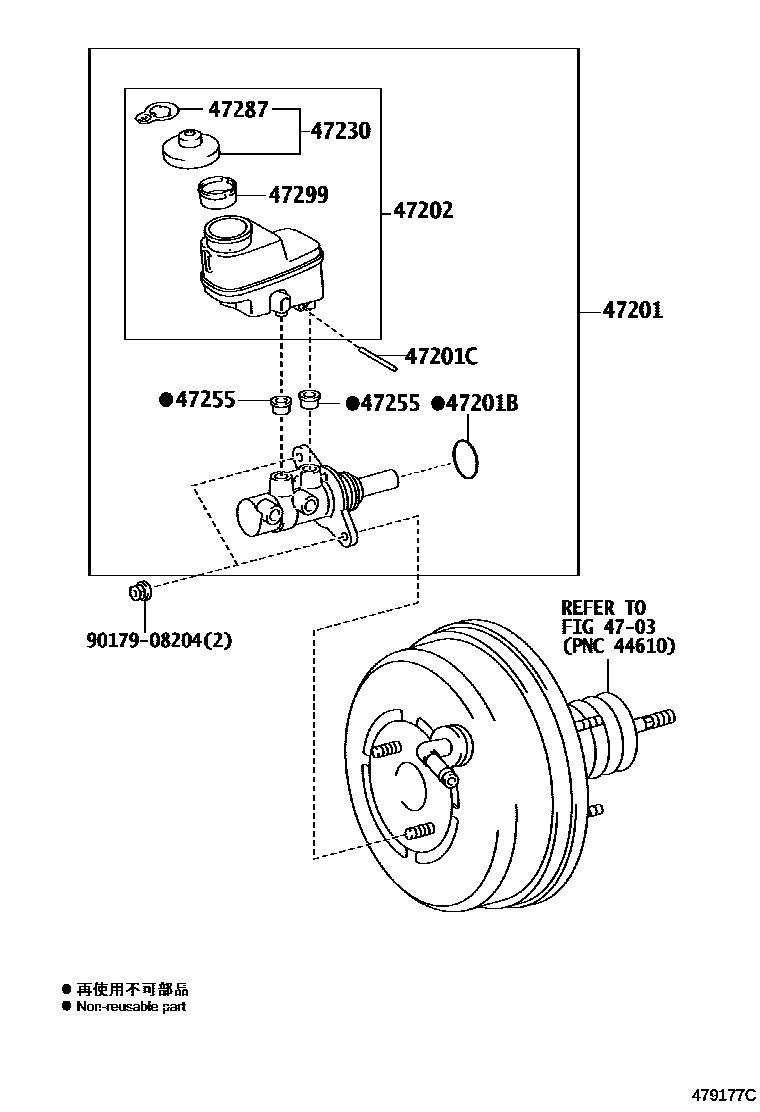

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-42362iZSU6#201312-201705

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZSU6#201312-201705

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZSU6#201312-201705

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42100iZSU6#201312-201705

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iASU6#,ZSU6#201312-201705

main47230-47090iAVU65201612-201705

main47230-58010iAVU65201401-201612

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iZSU6#201312-201705

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iZSU6#201512-201705

main47287-20010iZSU6#201312-201512

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iZSU6#201312-201705

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
