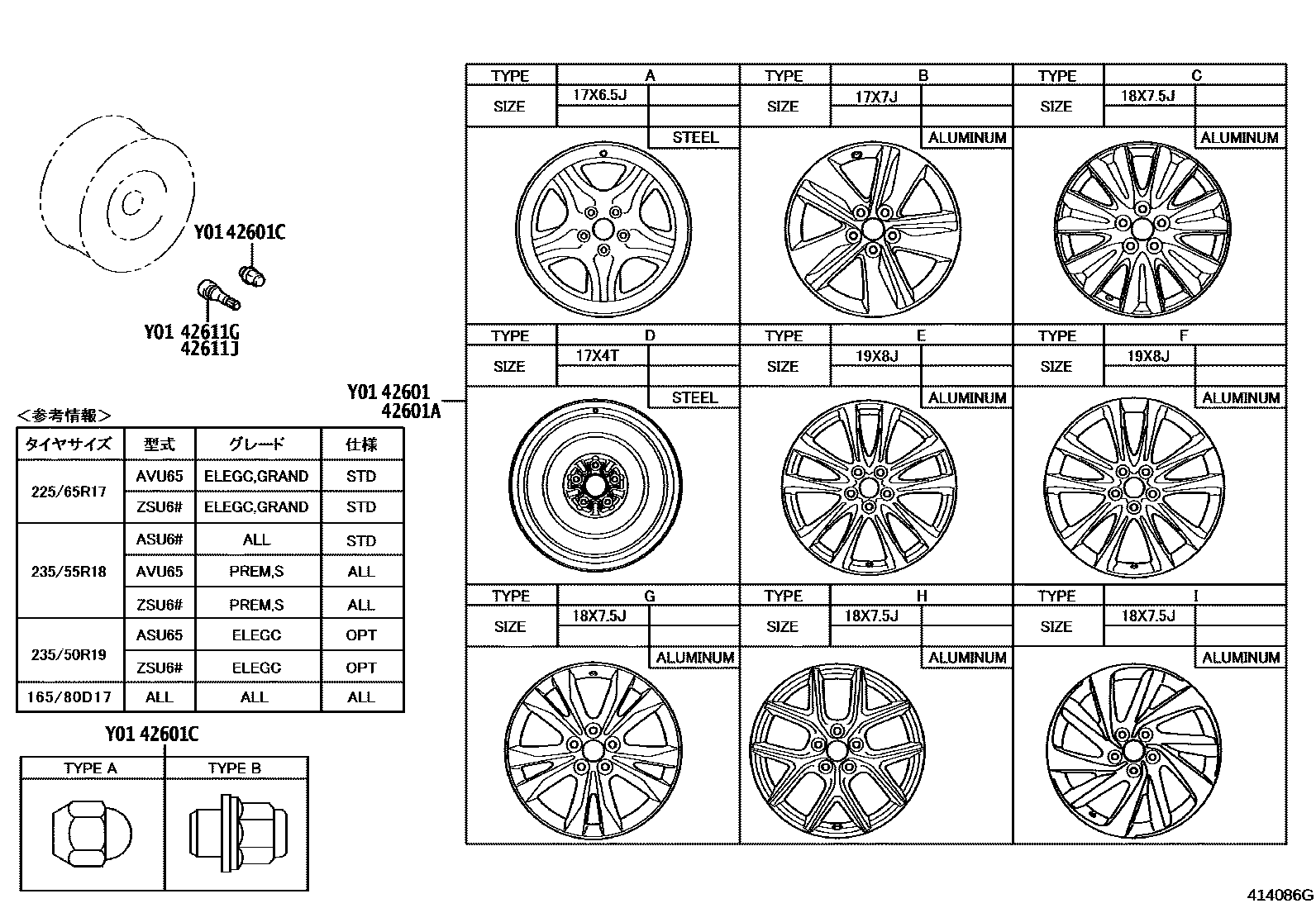

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-42250iZSU6#..GRAND201312-201705

main42611-48760iZSU6#..ELEGC201705

main42611-48760iZSU6#..ELEGC;AVU65..ELEGC,GRAND201312-201705

main42611-48A10iASU6#201705

main4261A-48150iAVU65,ZSU6#..PREM,PROGR201705

main42611-42561iAVU65,ZSU6#..PREM201506-201606

main42611-42700iASU6#,AVU65,ZSU6#..PROGR201809-201907

main42611-48A50iASU65..ELEGC201708

main42611-WY250iZSU6#..ELEGC201501-201705

main42611-WY260iZSU6#..ELEGC201501-201705

42601AWHEEL, DISC (FOR SPARE)

main42611-42470iASU6#,AVU65,ZSU6#201705-201908

sub42611-42471

main42611-42471iASU6#,AVU65,ZSU6#201909

main42611-48770iAVU65,ZSU6#201312-201705

sub42611-48771

42601CNUT, HUB (FOR AXLE)

main90942-01021iZSU6#..GRAND201312-201705

main90942-01033iASU6#,AVU65,ZSU6#201312-201705

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAVU65,ZSU6#201312-201705

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAVU65,ZSU6#201312-201705

5 parts on this diagram · 3 diagrams in section
