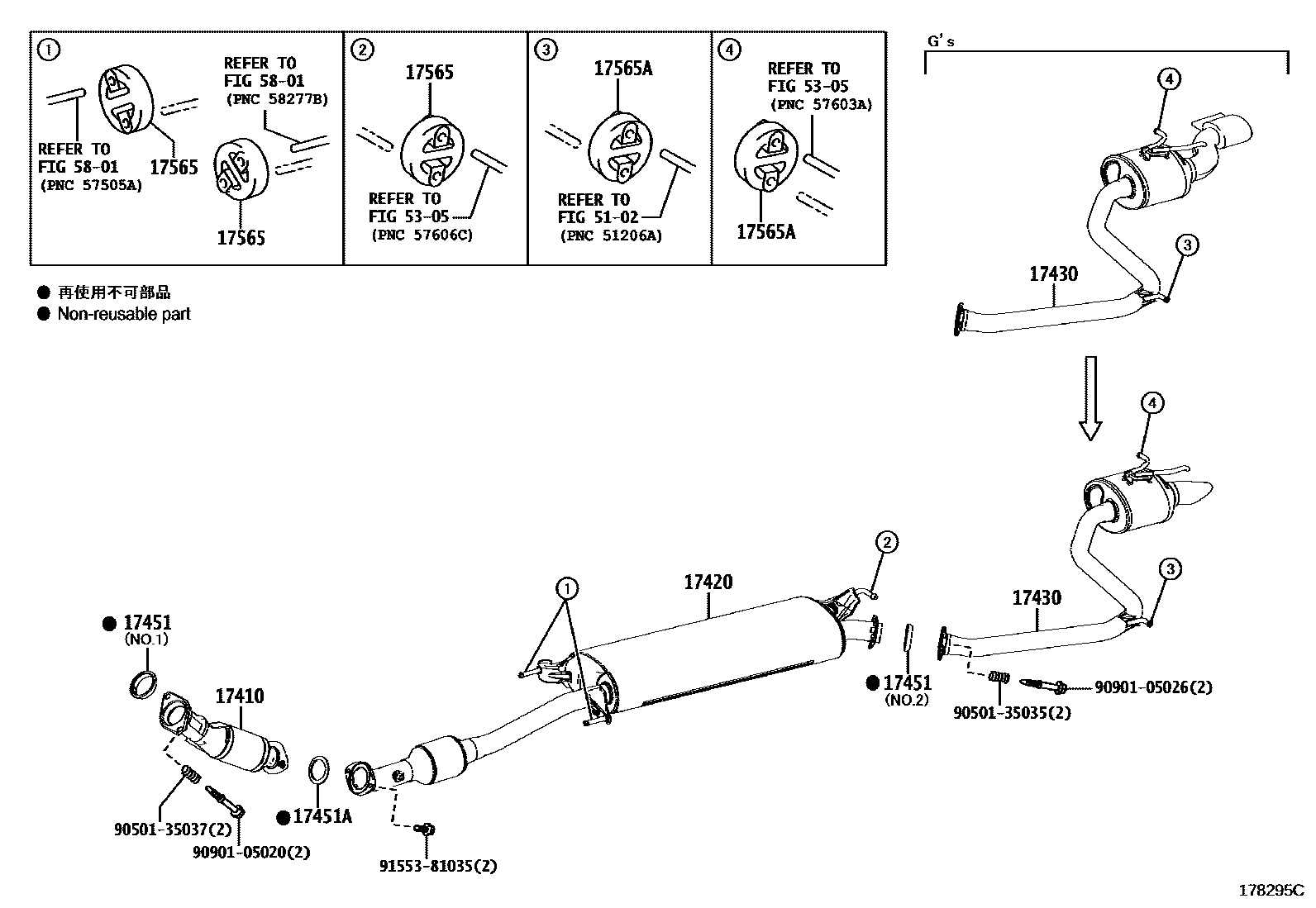

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-36040i8ARFTS..ASU6#201705

main17410-36380i2ARFXE..AVU65201401-201705

main17410-37820i3ZRFAE..ZSU6#201312-201705

17420PIPE ASSY, EXHAUST, CENTER

main17420-36200i2ARFXE..AVU65201401-201705

main17420-36300i8ARFTS..ASU6#201705

main17420-37200i3ZRFAE..ZSU6#201312-201705

main17420-WY010i3ZRFAE..ZSU6#..ELEGC201501-201705

main17420-WY010i3ZRFAE..ZSU6#..ELEGC201708

17430PIPE ASSY, EXHAUST, TAIL

main17430-36280i2ARFXE..AVU65201401-201705

main17430-36550i8ARFTS..ASU6#201705

main17430-36600i8ARFTS..ASU65..ELEGC201708

main17430-37560i3ZRFAE..ZSU6#201312-201705

main17430-WY100i3ZRFAE..ZSU6#..ELEGC201501-201705

main17430-WY100i3ZRFAE..ZSU6#..ELEGC201708

17451GASKET, EXHAUST PIPE

main17451-28022i2ARFXE,8ARFTS,3ZRFAE..ASU6#,AVU65,ZSU6#201312-201705

main17451-28040i2ARFXE,3ZRFAE..AVU65,ZSU6#201312-201705

sub17451-28041

main90917-06072i8ARFTS..ASU6#201705

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06070i8ARFTS..ASU6#201705

main90917-06072i2ARFXE..AVU65201401-201705

main90917-06078i3ZRFAE..ZSU6#201312-201705

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2ARFXE,3ZRFAE..AVU65,ZSU6#201312-201705

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22030i2ARFXE,3ZRFAE..AVU65,ZSU6#201312-201705

5102

5305

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155381035

main91553-81035

15 parts on this diagram · 3 diagrams in section
